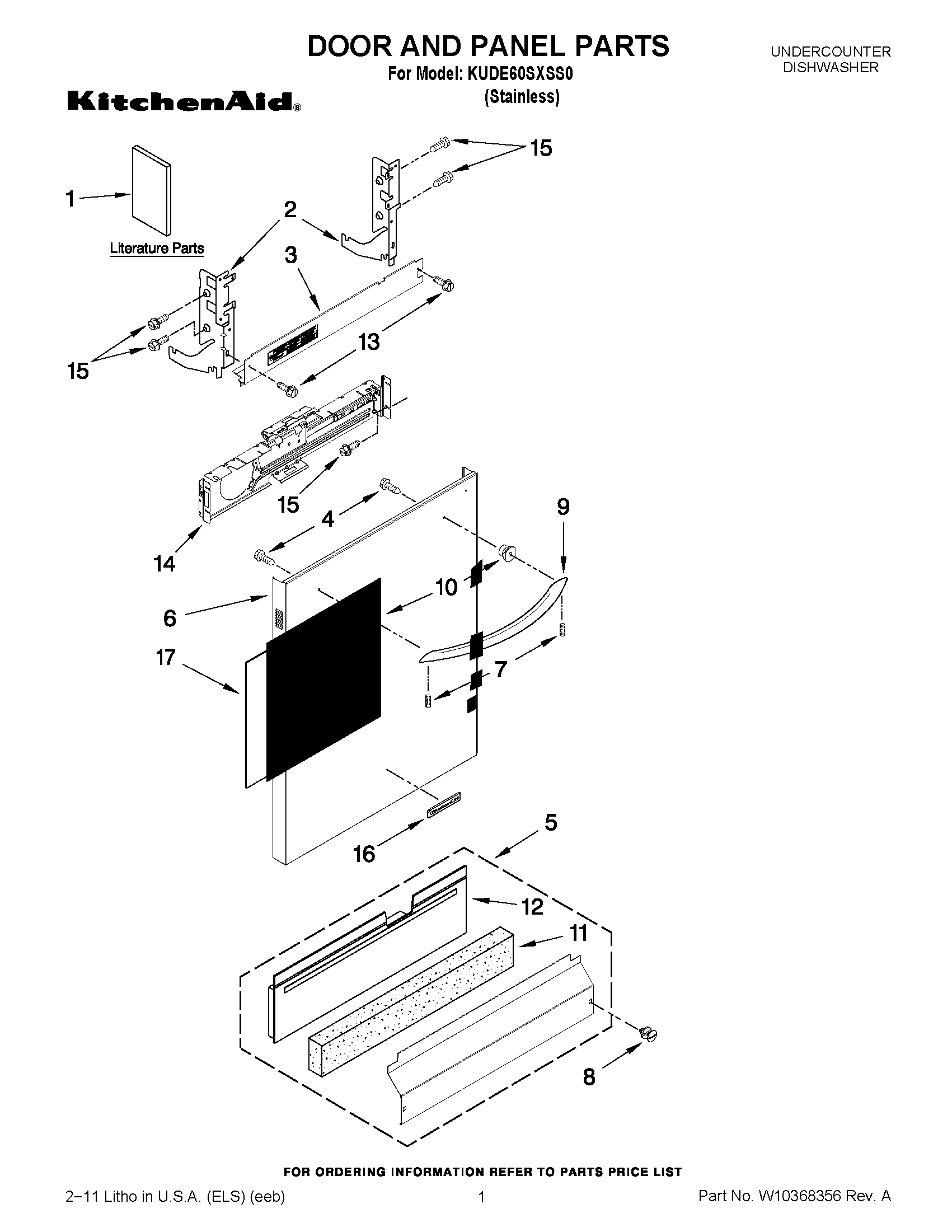

KUDE60SXSS0 01 – DOOR AND PANEL PARTS

KUDE60SXSS0 01 – DOOR AND PANEL PARTS

Written by

in

KUDE60SXSS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ACCESSORY KIT, WATER SOFTNER (INCLUDES HARDNESS TEST STRIP, SALT FUNNEL & INSTRUCTIONS)
1GUIDE, USE & CARE
1GUIDE, USE & CARE (SPANISH)
1TECH SHEET/FRENCH
1TECH SHEET/ENGLISH
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5WPW10526114 Whirlpool Dishwasher Access Panel
6WPW10195869 Whirlpool Control Panel
7WPW10307614 Whirlpool Dishwasher Screw
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9W10195738A Whirlpool Stainless Steel Door Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11SHIELD
13WP489069 Whirlpool Compactor Screw
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16WPW10243391 Whirlpool Refrigerator Nameplate
17W11126003 Whirlpool Dishwasher Insulation Pad
