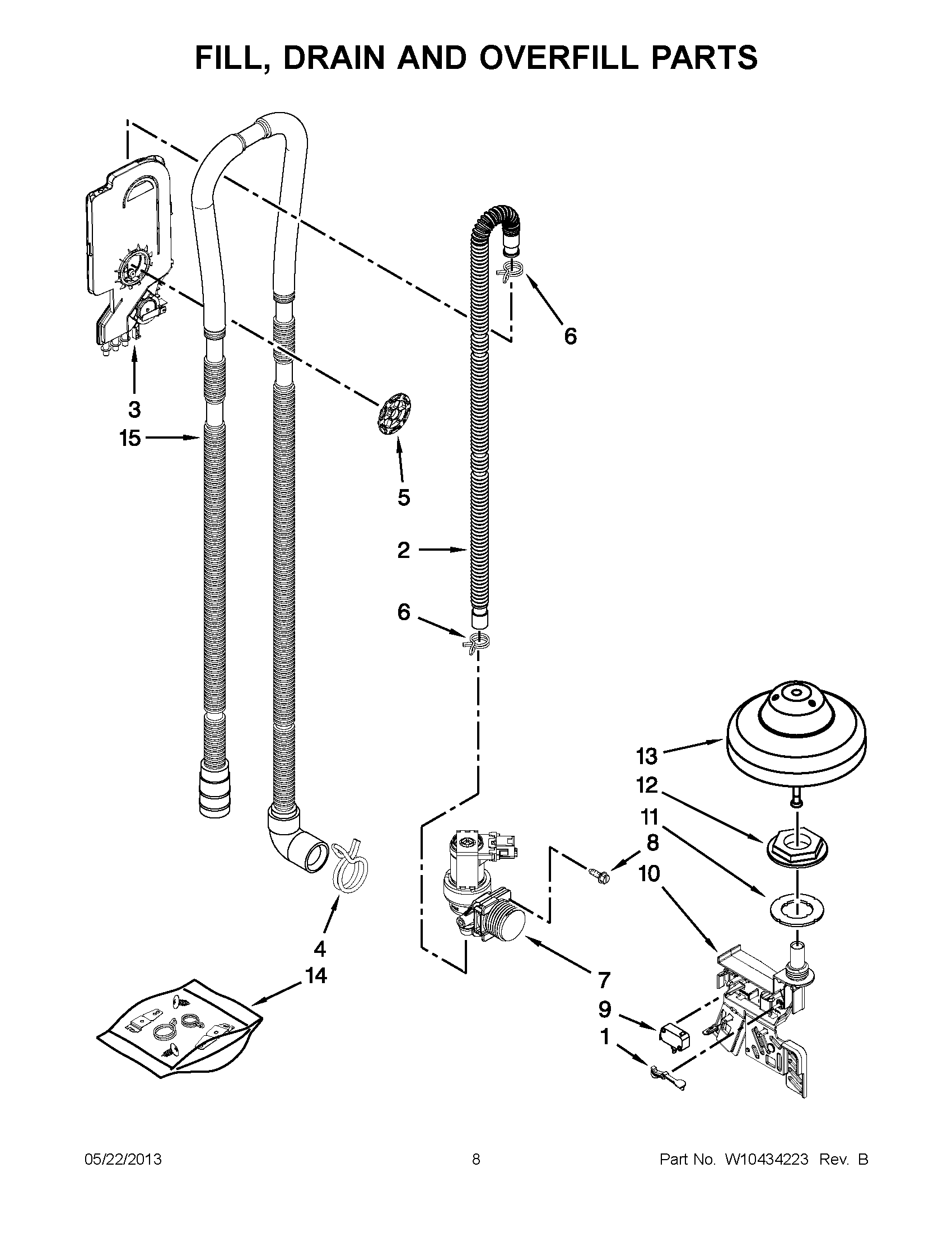

KUDE60SXSS2 04 – FILL, DRAIN AND OVERFILL PARTS

KUDE60SXSS2 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

KUDE60SXSS2 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1WPW10195037 Whirlpool Lever Assembly
2W10743461 Whirlpool Dishwasher Fill Hose
3WPW10458714 Whirlpool Dishwasher Regen Meter
4WP285655 Whirlpool Hose Clamp
5W11387338 Whirlpool Dishwasher Nut
6WP596669 Whirlpool Hose Clamp
7W11175767 Whirlpool Dishwasher Inlet Valve
8WP489069 Whirlpool Compactor Screw
9WPW10195039 Whirlpool Dishwasher Float Switch
10W10873429 Whirlpool Housing
11WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
12WPW10195038 Whirlpool Dishwasher Nut
13WPW10195036 Whirlpool Dishwasher Float
14WPW10292152 Whirlpool Hardware Kit
15WPW10358302 Whirlpool Dishwasher Drain Hose
