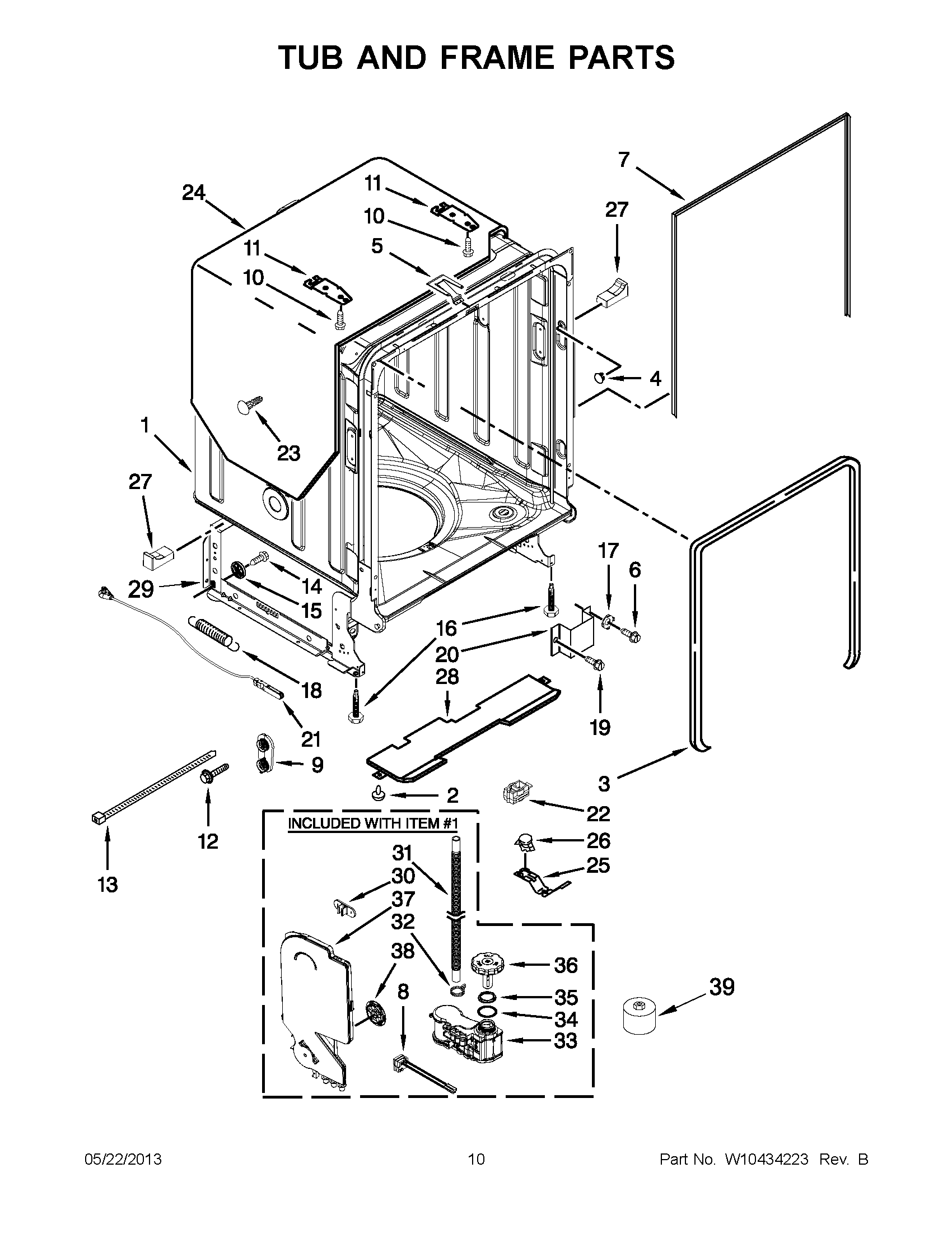

KUDE60SXSS2 05 – TUB AND FRAME PARTS
Written by
in
KUDE60SXSS2 05 – TUB AND FRAME PARTS
Products
Position
Product
1
WPW10511196 Whirlpool Dishwasher Tub
2
WP3400924 Whirlpool Dishwasher Retainer
3
W11177741 Whirlpool Dishwasher Door Gasket
4
W10795980 Whirlpool Cap
5
WPW10300779 Whirlpool Dishwasher Strike
6
WP3400014 Whirlpool Dishwasher Screw
7
SEAL
8
W10367058 Whirlpool Dishwasher Wire
9
WPW10084086 Whirlpool Dishwasher Mount
10
WP308685 Whirlpool Microwave Screw
11
WP8269145 Whirlpool Dishwasher Mounting Bracket
12
WP3400074 Whirlpool Dishwasher Screw
13
WPW10339879 Whirlpool Wire Tie
14
WPW10348411 Whirlpool Roller Wheel Screw
15
WP8268977 Whirlpool Dishwasher Wheel
16
8193716 Whirlpool Leveling Leg
17
WP3378128 Whirlpool Dishwasher Washer
18
SPRING
19
WP3400892 Whirlpool Dishwasher Screw
20
WP8268991 Whirlpool Dishwasher Cover Assembly
21
8194001 Whirlpool Dishwasher Door Balance Link Kit
22
W10292870 Whirlpool Dishwasher Housing
23
WP304666 Whirlpool Dishwasher Retainer
24
W10877094 Whirlpool Shield
25
W10300703 Whirlpool Dishwasher Bracket Stat
26
WPW10195091 Whirlpool Thermostat
27
W10195631 Whirlpool Dishwasher Tank Spacer
27
W10195630 Whirlpool Dishwasher Spacer
28
WPW10746770 Whirlpool Insulation Pad
29
WPW10398392 Whirlpool Dishwasher Support
30
W10330864 Whirlpool Clip
31
W10346255 Whirlpool Dishwasher Drain Hose
32
WP596669 Whirlpool Hose Clamp
33
TANK, SOFTENER
34
GASKET
35
WPW10195058 Whirlpool Dishwasher Tube Nut
36
W10327489 Whirlpool Dishwasher Cap
37
WPW10458714 Whirlpool Dishwasher Regen Meter
38
W11387338 Whirlpool Dishwasher Nut
39
SOCKET, TANK NUT
←
