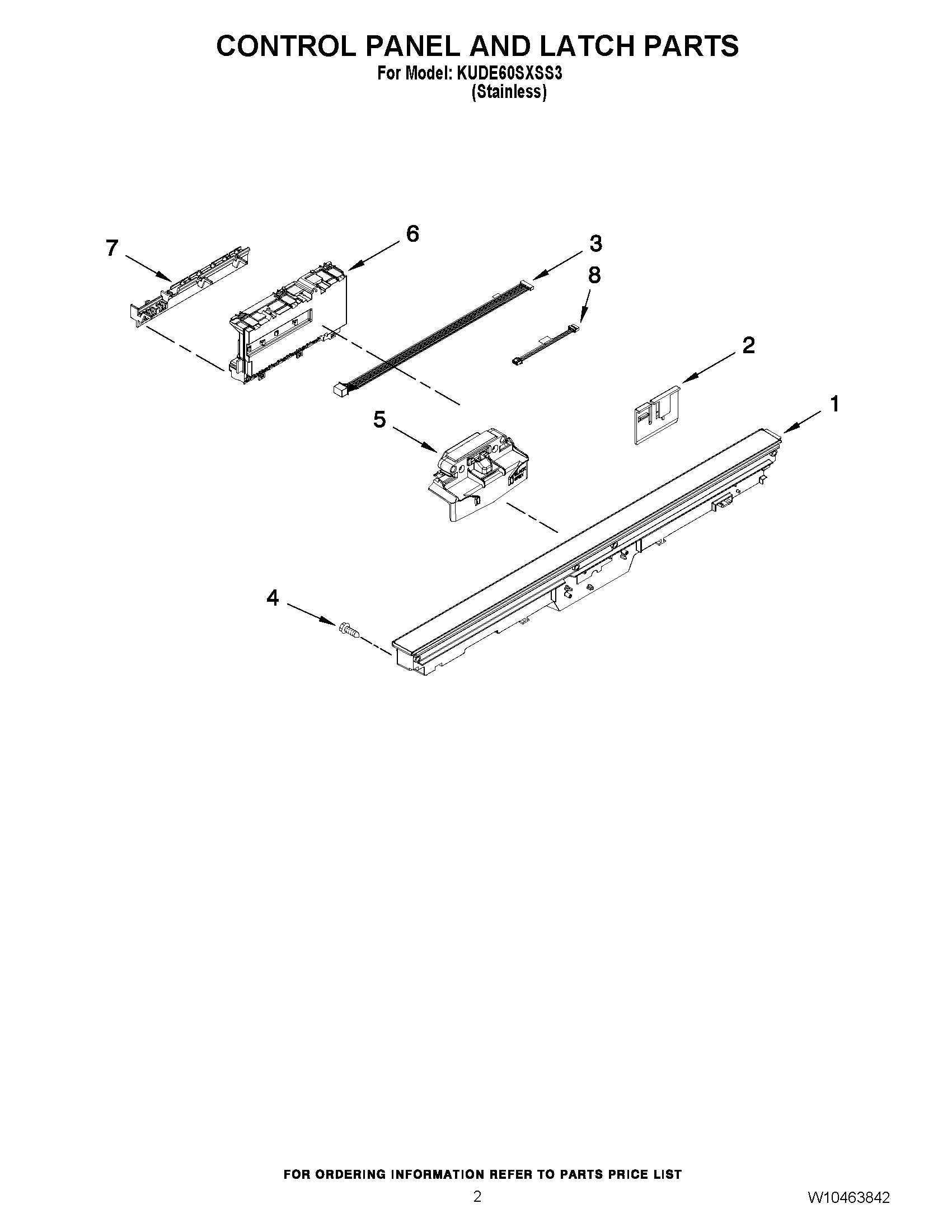

KUDE60SXSS3 02 – CONTROL PANEL AND LATCH PARTS

KUDE60SXSS3 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDE60SXSS3 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10481141 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3WPW10195204 Whirlpool Dishwasher Wire
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6CONTROL, ELECTRONIC
7WPW10194937 Whirlpool Dishwasher Control Bracket
8WPW10195666 Whirlpool Dishwasher Wire Assembly
