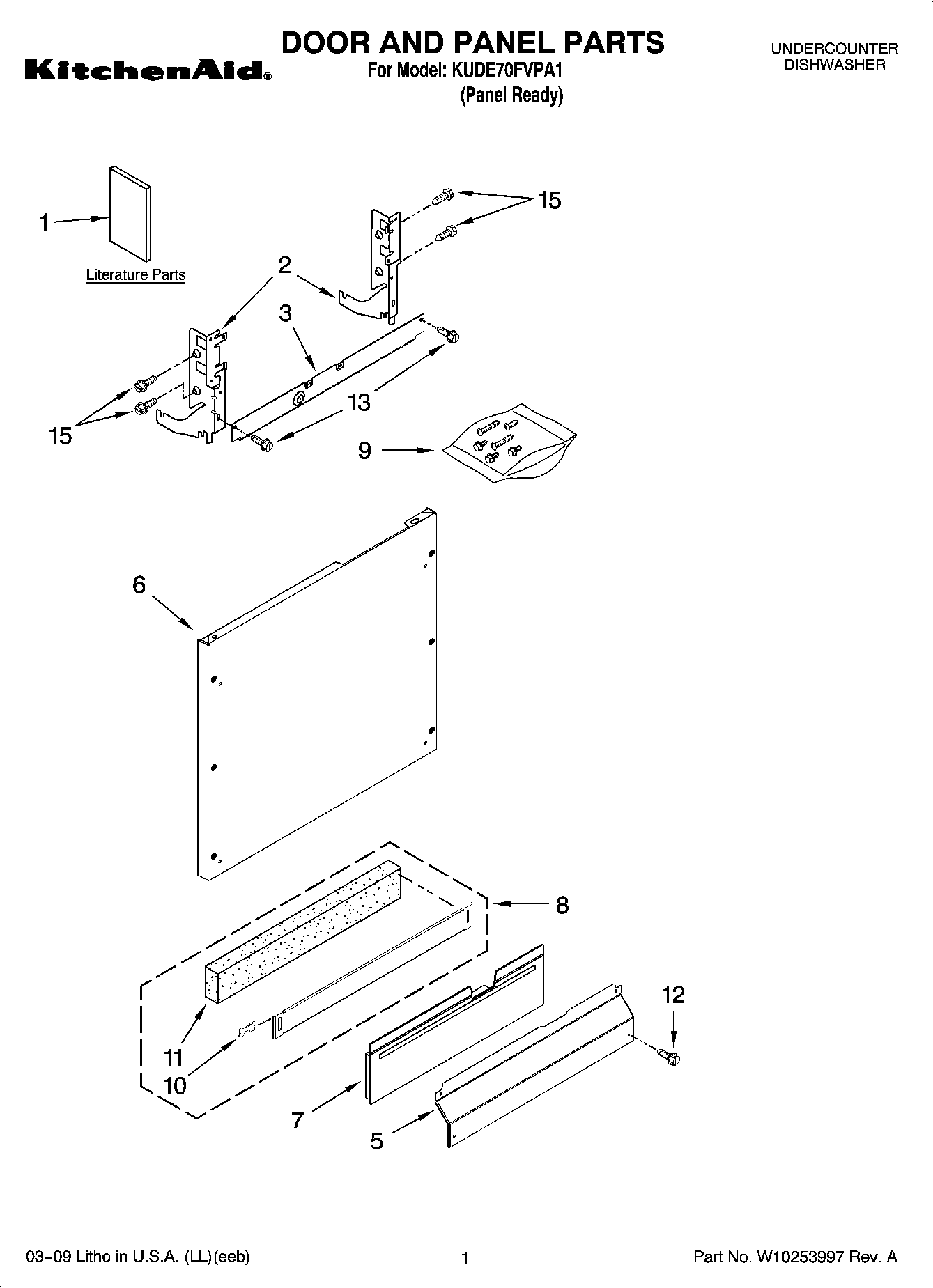

KUDE70FVPA1 01 – DOOR AND PANEL PARTS

KUDE70FVPA1 01 – DOOR AND PANEL PARTS

Written by

in

KUDE70FVPA1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1TECH SHEET (ENGLISH)
1TECH SHEET (FRENCH)
1Guide, Use & Care English
1GUIDE, USE & CARE (SPANISH)
1INSTRUCTIONS, INSTALLATION
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
6W11113792 Whirlpool Dishwasher Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
9Screws, Bag Door Assembly
10WP8269016 Whirlpool Clip Assembly
11SHIELD
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
