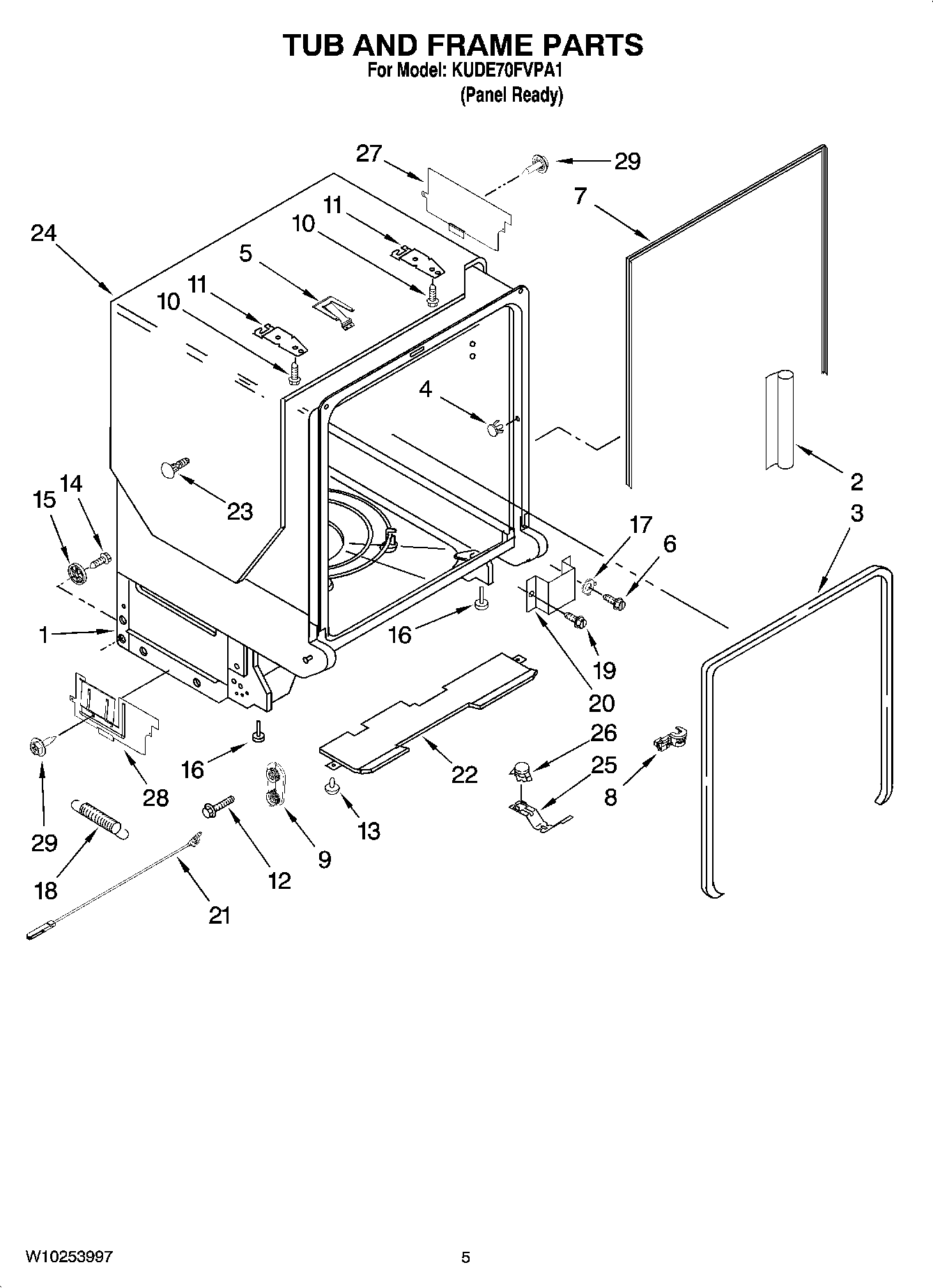

KUDE70FVPA1 05 – TUB AND FRAME PARTS

Products

Position	Product
1	Tub Assembly (Also Includes Heater Assembly)
2	Barrier, Moisture Undercounter
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	Strike, Latch
6	WP3400014 Whirlpool Dishwasher Screw
7	SEAL
8	W11384788 Whirlpool Dishwasher Relief Strainer
9	WPW10084086 Whirlpool Dishwasher Mount
10	WP308685 Whirlpool Microwave Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	WP3400074 Whirlpool Dishwasher Screw
14	Screw (2)
15	WP8268977 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
17	WP3378128 Whirlpool Dishwasher Washer
18	SPRING
19	WP3400892 Whirlpool Dishwasher Screw
20	WP8268991 Whirlpool Dishwasher Cover Assembly
21	8194001 Whirlpool Dishwasher Door Balance Link Kit
22	WPW10746770 Whirlpool Insulation Pad
23	WP304666 Whirlpool Dishwasher Retainer
24	W10877094 Whirlpool Shield
25	9742648 Whirlpool Dishwasher Stat Bracket
26	WP661566 Whirlpool High Limit Thermostat
27	Panel, Right Side
28	Panel, Left Side
29	WP3400924 Whirlpool Dishwasher Retainer
