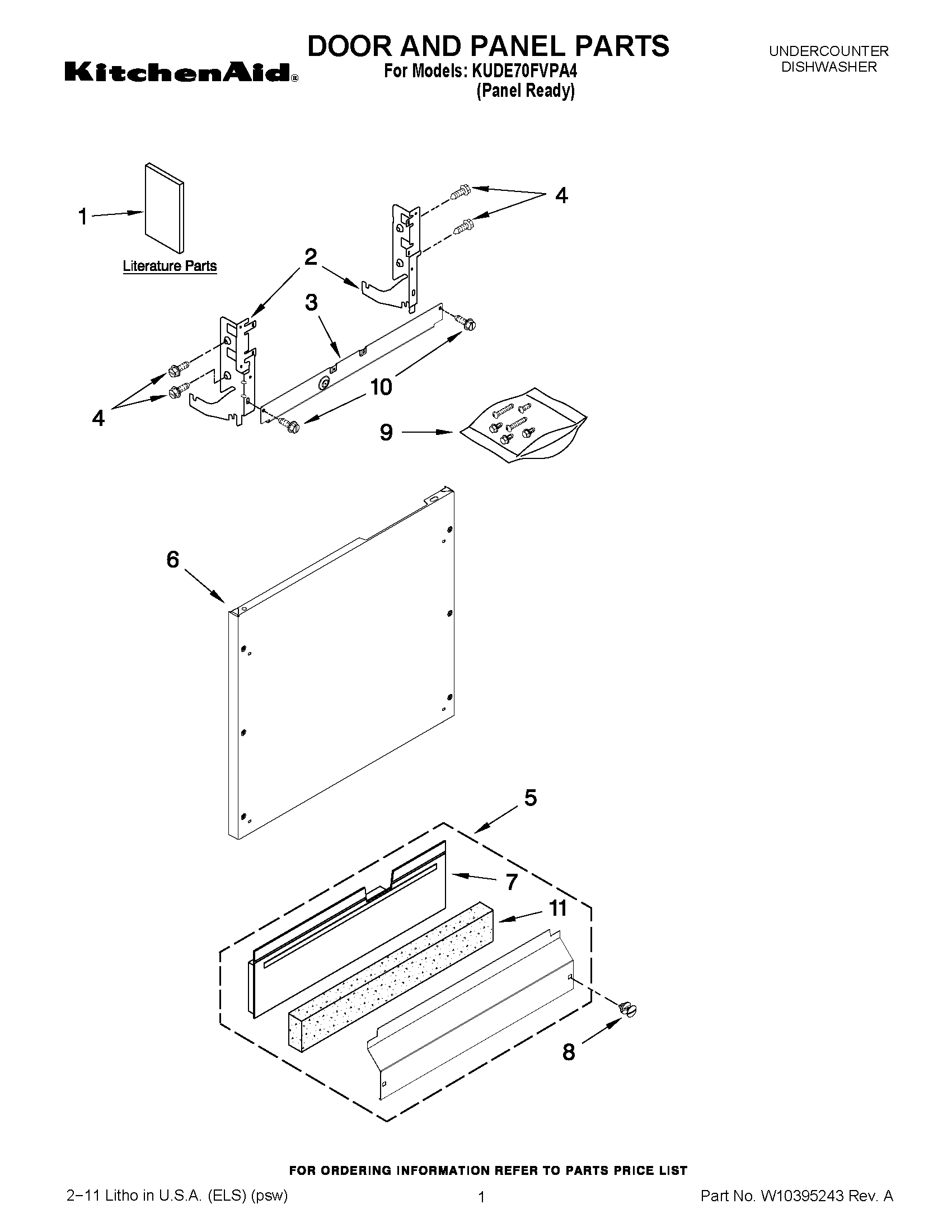

KUDE70FVPA4 01 – DOOR AND PANEL PARTS

KUDE70FVPA4 01 – DOOR AND PANEL PARTS

Written by

in

KUDE70FVPA4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1GUIDE, USE & CARE SPANISH
1GUIDE, USE & CARE ENGLISH/FRENCH
1TECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4WP3400071 Whirlpool Screw
5WPW10526114 Whirlpool Dishwasher Access Panel
6W11113792 Whirlpool Dishwasher Panel
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9Screws, Bag Door Assembly
10WP489069 Whirlpool Compactor Screw
11SHIELD
