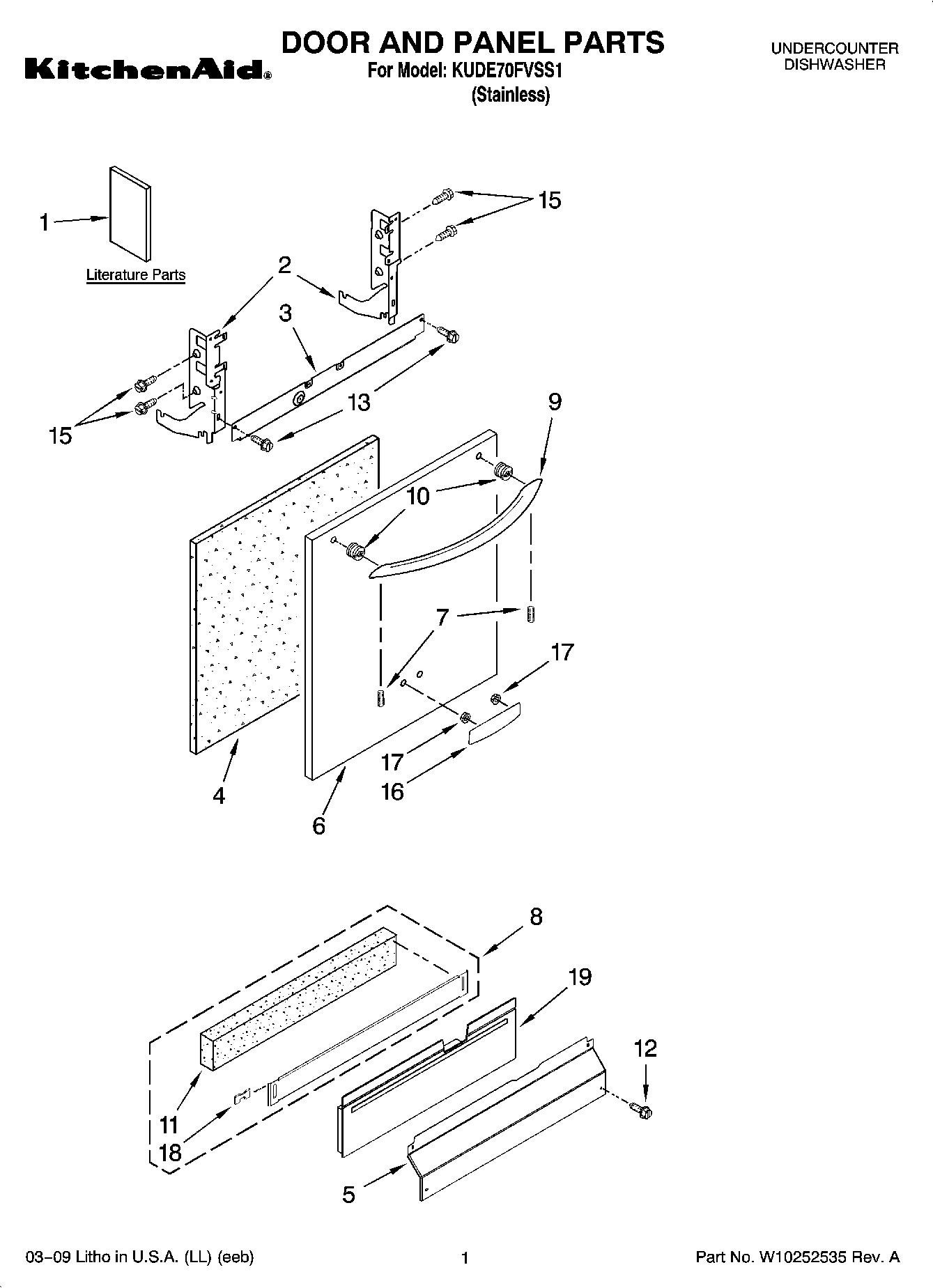

KUDE70FVSS1 01 – DOOR AND PANEL PARTS

KUDE70FVSS1 01 – DOOR AND PANEL PARTS

Written by

in

KUDE70FVSS1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1TECH SHEET (ENGLISH)
1TECH SHEET (FRENCH)
1Guide, Use & Care English
1GUIDE, USE & CARE (SPANISH)
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
6Panel, Full Front (Includes Items 4, 10, 11 & 14) (Stainless)
7WP8534008 Whirlpool Screw
8W10909064 Whirlpool Dishwasher Black Access Panel
9W10195738A Whirlpool Stainless Steel Door Handle
10WP8564951 Whirlpool Dishwasher Stud
11SHIELD
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
16W10021850 Whirlpool Dishwasher Nameplate
17WP2004333 Whirlpool Refrigerator Nut
18WP8269016 Whirlpool Clip Assembly
