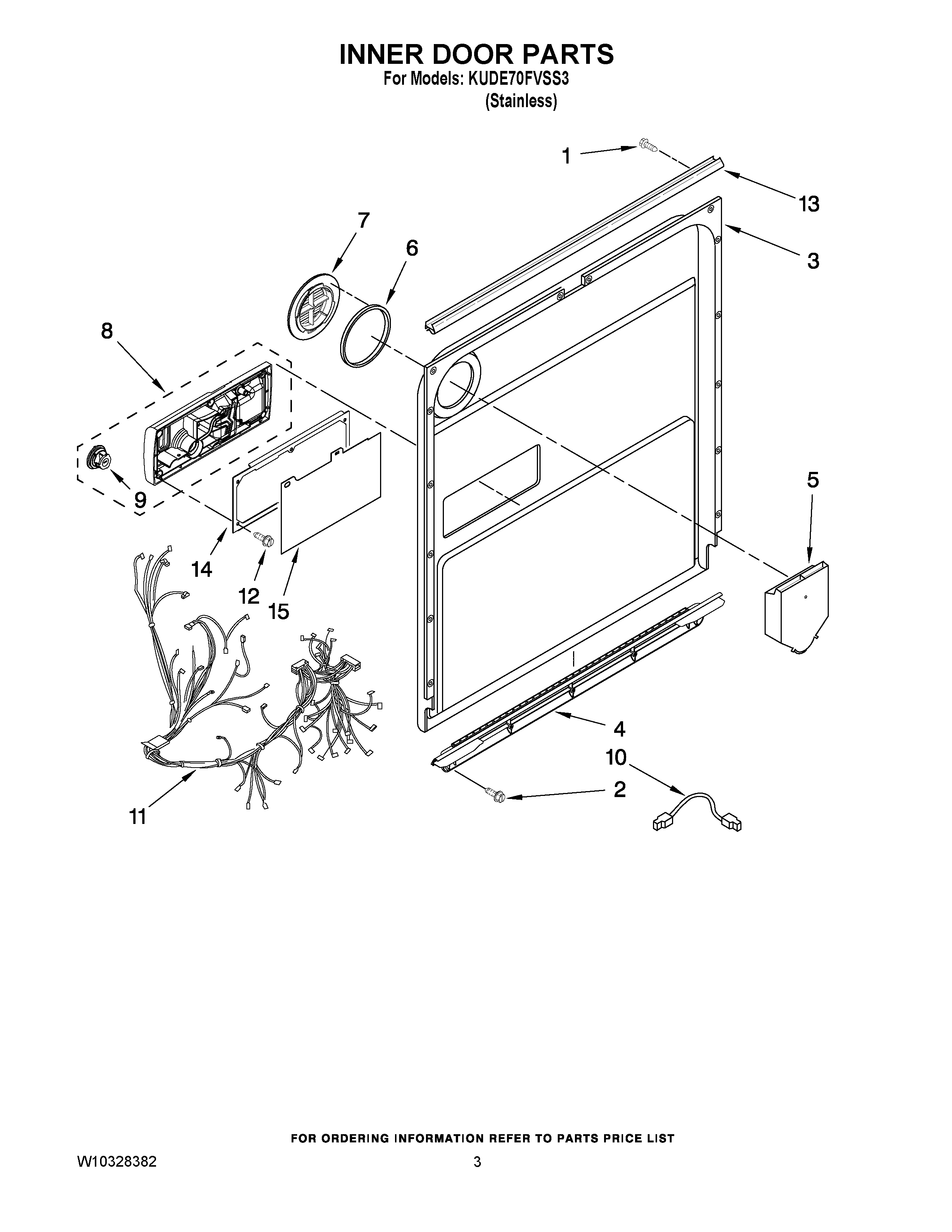

KUDE70FVSS3 03 – INNER DOOR PARTS

Products

Position	Product
1	WPW10348413 Whirlpool Dishwasher Screw
2	W11631670 Whirlpool Screw
3	Inner Door Mastic Assembly (Also Order Item 6)
4	WPW10077883 Whirlpool Dishwasher Air Inlet
5	WP8572611 Whirlpool Air Duct Assembly
6	WP8269259 Whirlpool Air Vent Gasket
7	WPW10077877 Whirlpool Air Vent Deflector
8	WPW10195175 Whirlpool Dishwasher Detergent Dispenser
9	WPW10077881 Whirlpool Dispenser Cap
10	Harness, Vent Motor
11	W10413104 Whirlpool Dishwasher Wire Harness
12	WPW10177098 Whirlpool Dishwasher Screw
13	WP8535660 Whirlpool Dishwasher Seal
14	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
15	WP8531865 Whirlpool Dishwasher Door Shield
