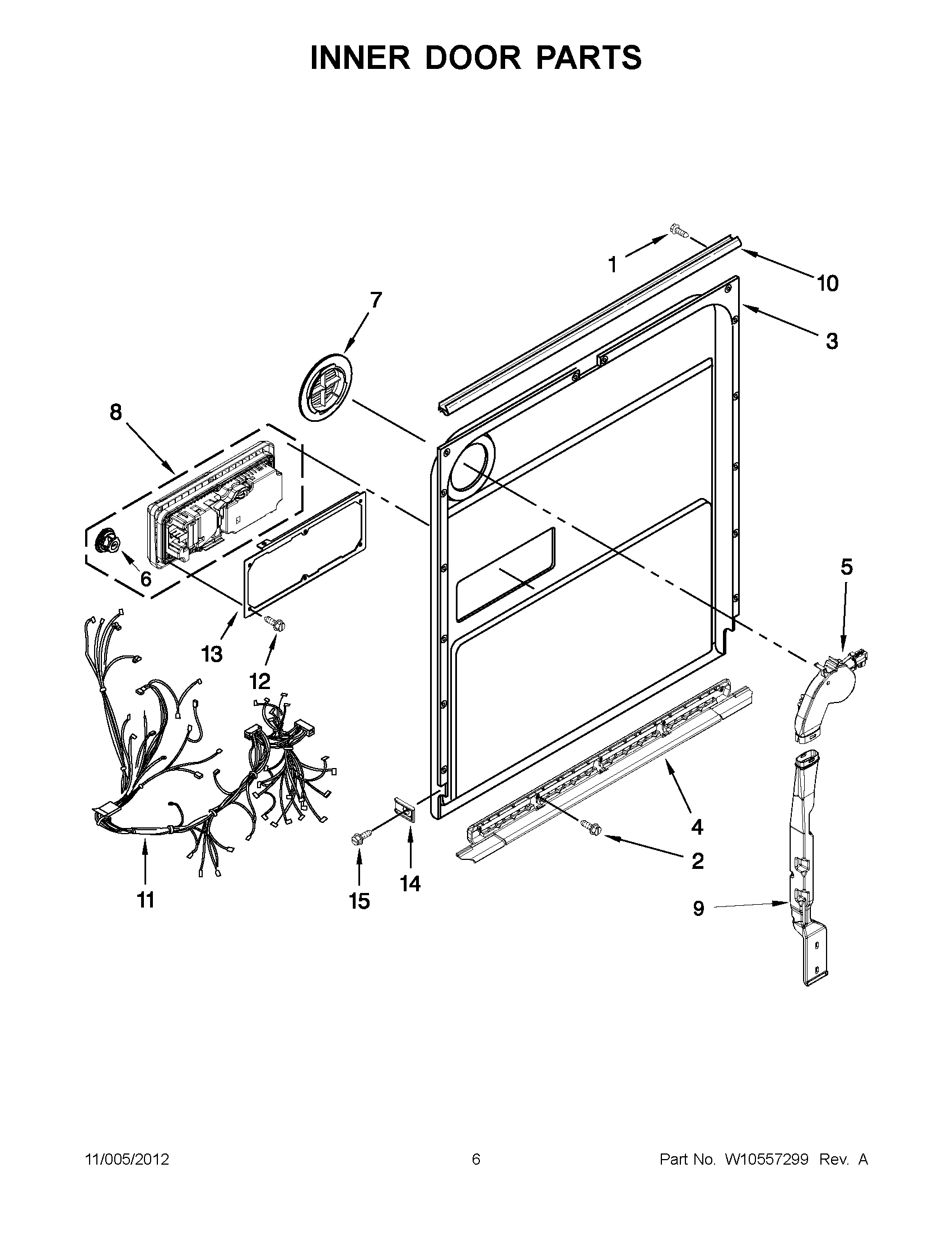

KUDE70FXBL5 03 – INNER DOOR PARTS

KUDE70FXBL5 03 – INNER DOOR PARTS

Written by

in

KUDE70FXBL5 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10467367 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WPW10469574 Whirlpool Dishwasher Vent
6WPW10524920 Whirlpool Dishwasher Rinse Aid Dispenser Cap
7WPW10195032 Whirlpool Dishwasher Deflector
8DISPENSER (DISHWASHER)
9WPW10195028 Whirlpool Dishwasher Vent
10WPW10195007 Whirlpool Dishwasher Seal
11W10861608 Whirlpool Dishwasher Wire Harness
12WPW10177098 Whirlpool Dishwasher Screw
13WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
14W10195837 Whirlpool Dishwasher Barrier
15WP3400071 Whirlpool Screw
