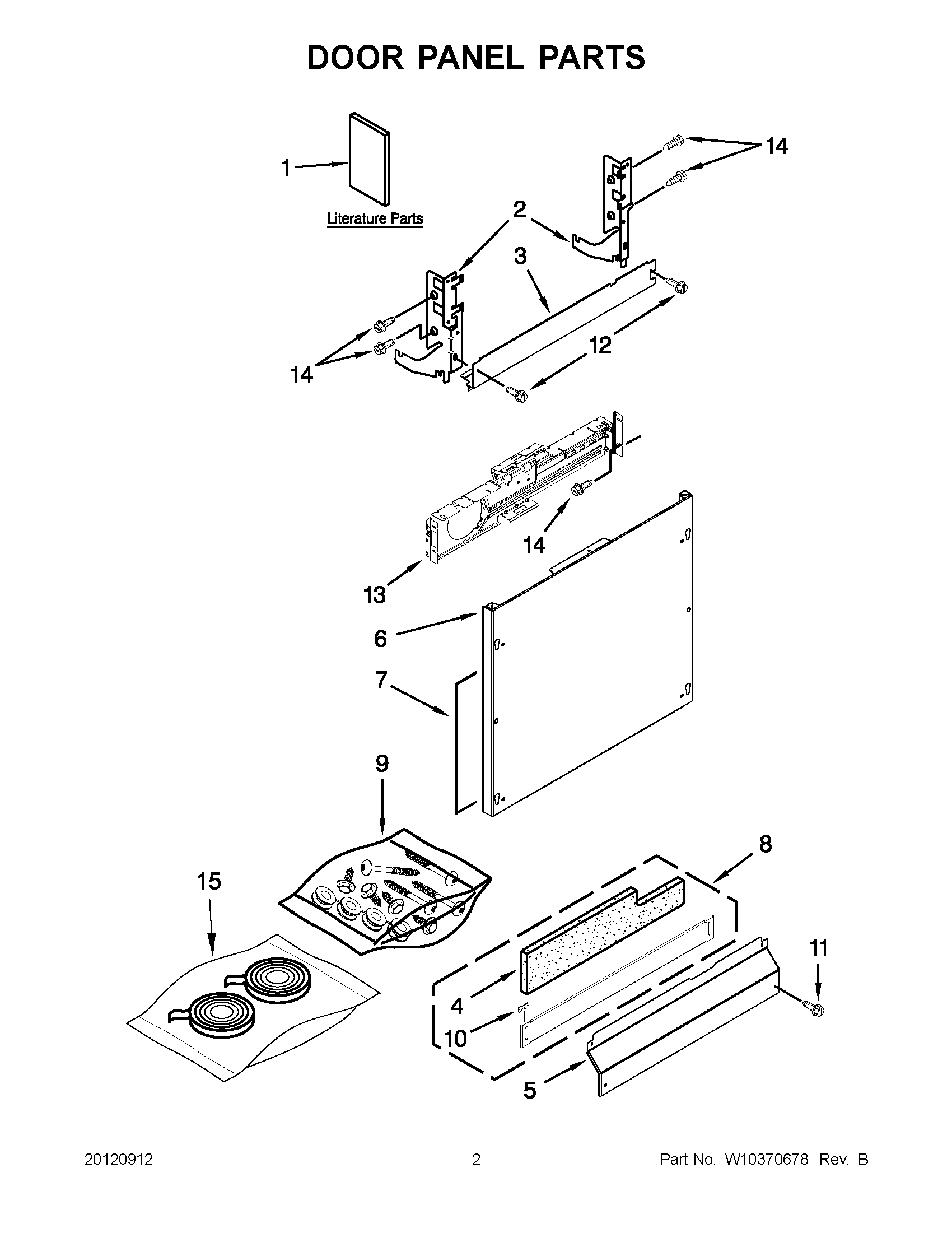

KUDE70FXPA0 01 – DOOR PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	INSTRUCTIONS, INSTALLATION
1	TECH SHEET/ENGLISH
1	TEMPLATE, 6" CUSTOM PANEL
1	TECH SHEET/FRENCH
1	GUIDE, USE & CARE (SPANISH)
1	GUIDE, USE & CARE (SPANISH)
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	SHIELD
6	W11113792 Whirlpool Dishwasher Panel
7	W10234565 Whirlpool Dishwasher Insulation Pad
8	W10909064 Whirlpool Dishwasher Black Access Panel
9	WPW10637074 Whirlpool Dishwasher Miscellaneous Parts
10	WP8269016 Whirlpool Clip Assembly
11	WP302868 Whirlpool Screw
12	WP3390631 Whirlpool Screw
13	W11116870 Whirlpool Dishwasher Control Bracket
14	WP3400071 Whirlpool Screw
15	WPW10366978 Whirlpool Dishwasher Seal
