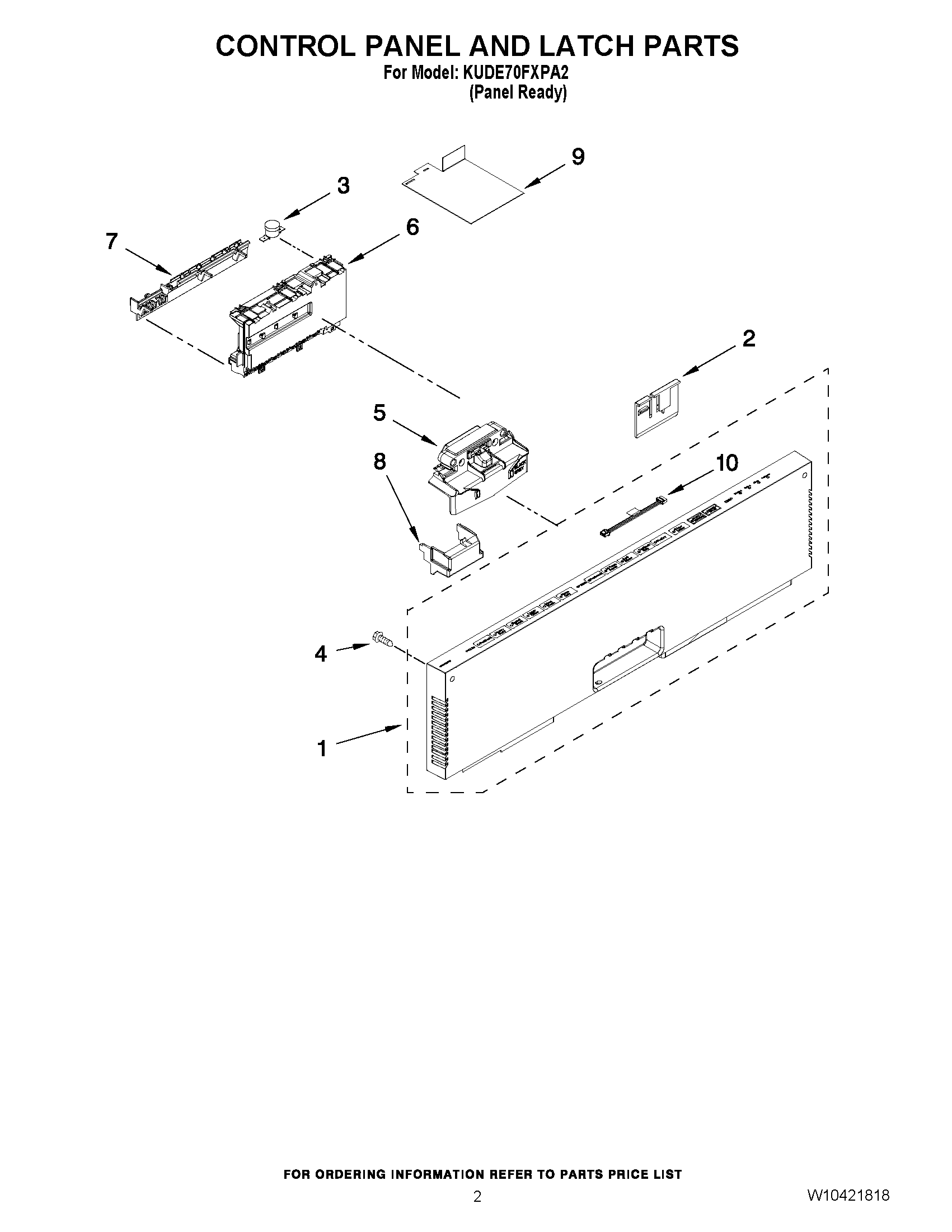

KUDE70FXPA2 02 – CONTROL PANEL AND LATCH PARTS

KUDE70FXPA2 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDE70FXPA2 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10481151 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10402110 Whirlpool Dishwasher Bi-Metal Thermal Cut-Off Fuse
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6CONTROL, ELECTRONIC
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10783730 Whirlpool Dishwasher Connector
9W10355484 Whirlpool Cover
10W10315814 Whirlpool Dishwasher Wire Harness
