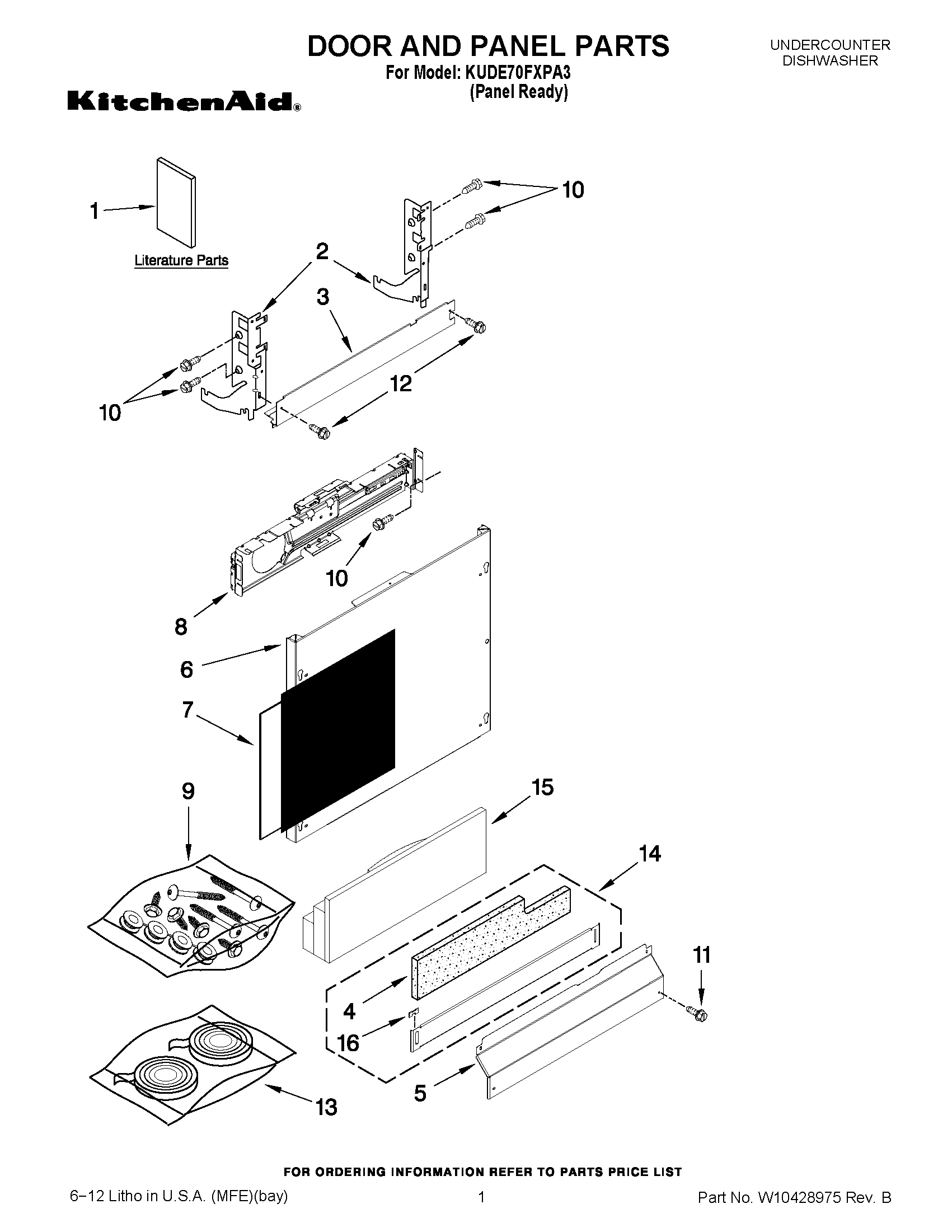

KUDE70FXPA3 01 – DOOR AND PANEL PARTS

KUDE70FXPA3 01 – DOOR AND PANEL PARTS

Written by

in

KUDE70FXPA3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1GUIDE, USE & CARE (SPANISH)
1TECH SHEET/FRENCH
1TECH SHEET/ENGLISH
1GUIDE, USE & CARE (SPANISH)
1TEMPLATE, 6" CUSTOM PANEL
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
6W11113792 Whirlpool Dishwasher Panel
7W10234565 Whirlpool Dishwasher Insulation Pad
8W11116870 Whirlpool Dishwasher Control Bracket
9WPW10637074 Whirlpool Dishwasher Miscellaneous Parts
10WP3400071 Whirlpool Screw
11WP302868 Whirlpool Screw
12WP3390631 Whirlpool Screw
13WPW10366978 Whirlpool Dishwasher Seal
14W10909064 Whirlpool Dishwasher Black Access Panel
15SHIELD
16WP8269016 Whirlpool Clip Assembly
