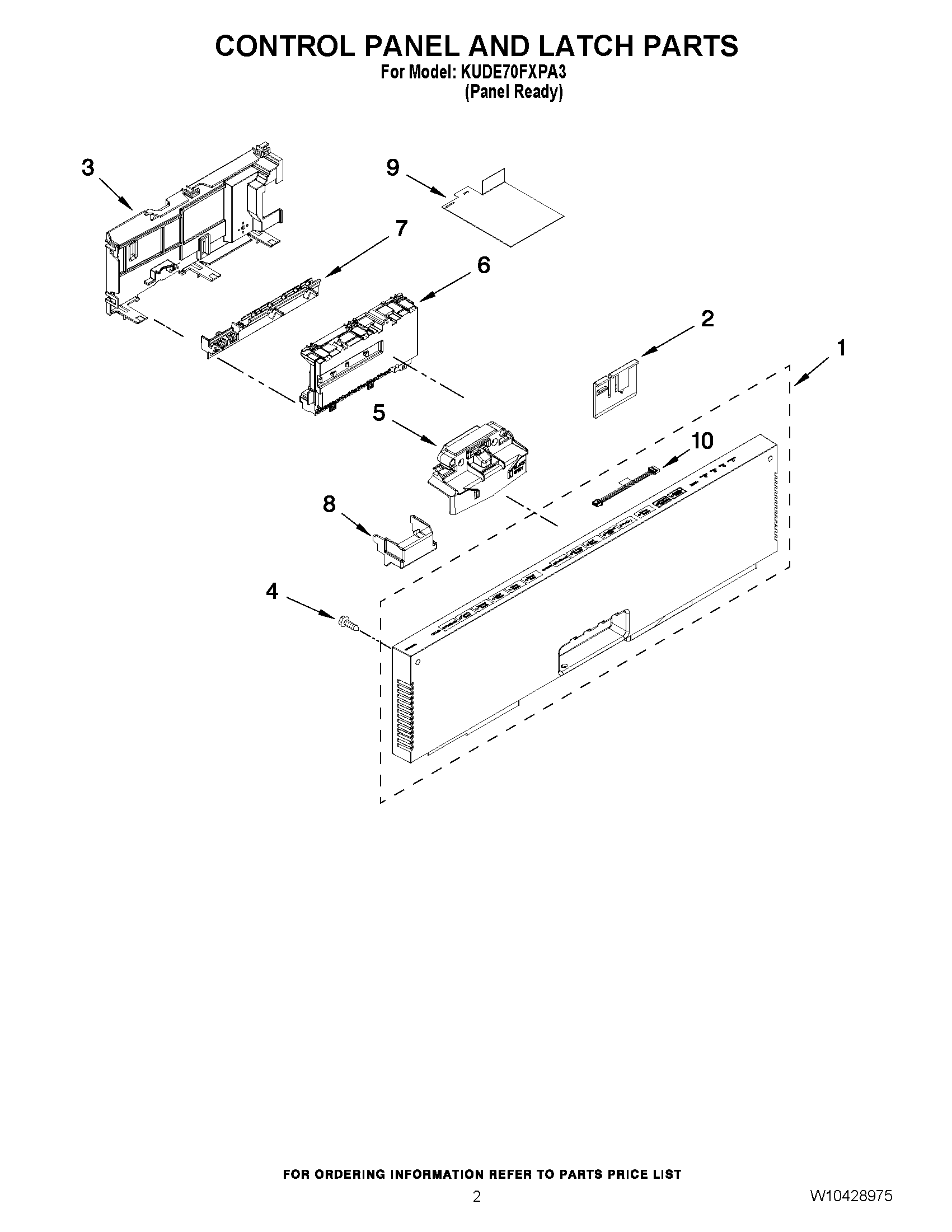

KUDE70FXPA3 02 – CONTROL PANEL AND LATCH PARTS

KUDE70FXPA3 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDE70FXPA3 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10481151 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3COVER CONTROL SHIELD ASSEMBLY
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6W10473197 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10783730 Whirlpool Dishwasher Connector
9W10355484 Whirlpool Cover
10W10315814 Whirlpool Dishwasher Wire Harness
