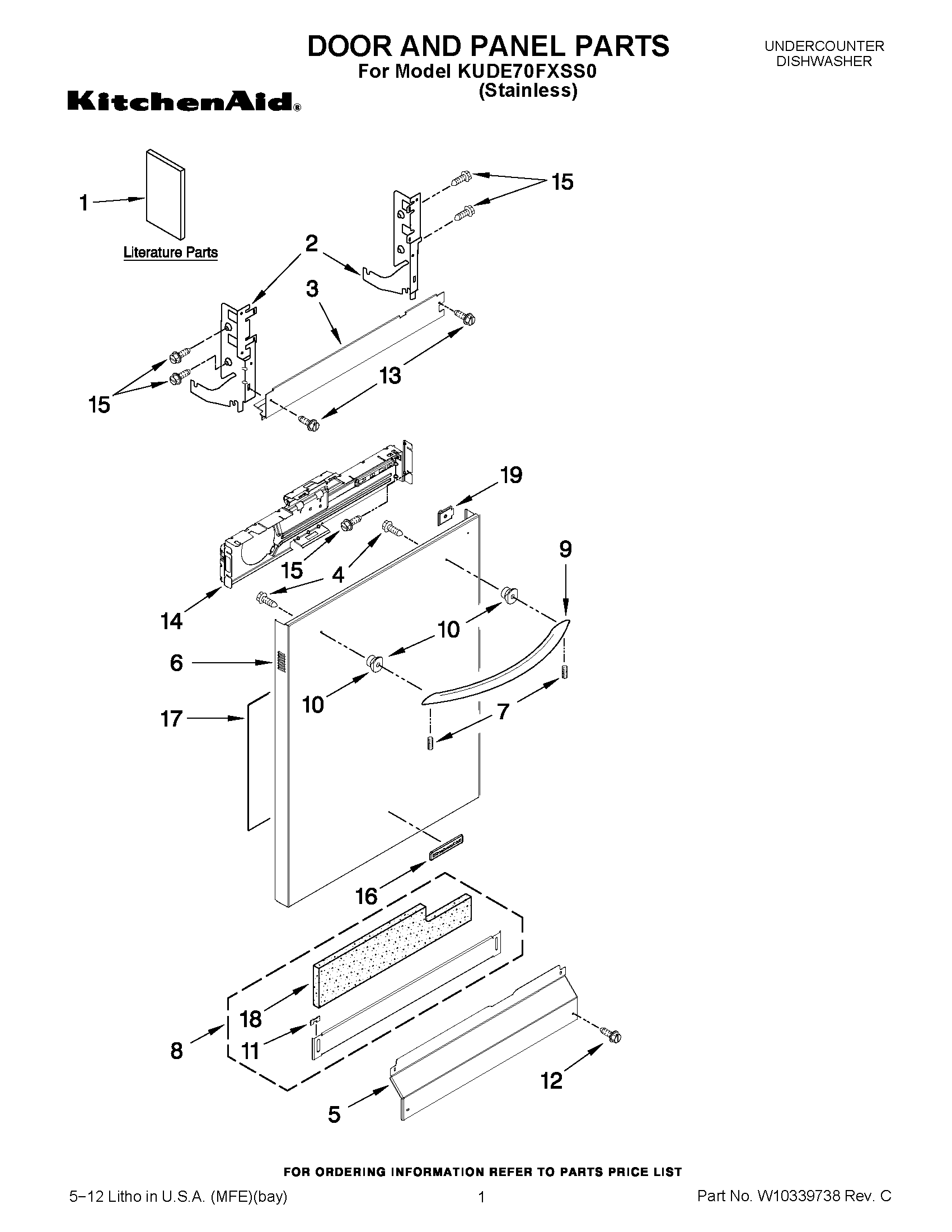

KUDE70FXSS0 01 – DOOR AND PANEL PARTS

KUDE70FXSS0 01 – DOOR AND PANEL PARTS

Written by

in

KUDE70FXSS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1INSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE (SPANISH)
1TECH SHEET/ENGLISH
1TECH SHEET/FRENCH
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
6WPW10195870 Whirlpool Door Outer Panel
7WPW10307614 Whirlpool Dishwasher Screw
8W10909064 Whirlpool Dishwasher Black Access Panel
9W10195738A Whirlpool Stainless Steel Door Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11WP8269016 Whirlpool Clip Assembly
12WP302868 Whirlpool Screw
13WP3390631 Whirlpool Screw
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16WPW10243391 Whirlpool Refrigerator Nameplate
17W11126003 Whirlpool Dishwasher Insulation Pad
18SHIELD
19W10319007 Whirlpool Dishwasher Indicator Light
