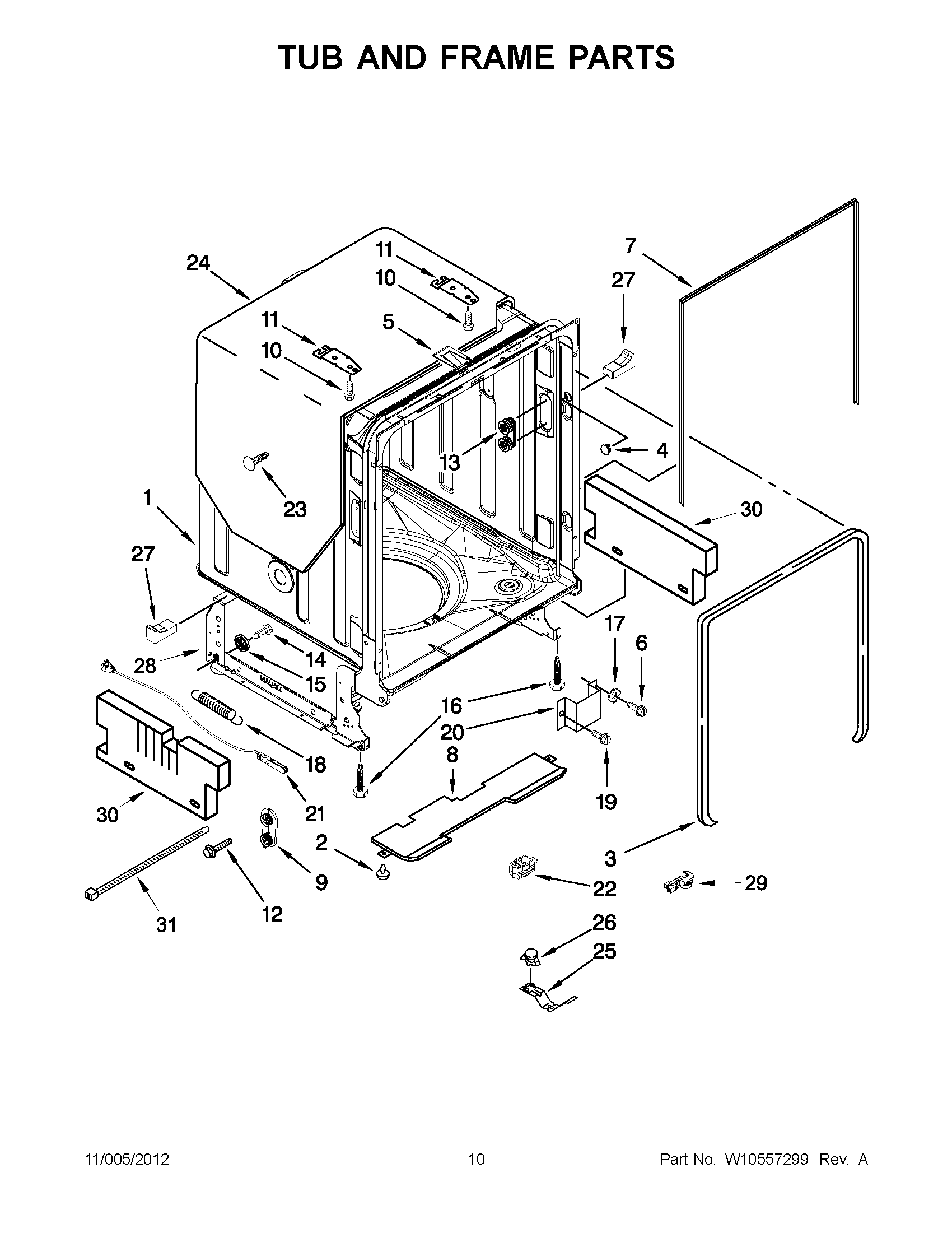

KUDE70FXSS5 05 – TUB AND FRAME PARTS

KUDE70FXSS5 05 – TUB AND FRAME PARTS

Written by

in

KUDE70FXSS5 05 – TUB AND FRAME PARTS

Products

PositionProduct
1WPW10511198 Whirlpool Dishwasher Tub
2WP3400924 Whirlpool Dishwasher Retainer
3W11177741 Whirlpool Dishwasher Door Gasket
4W10795980 Whirlpool Cap
5WPW10300779 Whirlpool Dishwasher Strike
6WP3400014 Whirlpool Dishwasher Screw
7SEAL
8W11747584 Whirlpool Insulation Pad
10WP308685 Whirlpool Microwave Screw
11WP8269145 Whirlpool Dishwasher Mounting Bracket
12WP3400074 Whirlpool Dishwasher Screw
13WPW10084086 Whirlpool Dishwasher Mount
14WPW10348411 Whirlpool Roller Wheel Screw
15WP8268977 Whirlpool Dishwasher Wheel
168193716 Whirlpool Leveling Leg
17WP3378128 Whirlpool Dishwasher Washer
18SPRING
19WPW10277003 Whirlpool Screw
20WP8268991 Whirlpool Dishwasher Cover Assembly
218194001 Whirlpool Dishwasher Door Balance Link Kit
22W10292870 Whirlpool Dishwasher Housing
23WP304666 Whirlpool Dishwasher Retainer
24W10877094 Whirlpool Shield
25W10300703 Whirlpool Dishwasher Bracket Stat
26WPW10195091 Whirlpool Thermostat
27W10195630 Whirlpool Dishwasher Spacer
27W10195631 Whirlpool Dishwasher Tank Spacer
28WPW10398392 Whirlpool Dishwasher Support
29STRAIN RELIEF
30SHIELD, SIDE TUB
31Strap
