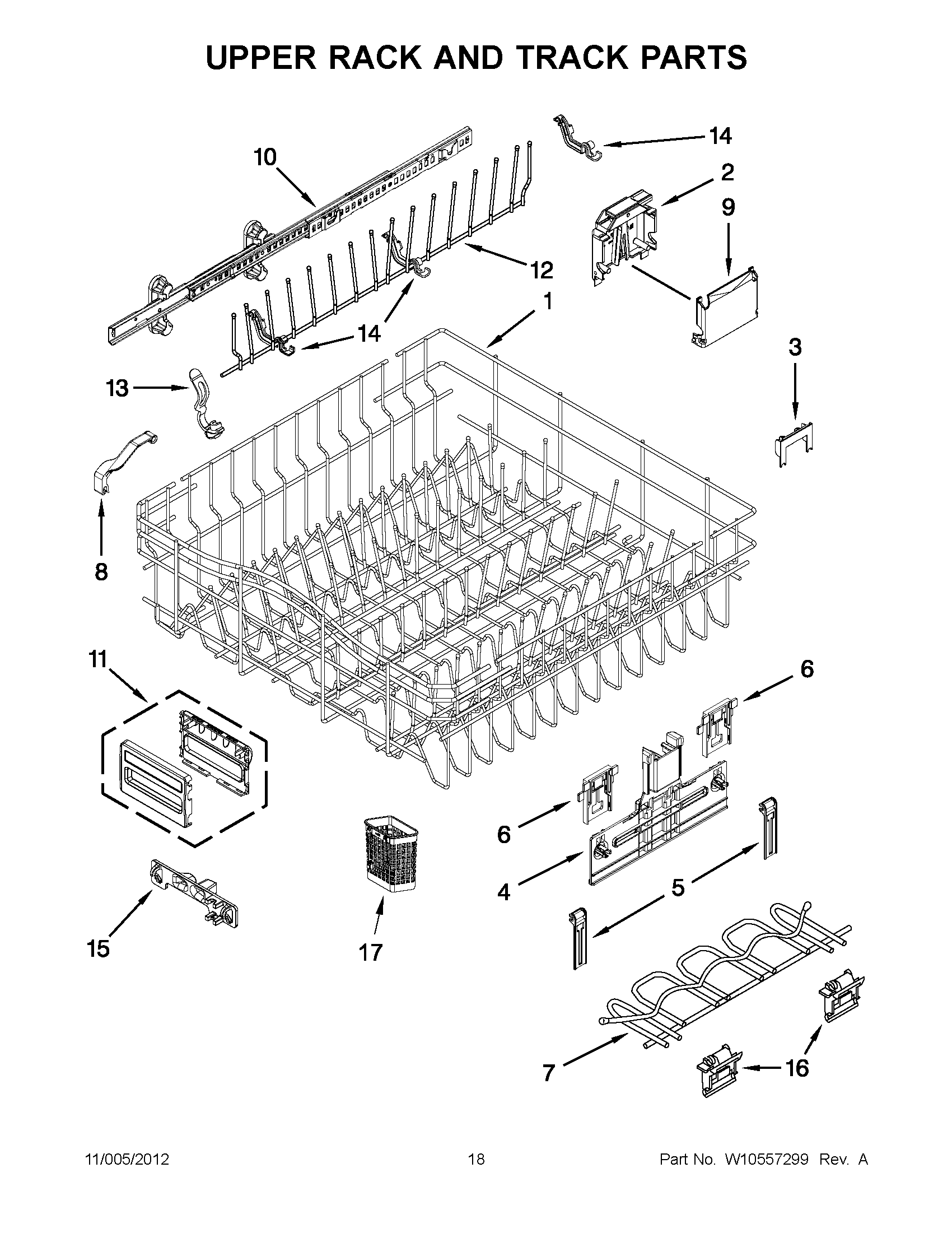

KUDE70FXSS5 09 – UPPER RACK AND TRACK PARTS

KUDE70FXSS5 09 – UPPER RACK AND TRACK PARTS

Written by

in

KUDE70FXSS5 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10728863 Whirlpool Upper Dishrack Assembly
2WPW10588165 Whirlpool Adjuster Housing
2WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
3WPW10250160 Whirlpool Clip
4WPW10546503 Whirlpool Dishwasher Upper Rack Adjuster
5WPW10195839 Whirlpool Dishwasher Rack Adjuster
6WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
7W11125975 Whirlpool Dishwasher Cup Shelf
8WPW10267076 Whirlpool Guard Clip
9COVER
10W11259785 Whirlpool Dishwasher Upper Dishrack Slide Track Left Side
10W11259786 Whirlpool Dishwasher Upper Dishrack Slide Track Right Side
11W11110542 Whirlpool Dishwasher Handle
12W10727426 Whirlpool Dishwasher Rack Tine
13WPW10077844 Whirlpool Dishwasher Clip
14WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
15WP8539102 Whirlpool Dishwasher Positioner
168562026 Whirlpool Dishwasher Clip
17WPW10482109 Whirlpool Dishwasher Basket Ware
