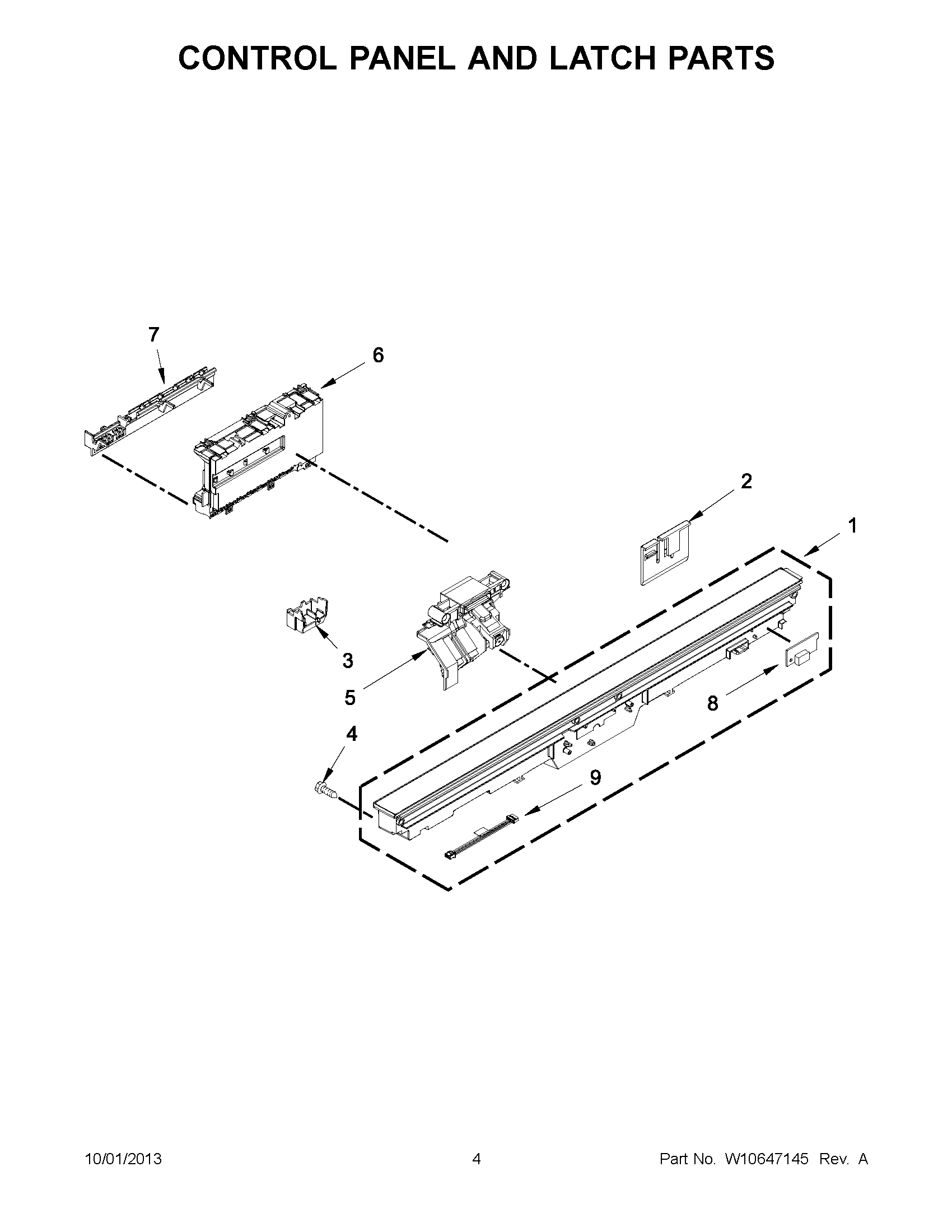

KUDE70FXWH6 03 – CONTROL PANEL AND LATCH PARTS

KUDE70FXWH6 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDE70FXWH6 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (STAINLESS)
1CONSOLE ASSEMBLY (BLACK)
1WPW10481142 Whirlpool Control Panel
2W11256107 Whirlpool Dishwasher Clip
3WPW10462393 Whirlpool Dishwasher Connector
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W10866118 Whirlpool Dishwasher Electronic Control Board
7WPW10462395 Whirlpool Dishwasher Brace
8WPW10195836 Whirlpool Dishwasher Indicator Light
9W10528492 Whirlpool Dishwasher Wire
