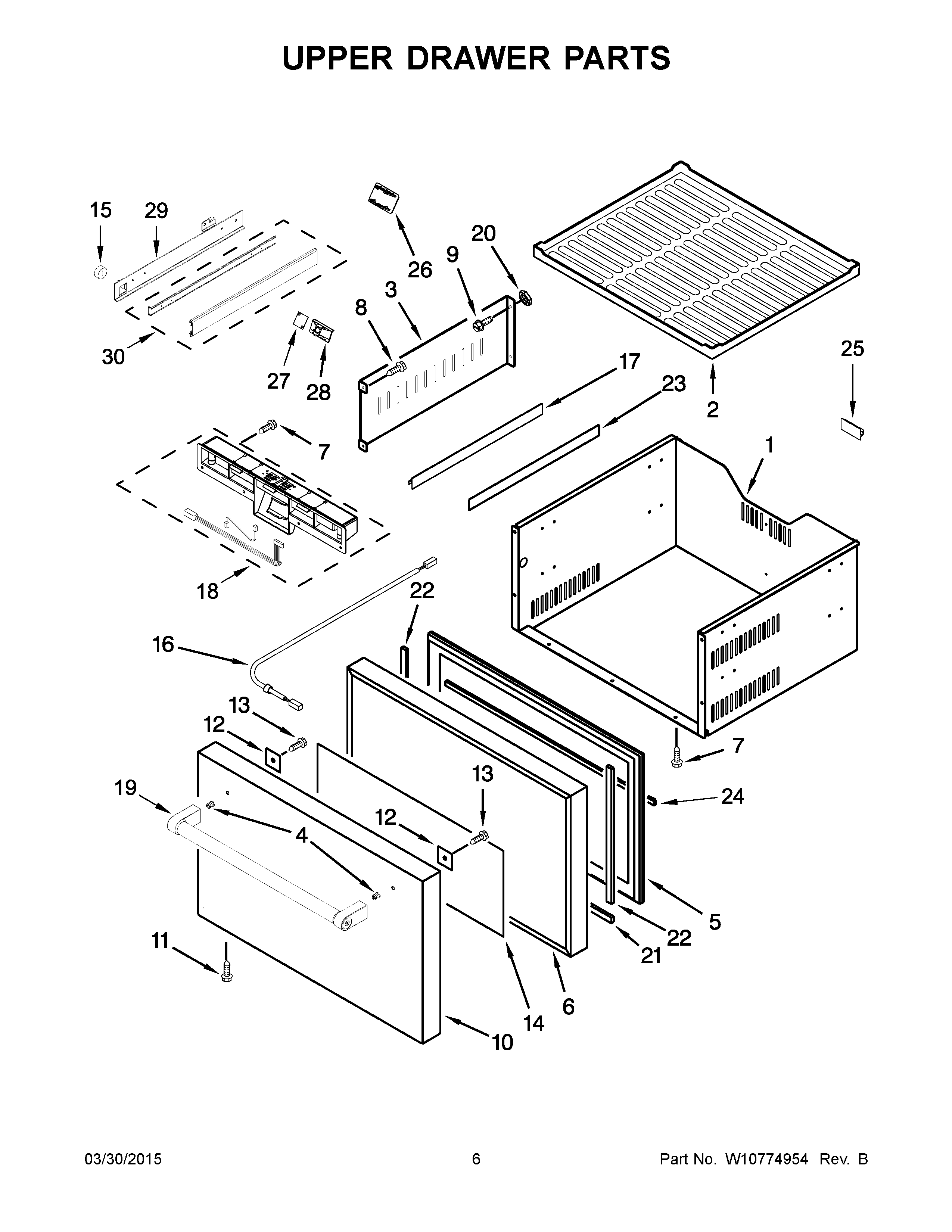

KUDF204EPA00 04 – UPPER DRAWER PARTS

KUDF204EPA00 04 – UPPER DRAWER PARTS

Written by

in

KUDF204EPA00 04 – UPPER DRAWER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10788702 Whirlpool Refrigerator Hardware Pack
1W10789523 Whirlpool Refrigerator Drawer
2MAT, UPPER DRAWER
3DRAWER PARTITION
4W11179356 Whirlpool Refrigerator Stud Handle
5W11625065 Whirlpool Refrigerator Gasket
6TOP FOAMED DOOR ASSEMBLY
7W10204808 Whirlpool Refrigerator Screw
8SCREW
9W10204810 Whirlpool Screw
10W10796876 Whirlpool Refrigerator Front Drawer
11W10319185 Whirlpool Screw
12W11263339 Whirlpool Refrigerator Plate
13W10859467 Whirlpool Refrigerator Screw
14W10204867 Whirlpool Front Drawer
15W10624158 Whirlpool Refrigerator Support
16W10789534 Whirlpool Refrigerator Wire Harness
17W10622013 Whirlpool Refrigerator Clip
18W10789537 Whirlpool Refrigerator Display
19W10708004 Whirlpool Dishwasher Handle
20W10204920 Whirlpool Refrigerator Nut
21W10204889 Whirlpool Refrigerator Gasket
22W10204897 Whirlpool Refrigerator Gasket
23W10205081 Whirlpool Refrigerator Tape
24W10287957 Whirlpool Refrigerator Gasket
25W10772901 Whirlpool Refrigerator Clip
26W10204929 Whirlpool Cover
27W10204930 Whirlpool Refrigerator Light Lens
28W10204931 Whirlpool Socket Assembly
29W10789525 Whirlpool Refrigerator Support
29AW10789528 Whirlpool Refrigerator Support
30WPW10233777 Whirlpool Refrigerator Slide
