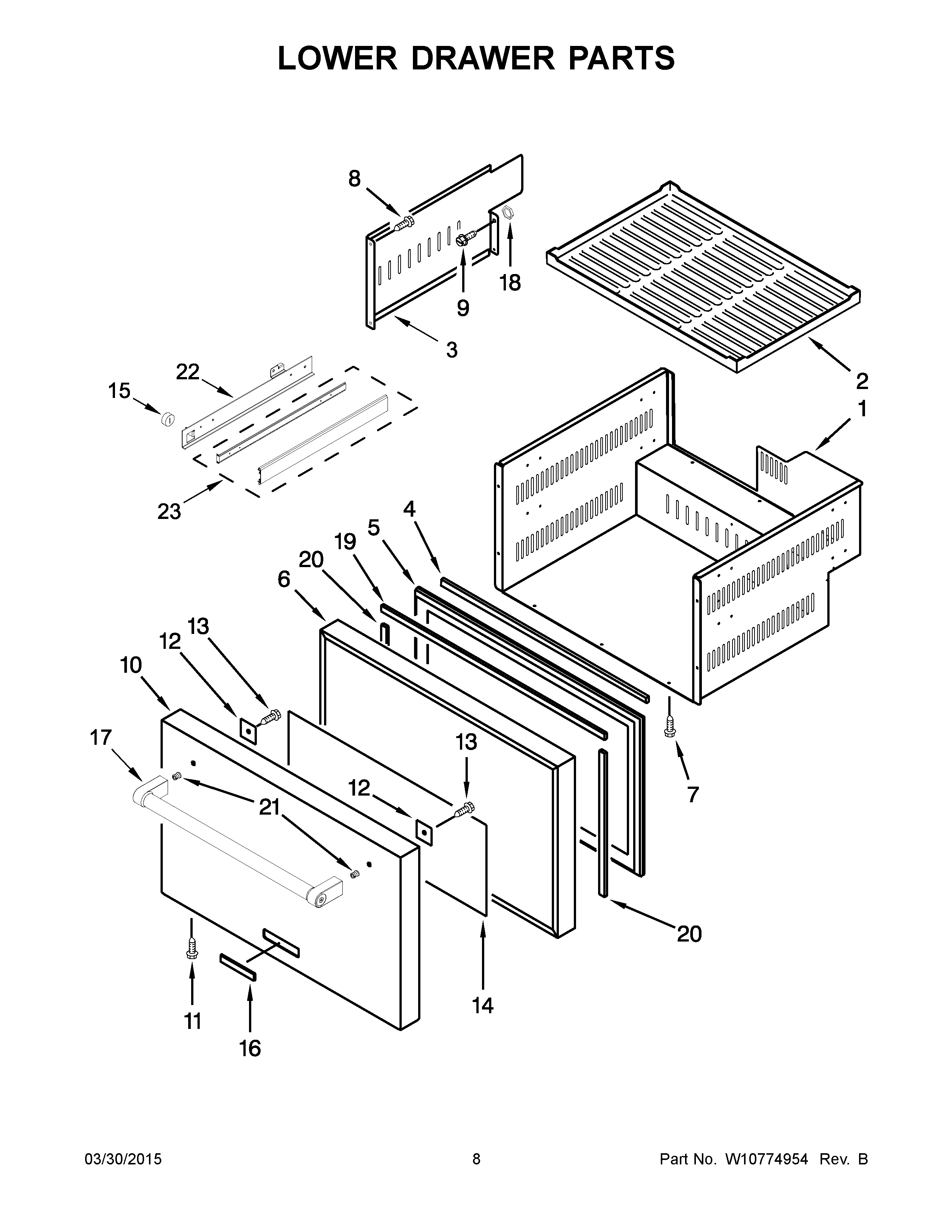

KUDF204EPA00 05 – LOWER DRAWER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10788702 Whirlpool Refrigerator Hardware Pack
1W10789535 Whirlpool Refrigerator Drawer
2W10622026 Whirlpool Refrigerator Mat
3W10796446 Whirlpool Refrigerator Divider
4COLD AIR SEAL
5W11625065 Whirlpool Refrigerator Gasket
6DOOR
7W10204808 Whirlpool Refrigerator Screw
8SCREW
9W10204810 Whirlpool Screw
10W10796876 Whirlpool Refrigerator Front Drawer
11W10319185 Whirlpool Screw
12W11263339 Whirlpool Refrigerator Plate
13W10859467 Whirlpool Refrigerator Screw
14W10204867 Whirlpool Front Drawer
15W10624158 Whirlpool Refrigerator Support
16W11179312 Whirlpool Refrigerator Nameplate
17W10708004 Whirlpool Dishwasher Handle
18W10204920 Whirlpool Refrigerator Nut
19W10204889 Whirlpool Refrigerator Gasket
20W10204897 Whirlpool Refrigerator Gasket
21W11179356 Whirlpool Refrigerator Stud Handle
22W10789525 Whirlpool Refrigerator Support
22AW10789528 Whirlpool Refrigerator Support
23WPW10233777 Whirlpool Refrigerator Slide
