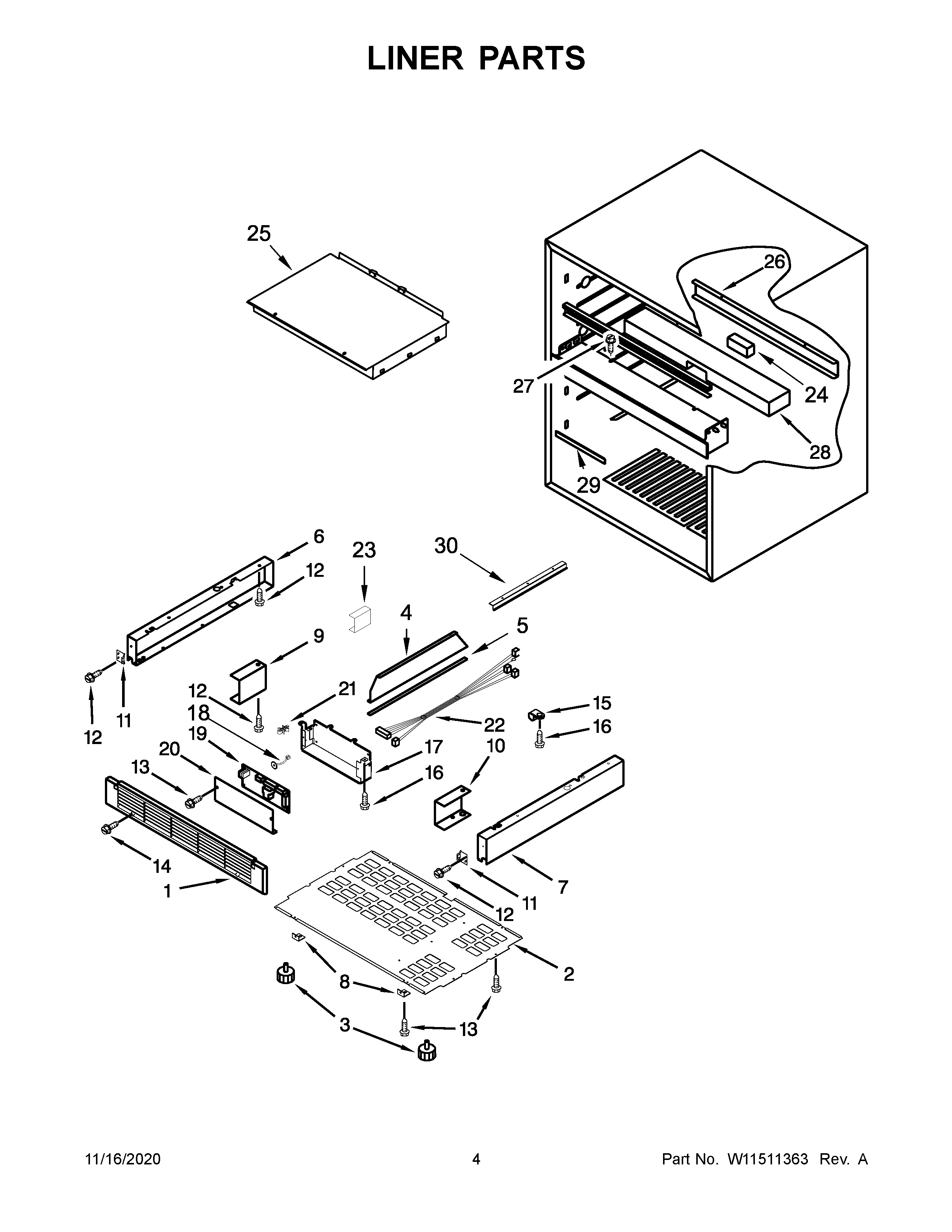

KUDF204EPA01 03 – LINER PARTS

Products

Position	Product
1	W10281494 Whirlpool Refrigerator Grille
2	COVER, BOTTOM
3	W11106296 Whirlpool Refrigerator Leveler
4	W10778959 Whirlpool Cabinet Base
5	4344823 Whirlpool Refrigerator Seal
6	W10621525 Whirlpool Refrigerator Support
7	W10621526 Whirlpool Refrigerator Support
8	W10239388 Whirlpool Brace
9	4344820 Whirlpool Refrigerator Support
10	4344821 Whirlpool Refrigerator Support
11	W10204640 Whirlpool Refrigerator Clip
12	4344797 Whirlpool Screw
13	W10837731 Whirlpool Screw Assembly
14	W10319184 Whirlpool Refrigerator Screw
15	7111P002-60 Whirlpool Clamp
16	SCREW
17	W10772866 Whirlpool Refrigerator Control Box
18	W10788693 Whirlpool Refrigerator Speaker
19	WPW10788697-includeCORE Whirlpool WPW10788697 Refrigerator Electronic Control Board + Core
20	W10788698 Whirlpool Refrigerator Cover
21	W10204659 Whirlpool Refrigerator Spacer
22	W10772870 Whirlpool Refrigerator Wire Harness
23	BRACKET, PCB
24	W10205072 Whirlpool Refrigerator Insulation
25	MULLION BODY ASSEMBLY
26	W10621527 Whirlpool Refrigerator Trim
27	SCREW
28	W10621528 Whirlpool Refrigerator Insulation
29	MULLION CASE INSULATION FRONT
30	BLOCK AIR CIRCULATION
