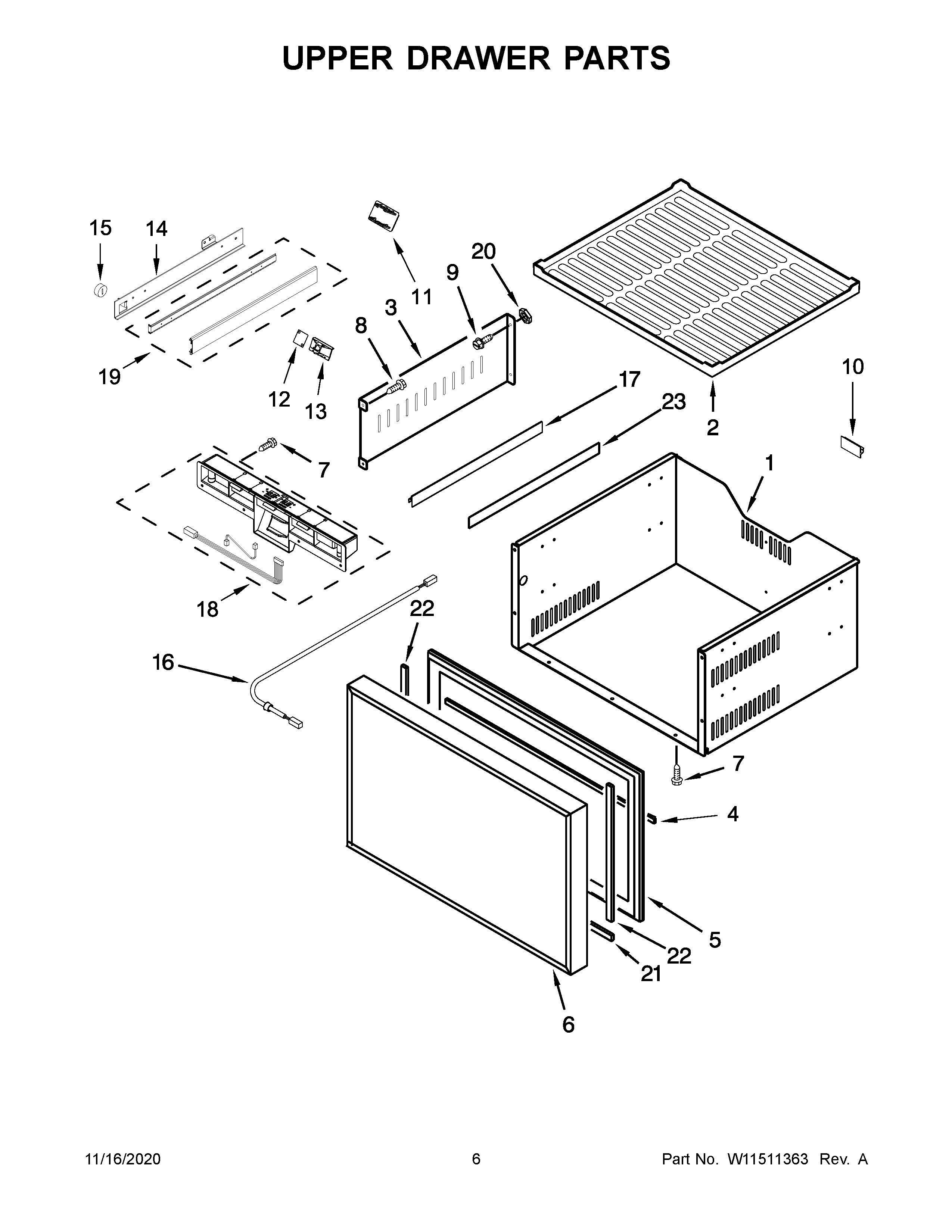

KUDF204EPA01 04 – UPPER DRAWER PARTS

Products

Position	Product
1	W10789523 Whirlpool Refrigerator Drawer
2	MAT, UPPER DRAWER
3	DRAWER PARTITION
4	W10287957 Whirlpool Refrigerator Gasket
5	W11625065 Whirlpool Refrigerator Gasket
6	TOP FOAMED DOOR ASSEMBLY
7	W10204808 Whirlpool Refrigerator Screw
8	SCREW
9	W10204810 Whirlpool Screw
10	W10772901 Whirlpool Refrigerator Clip
11	W10204929 Whirlpool Cover
12	W10204930 Whirlpool Refrigerator Light Lens
13	W10204931 Whirlpool Socket Assembly
14	W10789525 Whirlpool Refrigerator Support
14A	W10789528 Whirlpool Refrigerator Support
15	W10624158 Whirlpool Refrigerator Support
16	W10789534 Whirlpool Refrigerator Wire Harness
17	W10622013 Whirlpool Refrigerator Clip
18	W10789537 Whirlpool Refrigerator Display
19	WPW10233777 Whirlpool Refrigerator Slide
20	W10204920 Whirlpool Refrigerator Nut
21	W10204889 Whirlpool Refrigerator Gasket
22	W10204897 Whirlpool Refrigerator Gasket
23	W10205081 Whirlpool Refrigerator Tape
