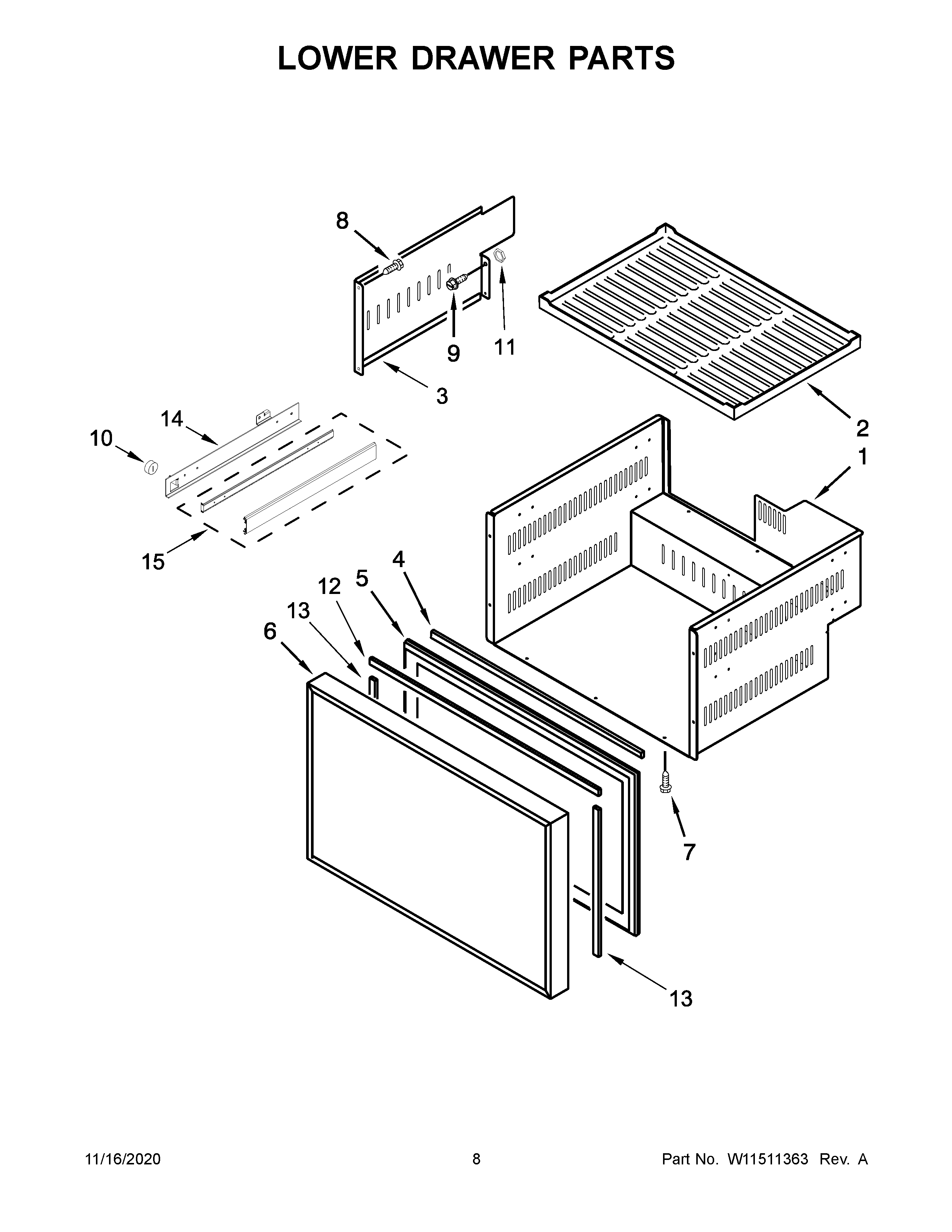

KUDF204EPA01 05 – LOWER DRAWER PARTS

KUDF204EPA01 05 – LOWER DRAWER PARTS

Written by

in

KUDF204EPA01 05 – LOWER DRAWER PARTS

Products

PositionProduct
1W10789535 Whirlpool Refrigerator Drawer
2W10622026 Whirlpool Refrigerator Mat
3W10796446 Whirlpool Refrigerator Divider
4COLD AIR SEAL
5W11625065 Whirlpool Refrigerator Gasket
6DOOR
7W10204808 Whirlpool Refrigerator Screw
8SCREW
9W10204810 Whirlpool Screw
10W10624158 Whirlpool Refrigerator Support
11W10204920 Whirlpool Refrigerator Nut
12W10204889 Whirlpool Refrigerator Gasket
13W10204897 Whirlpool Refrigerator Gasket
14AW10789528 Whirlpool Refrigerator Support
14W10789525 Whirlpool Refrigerator Support
15WPW10233777 Whirlpool Refrigerator Slide
