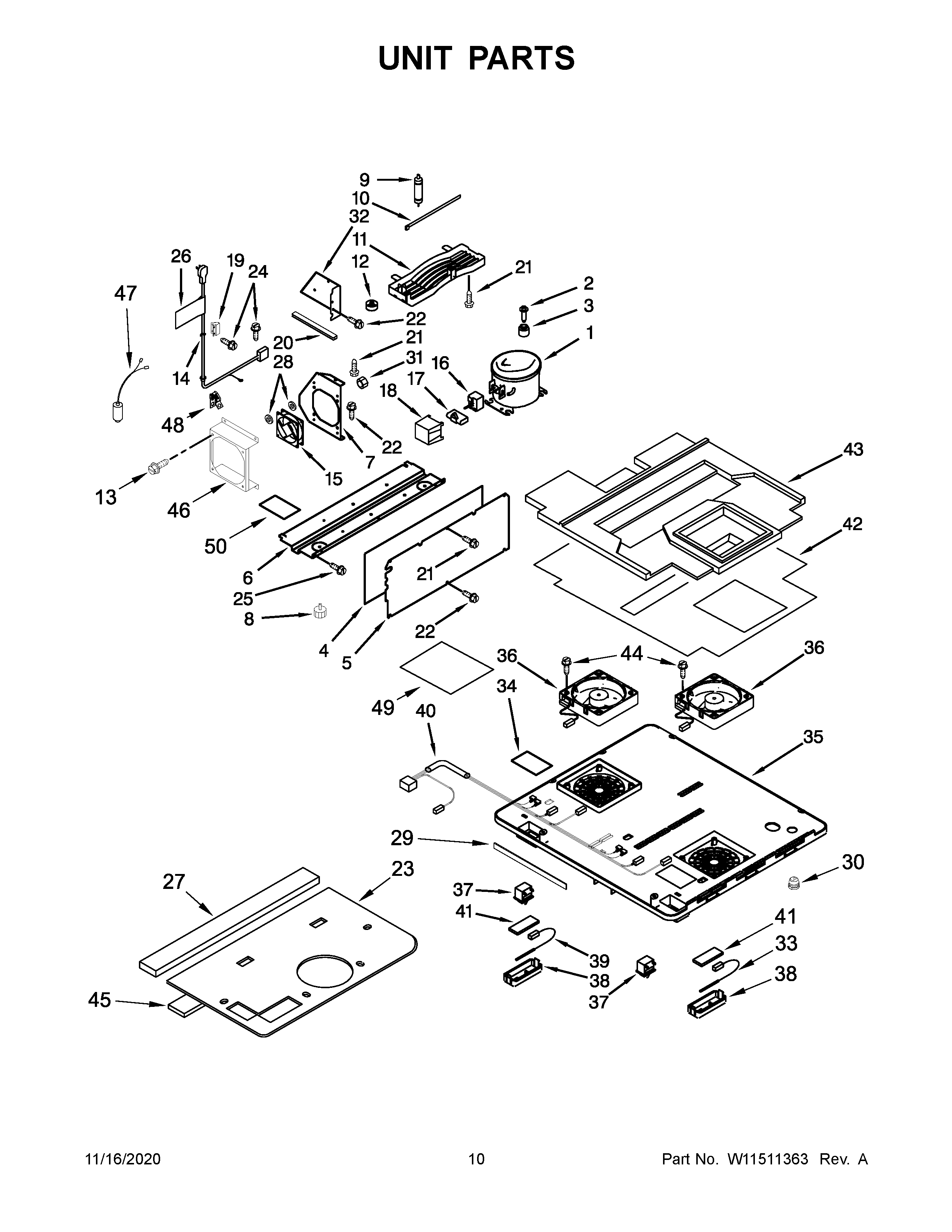

KUDF204EPA01 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10266810 Whirlpool Refrigerator Repair Kit
1	WPW10772872 Whirlpool Refrigerator Compressor
2	W10772873 Whirlpool Screw
3	WP4344779 Whirlpool Refrigerator Grommet
4	INSULATION, REAR COVER
5	COVER, REAR
6	CABINET BASE PLATE
7	W10204674 Whirlpool Refrigerator Baffle
8	W11106296 Whirlpool Refrigerator Leveler
9	W10163273 Whirlpool Refrigerator Tube
10	4344829 Whirlpool Tie Wire
11	W11506518 Whirlpool Refrigerator Drip Pan
12	W10163276 Whirlpool Refrigerator Trap
13	SCREW
14	WPW10204676 Whirlpool Refrigerator Power Cord
15	W10772882 Whirlpool Refrigerator Condenser Motor
16	W10772884 Whirlpool Refrigerator Overload
17	W10287848 Whirlpool Refrigerator Thermistor
18	COVER, RELAY
19	CLAMP, CORD
20	TRIM, EDGE
21	SCREW
22	W11380570 Whirlpool Microwave Screw
23	INSULATION, COMBO
24	4344826 Whirlpool Refrigerator Screw
25	4344797 Whirlpool Screw
26	4344913 Whirlpool Label Assembly
27	W10788704 Whirlpool Refrigerator Seal
28	W10204688 Whirlpool Plate Assembly
29	SEAL, MULLION
30	BUSHING, COVER
31	NUT
32	BRACKET, (DEFROST TIMER)
33	W10772917 Whirlpool Refrigerator Thermistor
34	W10205062 Whirlpool Wire Cover
35	COVER, FAN
36	W10854409 Whirlpool Refrigerator Evaporator Motor
37	W10721454 Whirlpool Refrigerator Switch
38	SENSOR CASE
39	W11238391 Whirlpool Refrigerator Thermistor
40	W10772918 Whirlpool Refrigerator Wire Harness
41	W10204948 Whirlpool Refrigerator Control Box
42	PLATE COVER
43	INSULATION, FAN COVER
44	W10205061 Whirlpool Screw Assembly
45	SEAL, COLD AIR STOP
46	W11506521 Whirlpool Refrigerator Bracket
47	W10772895 Whirlpool Refrigerator Capacitor
48	CLAMP, CORD
49	SEAL, FAN COVER
50	BLOCK, SEAL AIR
