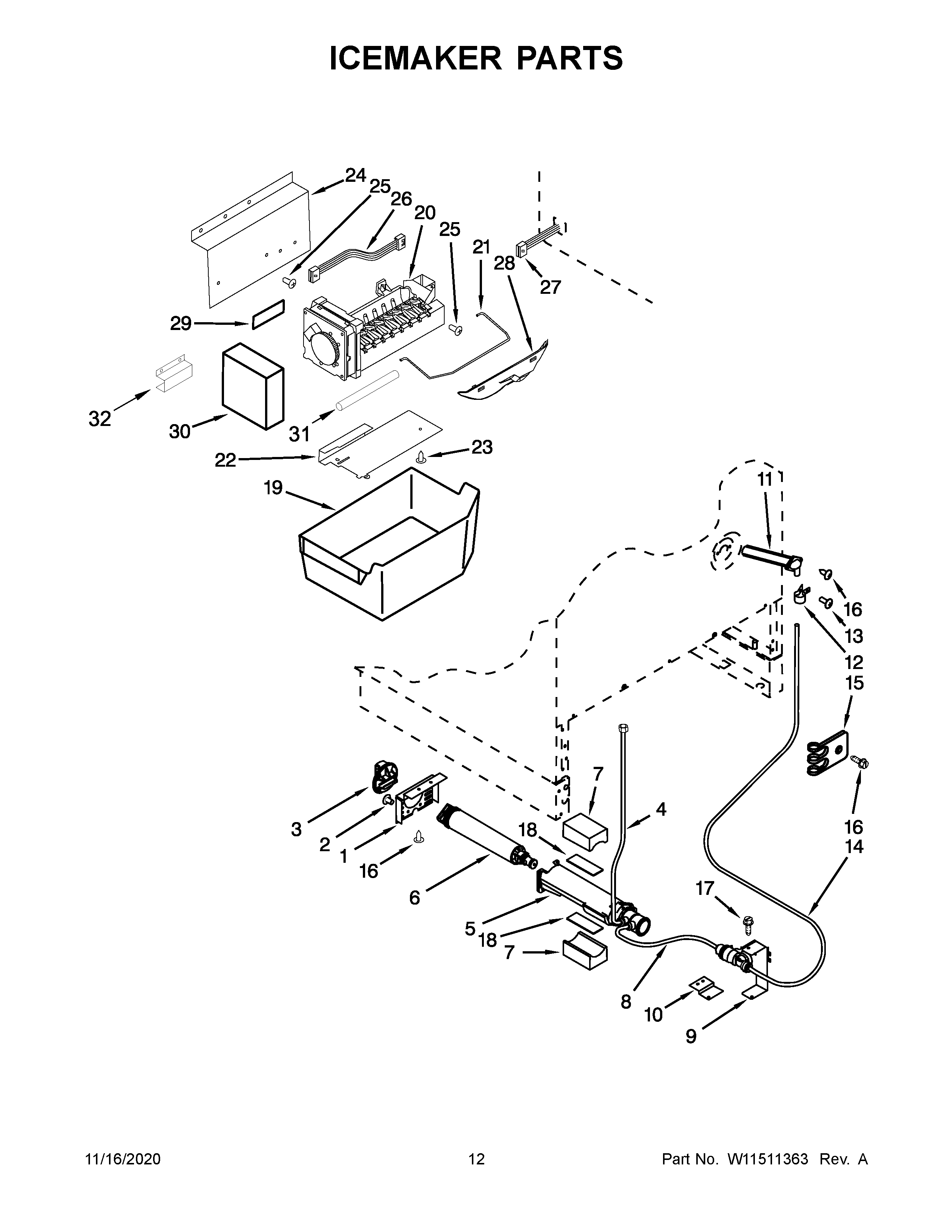

KUDF204EPA01 07 – ICEMAKER PARTS

Products

Position	Product
1	BRACKET, FILTER
2	SCREW, SUPPORT
3	WP2186494B Whirlpool Refrigerator Filter Cap
4	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
5	WP2225521 Whirlpool Water Filter Housing
6	EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
7	W10281561 Whirlpool Refrigerator Block
8	W10772928 Whirlpool Refrigerator Water Tube
9	VALVE-INLT REFR
10	W10281565 Whirlpool Refrigerator Bracket
11	WP2196157 Whirlpool Fill Tube
12	WP488878 Whirlpool Refrigerator Tube Clamp
13	SCREW
14	W10281586 Whirlpool Refrigerator Fitting
15	TUBE CLAMP
16	SCREW
17	W11380570 Whirlpool Microwave Screw
18	W10281589 Whirlpool Refrigerator Tape
19	PAN-ICE
20	4317943 Whirlpool Refrigerator Ice Maker Assembly
21	W10281546 Whirlpool Refrigerator Arm Shut
22	2256178 Whirlpool Shield Assembly
23	Screw
24	W10488628 Whirlpool Refrigerator Bracket
25	SCREW
26	W10772924 Whirlpool Wire Harness
27	W10281551 Whirlpool Refrigerator Wire Harness
28	W10281552 Whirlpool Refrigerator Extension
29	W10281553 Whirlpool Refrigerator Shield
30	WPW10289690 Whirlpool Ice Maker Cover
31	W10304200 Whirlpool Inlet Tube
32	COVER, WIRE
