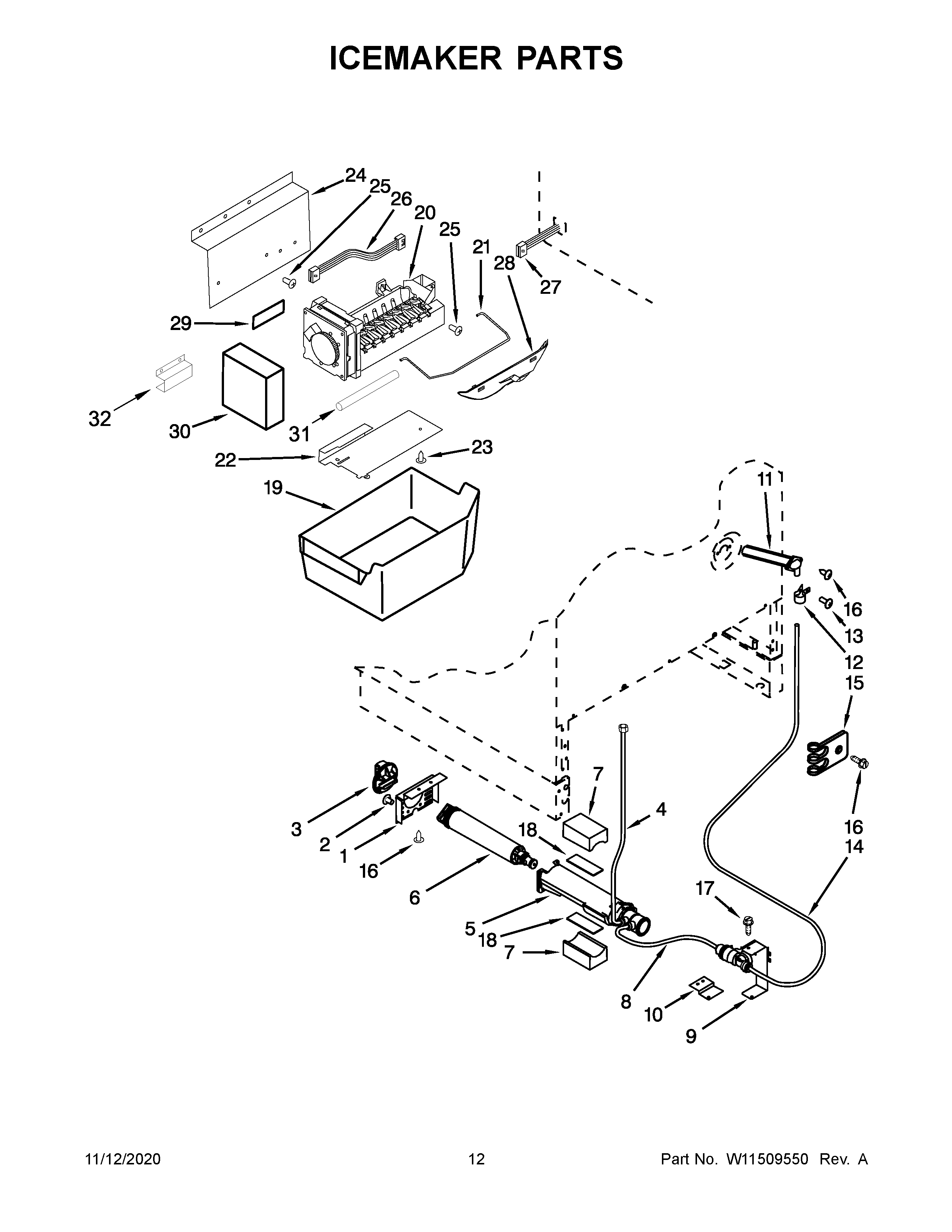

KUDF204ESB01 07 – ICEMAKER PARTSadmin2025-04-26T11:49:56+00:00KUDF204ESB01 07 – ICEMAKER PARTS ProductsPositionProduct1BRACKET, FILTER2SCREW, SUPPORT3WP2186494B Whirlpool Refrigerator Filter Cap48201597 Whirlpool Inlet Water Fill Tube Kit Filter5WP2225521 Whirlpool Water Filter Housing6EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl7W10281561 Whirlpool Refrigerator Block8W10772928 Whirlpool Refrigerator Water Tube9VALVE-INLT REFR10W10281565 Whirlpool Refrigerator Bracket11WP2196157 Whirlpool Fill Tube12WP488878 Whirlpool Refrigerator Tube Clamp13SCREW14W10281586 Whirlpool Refrigerator Fitting15TUBE CLAMP16SCREW17W11380570 Whirlpool Microwave Screw18W10281589 Whirlpool Refrigerator Tape19PAN-ICE204317943 Whirlpool Refrigerator Ice Maker Assembly21W10281546 Whirlpool Refrigerator Arm Shut222256178 Whirlpool Shield Assembly23Screw24W10488628 Whirlpool Refrigerator Bracket25SCREW26W10772924 Whirlpool Wire Harness27W10281551 Whirlpool Refrigerator Wire Harness28W10281552 Whirlpool Refrigerator Extension29W10281553 Whirlpool Refrigerator Shield30WPW10289690 Whirlpool Ice Maker Cover31W10304200 Whirlpool Inlet Tube32COVER, WIRE
