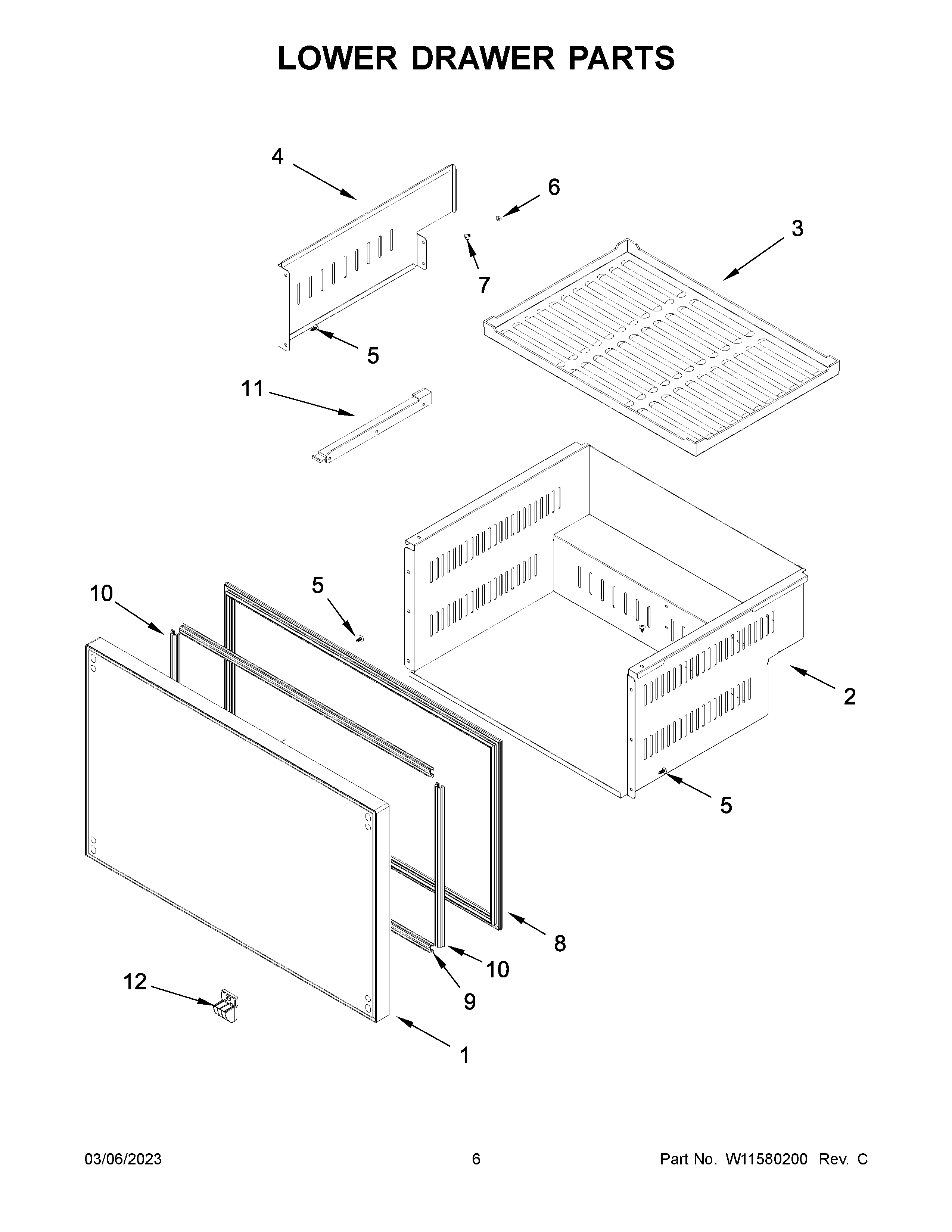

KUDF204KPA00 04 – LOWER DRAWER PARTS

KUDF204KPA00 04 – LOWER DRAWER PARTS

Written by

in

KUDF204KPA00 04 – LOWER DRAWER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1W11568937 Whirlpool Refrigerator Drawer
2DRAWER BOX ASSEMBLY, BOTTOM
3MAT, LOWER DRAWER
4BOTTOM DRAWER PARTITION
5SCREW
6W10204920 Whirlpool Refrigerator Nut
7W10204810 Whirlpool Screw
8GASKET
9GASKET, SASH (TOP/BOTTOM)
10DOOR GASKET, SHORT
11RAIL, SIDE (LEFT HAND)
11ARAIL, SIDE (RIGHT HAND)
12W11678576 Whirlpool Bracket
