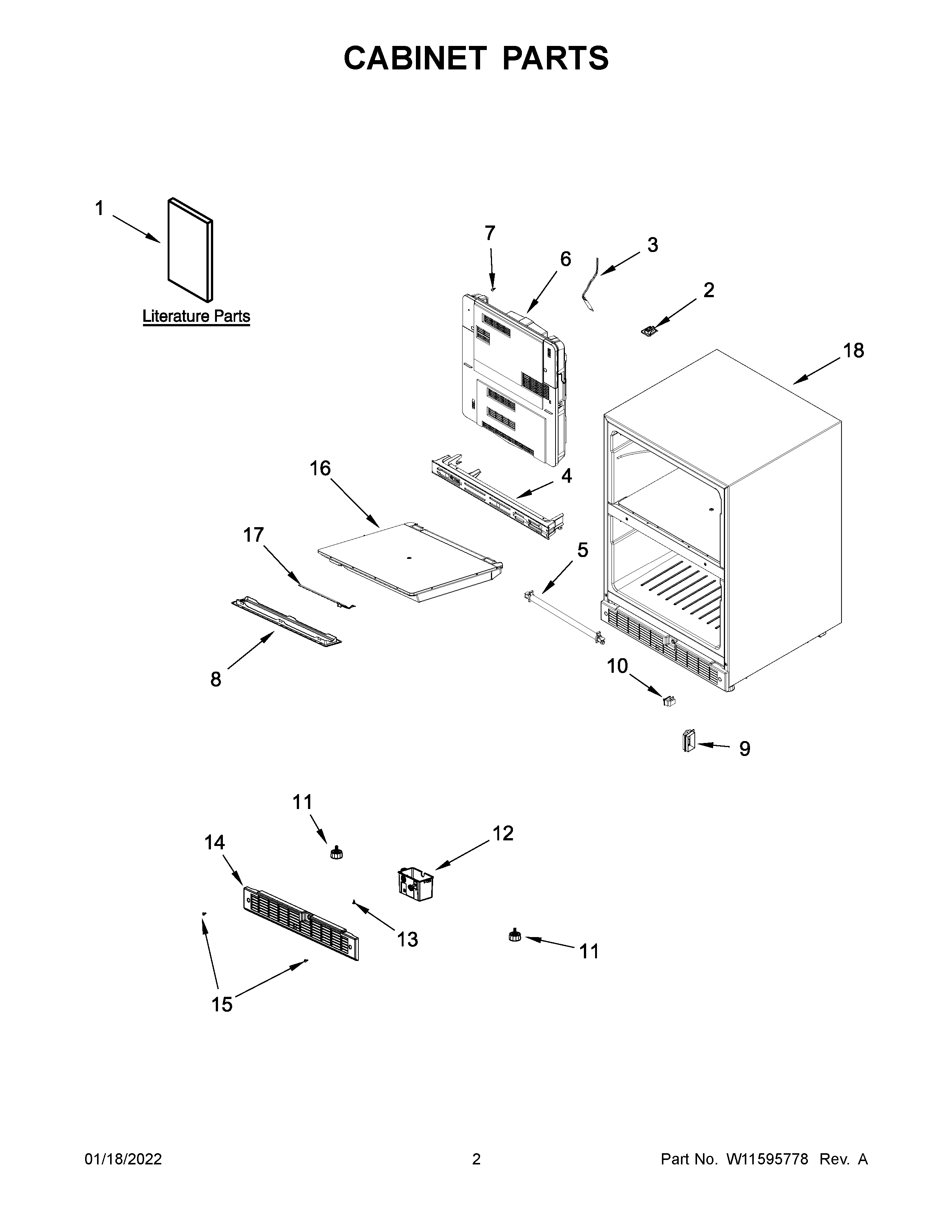

KUDF204KSB00 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	USE & CARE GUIDE
2	CONNECTOR, COVER
3	W11359415 Whirlpool Bi-metal Defrost
4	ASSEMBLY, TRIM
5	DEFROST HOLDER AND HEATER
6	COVER ASSEMBLY, EVAPORATOR
7	W11375760 Whirlpool Refrigerator Screw
8	W11312450 Whirlpool Light Lens
9	SWITCH, CASE
10	W11579510 Whirlpool Refrigerator Switch
11	W11106296 Whirlpool Refrigerator Leveler
12	ASSEMBLY, SWITCH BOX
13	W11371097 Whirlpool Screw
14	W11580233 Whirlpool Grille
15	W11675284 Whirlpool Screw
16	ASSEMBLY, SEPARATOR
17	LED
18	CABINET (NOT A SERVICEABLE PART)
