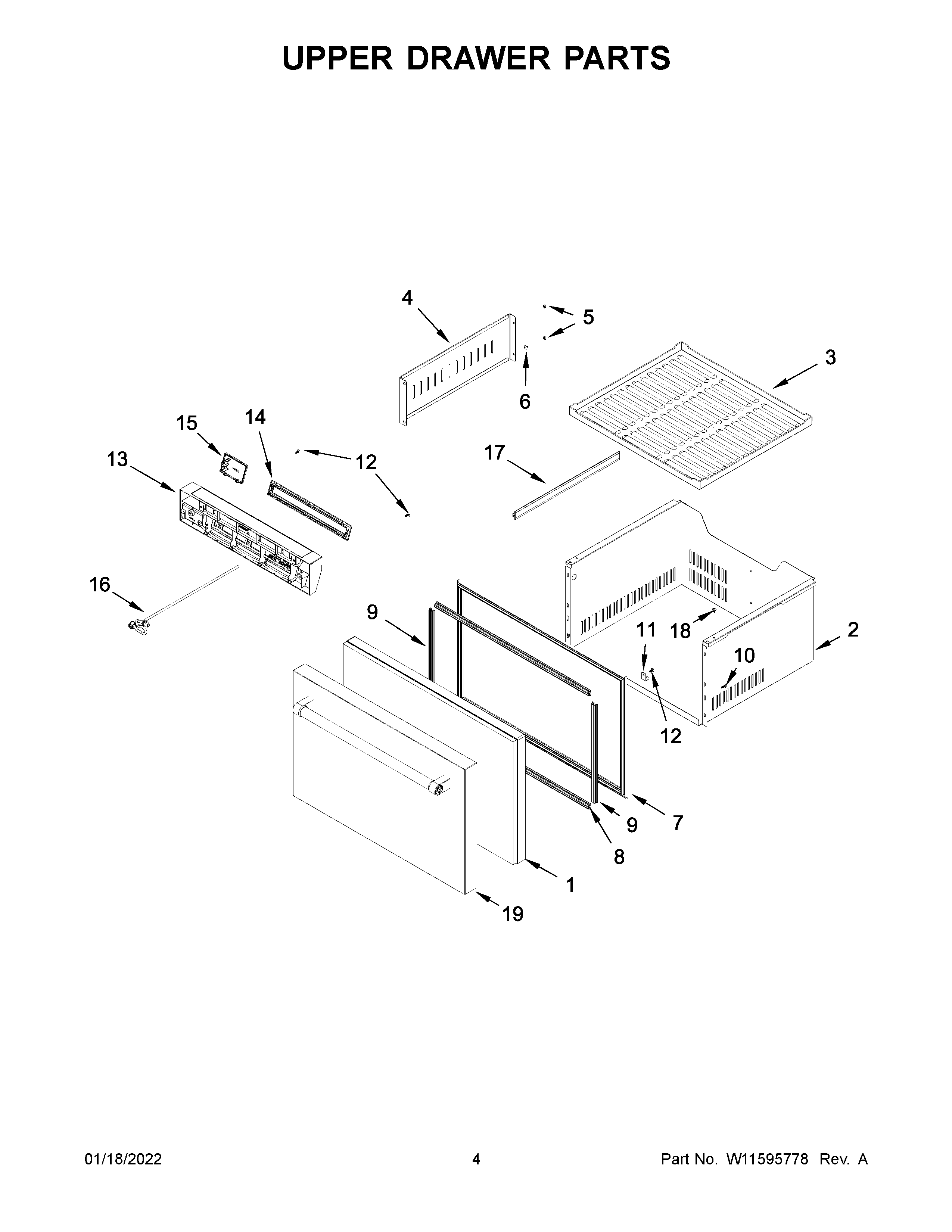

KUDF204KSB00 03 – UPPER DRAWER PARTS

KUDF204KSB00 03 – UPPER DRAWER PARTS

Written by

in

KUDF204KSB00 03 – UPPER DRAWER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NICOMPLETE, DOOR ASSEMBLY
1W11568830 Whirlpool Refrigerator Front Drawer
2DRAWER BOX ASSEMBLY, UPPER
3MAT, UPPER DRAWER
4DRAWER PARTITION
5W10204920 Whirlpool Refrigerator Nut
6W10204810 Whirlpool Screw
7GASKET, DOOR
8GASKET, SASH (TOP/BOTTOM)
9DOOR GASKET, SHORT
10W10204808 Whirlpool Refrigerator Screw
11W11579579 Whirlpool Refrigerator Plate
12W11675284 Whirlpool Screw
13W11708430 Whirlpool Display
14W11312450 Whirlpool Light Lens
15LAMP COVER
16W11592421 Whirlpool Wire Harness
17SUPPORT, LEAD WIRE
18SCREW
19W11568932 Whirlpool Door Skin
