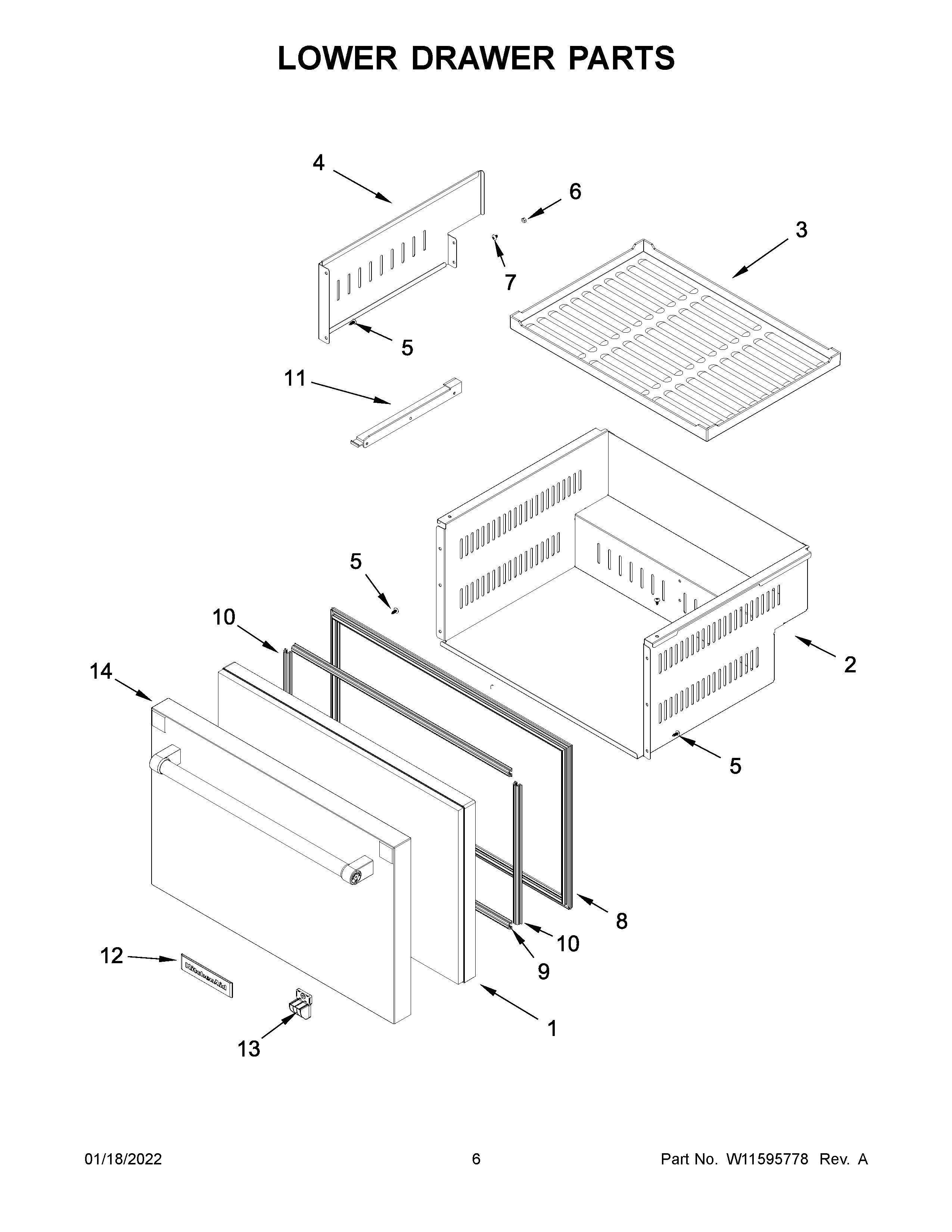

KUDF204KSB00 04 – LOWER DRAWER PARTS
Written by
in
KUDF204KSB00 04 – LOWER DRAWER PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
COMPLETE, DOOR ASSEMBLY
1
W11568937 Whirlpool Refrigerator Drawer
2
DRAWER BOX ASSEMBLY, BOTTOM
3
MAT, LOWER DRAWER
4
BOTTOM DRAWER PARTITION
5
SCREW
6
W10204920 Whirlpool Refrigerator Nut
7
W10204810 Whirlpool Screw
8
GASKET
9
GASKET, SASH (TOP/BOTTOM)
10
DOOR GASKET, SHORT
11
RAIL, SIDE (LEFT HAND)
11A
RAIL, SIDE (RIGHT HAND)
12
W11179312 Whirlpool Refrigerator Nameplate
13
W11678576 Whirlpool Bracket
14
W11568932 Whirlpool Door Skin
←
