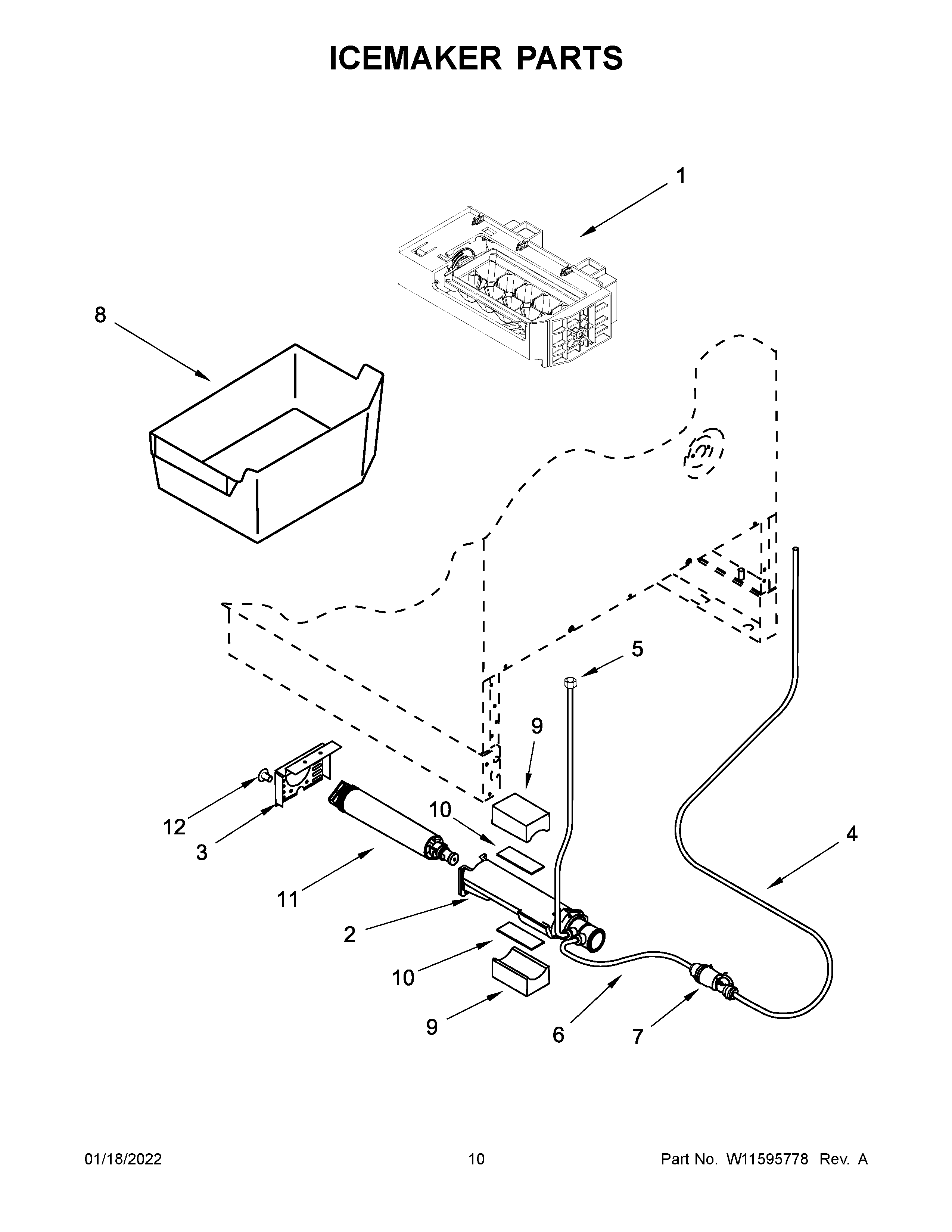

KUDF204KSB00 06 – ICEMAKER PARTS

Products

PositionProduct
1W11707764 Whirlpool Refrigerator Ice Maker
2W11594479 Whirlpool Housing
3BRACKET, FILTER
4W11580303 Whirlpool Fitting
5W11632305 Whirlpool Water Tube
6W11632308 Whirlpool Water Tube
7W11700301 Whirlpool Valve Assembly
8W11594484 Whirlpool Ice Container
9BLOCK, FILTER
10W10281589 Whirlpool Refrigerator Tape
11EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
12SCREW
