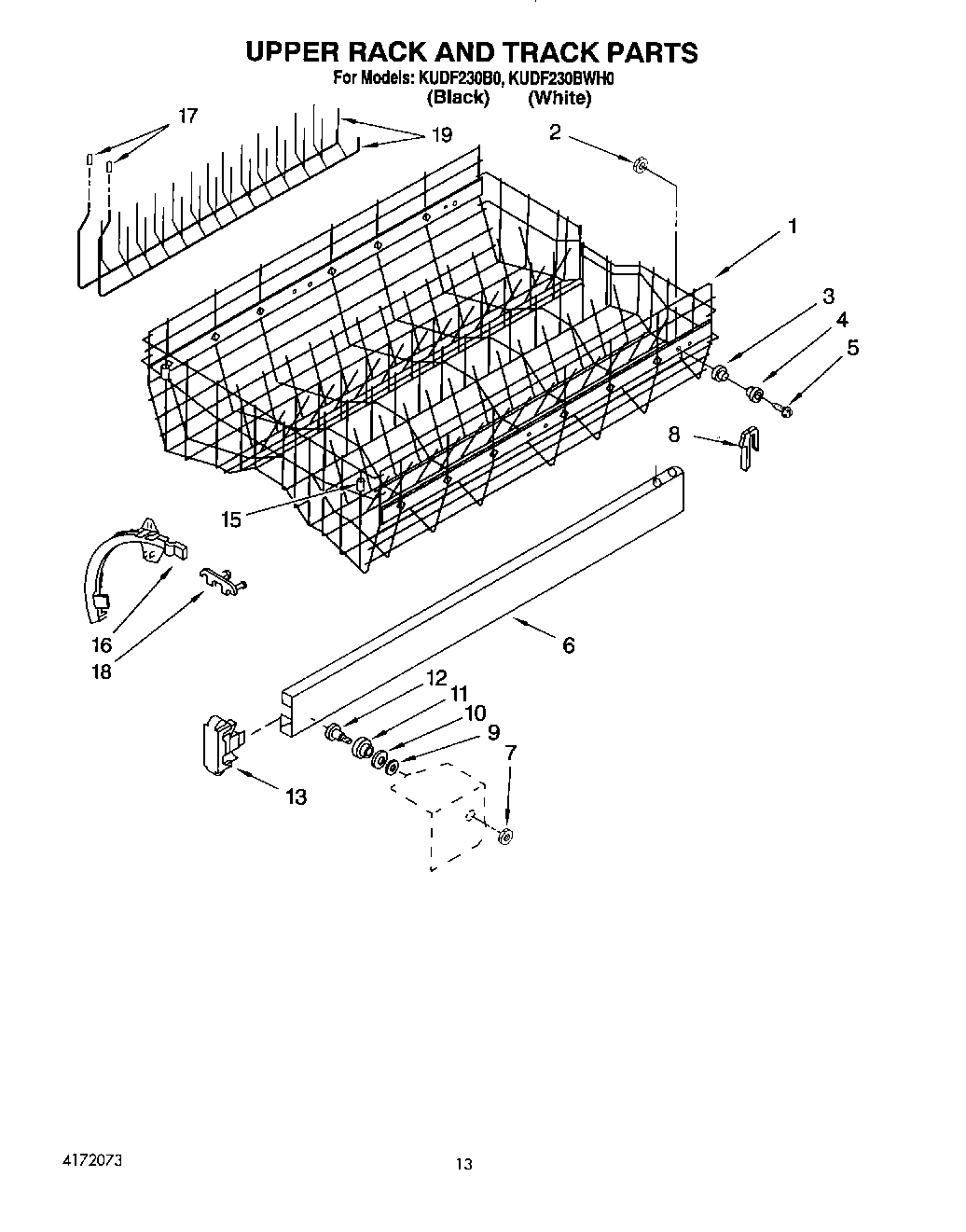

KUDF230B0 10 – UPPER RACK AND TRACK

KUDF230B0 10 – UPPER RACK AND TRACK

Written by

in

KUDF230B0 10 – UPPER RACK AND TRACK

Products

PositionProduct
1Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15)
2Nut, Roller
3Bearing & Spacer, Rack Roller
4Roller, Upper Rack Track (4)
5Screw
6Track, Rack
7Nut, Lock
8Stop, Track (2)
9Washer
10Washer, Cup
11Roller, Rack Track
12Screw, Track Roller
13Endcap, Front or Rear (2)
15Bumper, Upper Rack
16Quadrant, Divider
17Tip (2)
18Clip, Partition (3)
19Partition
