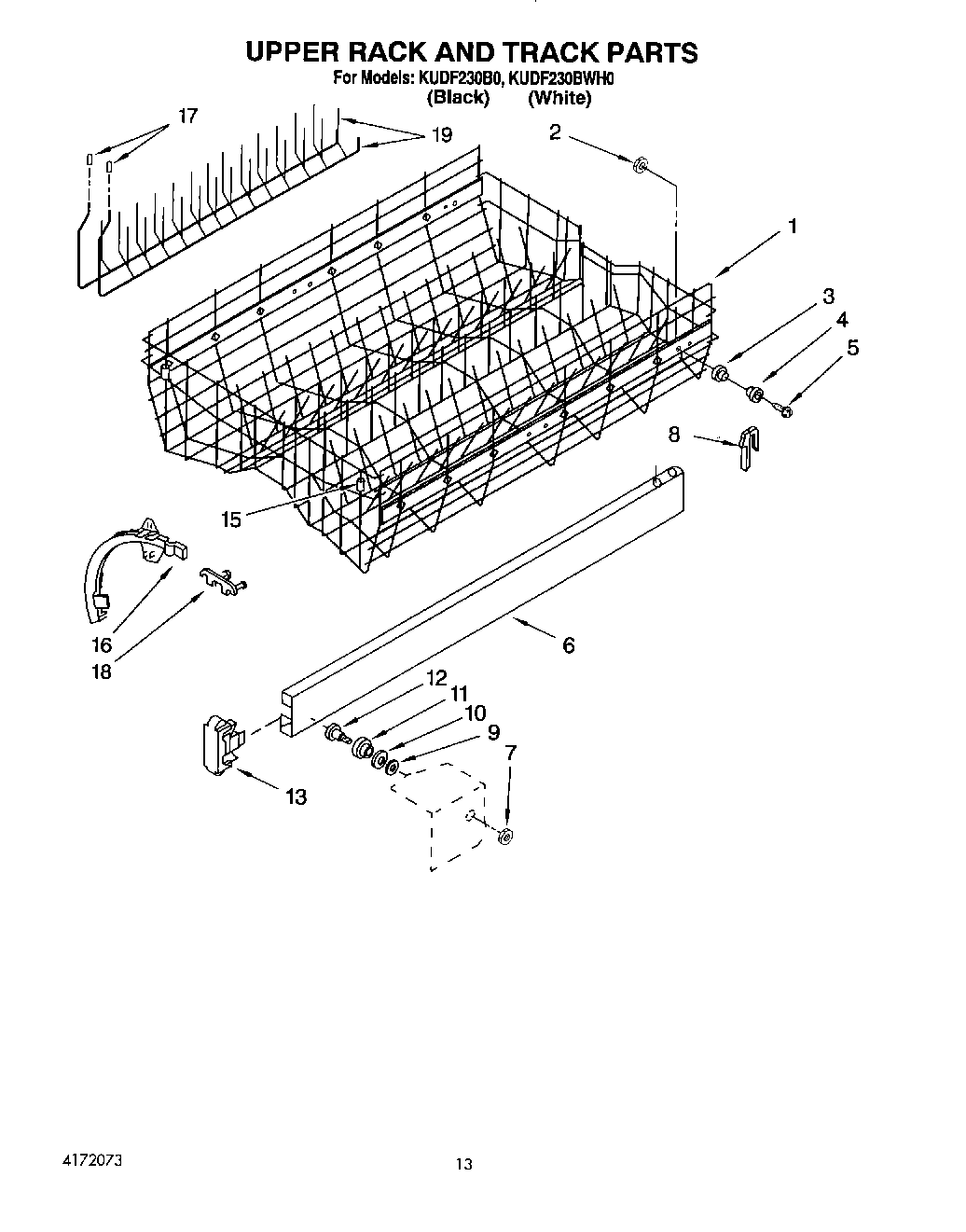

KUDF230BWH0 10 – UPPER RACK AND TRACKadmin2025-04-26T11:48:51+00:00KUDF230BWH0 10 – UPPER RACK AND TRACK
Products
| Position | Product |
|---|
| 1 | Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15) |
| 2 | Nut, Roller |
| 3 | Bearing & Spacer, Rack Roller |
| 4 | Roller, Upper Rack Track (4) |
| 5 | Screw |
| 6 | Track, Rack |
| 7 | Nut, Lock |
| 8 | Stop, Track (2) |
| 9 | Washer |
| 10 | Washer, Cup |
| 11 | Roller, Rack Track |
| 12 | Screw, Track Roller |
| 13 | Endcap, Front or Rear (2) |
| 15 | Bumper, Upper Rack |
| 16 | Quadrant, Divider |
| 17 | Tip (2) |
| 18 | Clip, Partition (3) |
| 19 | Partition |
