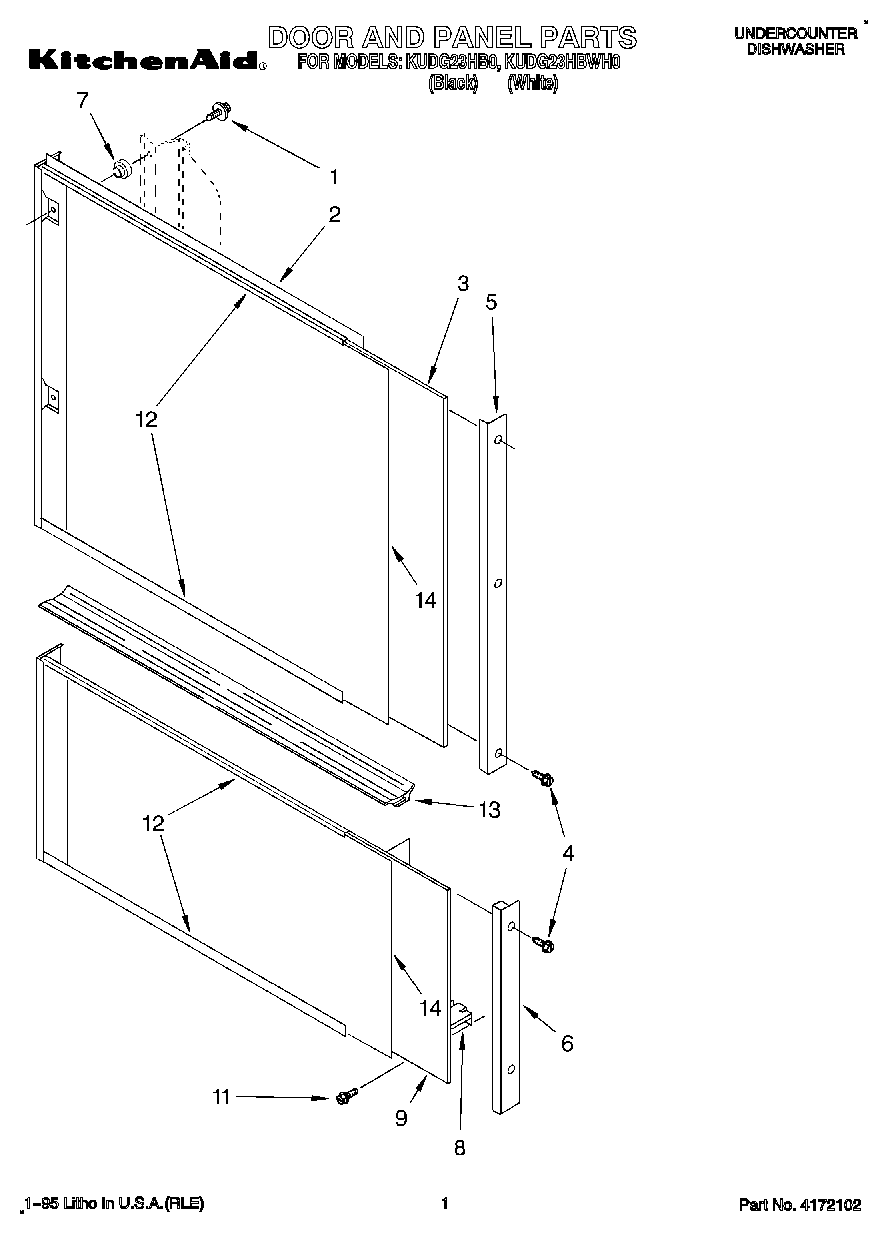

KUDG23HB0 01 – DOOR AND PANEL

KUDG23HB0 01 – DOOR AND PANEL

Products

PositionProduct
1Screw
2Upper Mounting Panel Assembly (Includes Upper & Lower Trim) (Black Model)
2Upper Mounting Panel Assembly (Includes Upper & Lower Trim) (White Model)
3Filler (Upper Panel)
4Screw (White Model)
4Screw (Black Model)
5Side Trim (Upper Panel) (Black Model)
5Side Trim (Upper Panel) (White Model)
6Side Trim (Lower Panel) (White Model)
6Side Trim (Lower Panel) (Black Model)
7Grommet, Panel
8Lower Mounting Panel Assembly (Includes Upper & Lower Trim) (White Model)
8Lower Mounting Panel Assembly (Includes Upper & Lower Trim) (Black Model)
9Filler (Lower Panel)
11Screw
12Trim, Panel (Upper & Lower) (White Model)
12Trim, Panel (Upper & Lower) (Black Model)
13Channel, Evaporation
14Panel Insert Kits (OPTIONAL KITS) (Fresh Avocado/ Coffee)
14Panel Insert Kits (White/Black)
14Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Almond)
14Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Onyx Black)
14Panel Insert Kits (OPTIONAL KITS) (Almond/White)
14Panel Insert Kits (OPTIONAL KITS) (Stainless Steel)
