KUDG23HBWH0 06 – HEATER
Written by
in

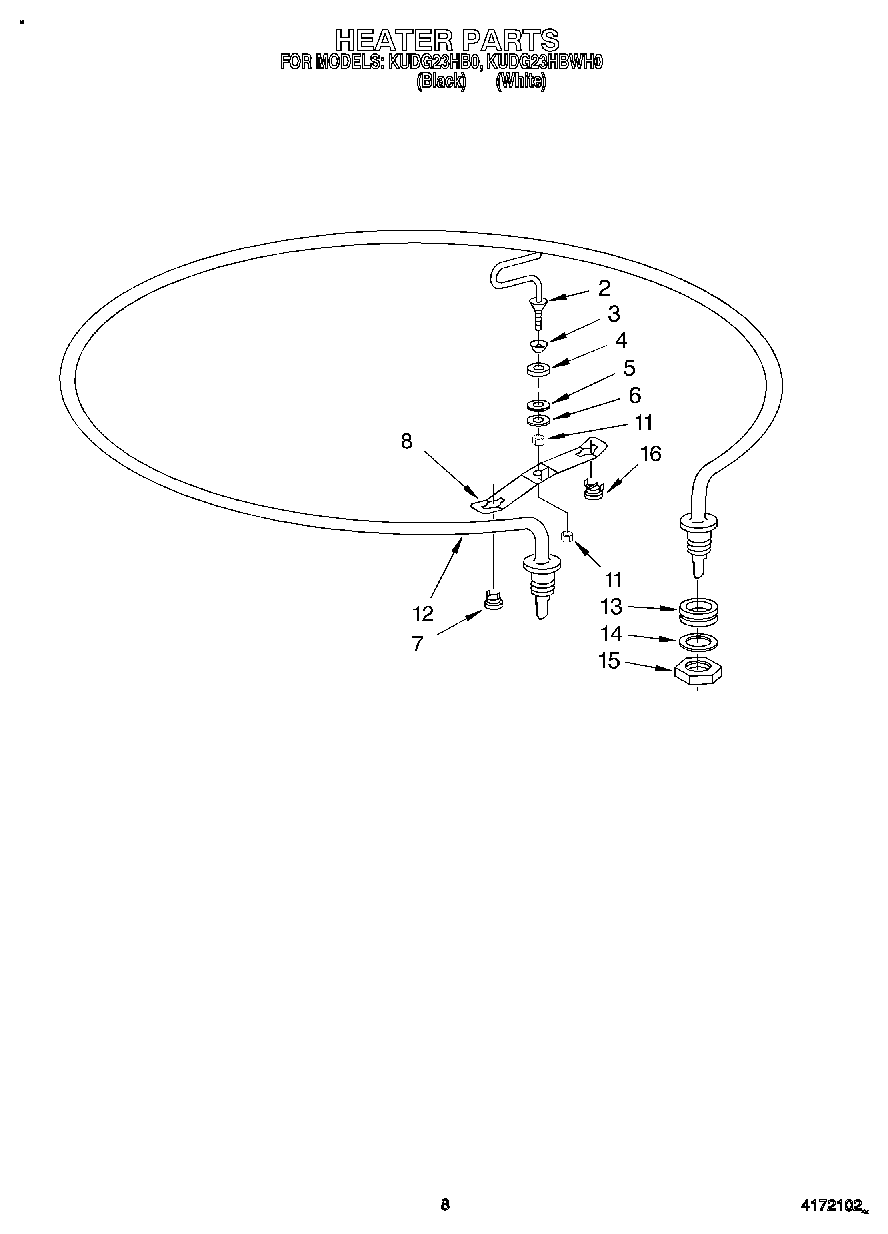

KUDG23HBWH0 06 – HEATER
Products
Position
Product
2
Hook, Heater Element
3
Washer
4
Washer, Sealing
5
Washer
6
Washer
7
Thermostat
8
Bracket, Thermostat
11
Nut, Lock
12
Element, Heater
13
Grommet, Heater Element
14
Washer, Heater Element
15
Nut, Heater Element
16
Thermostat
←
