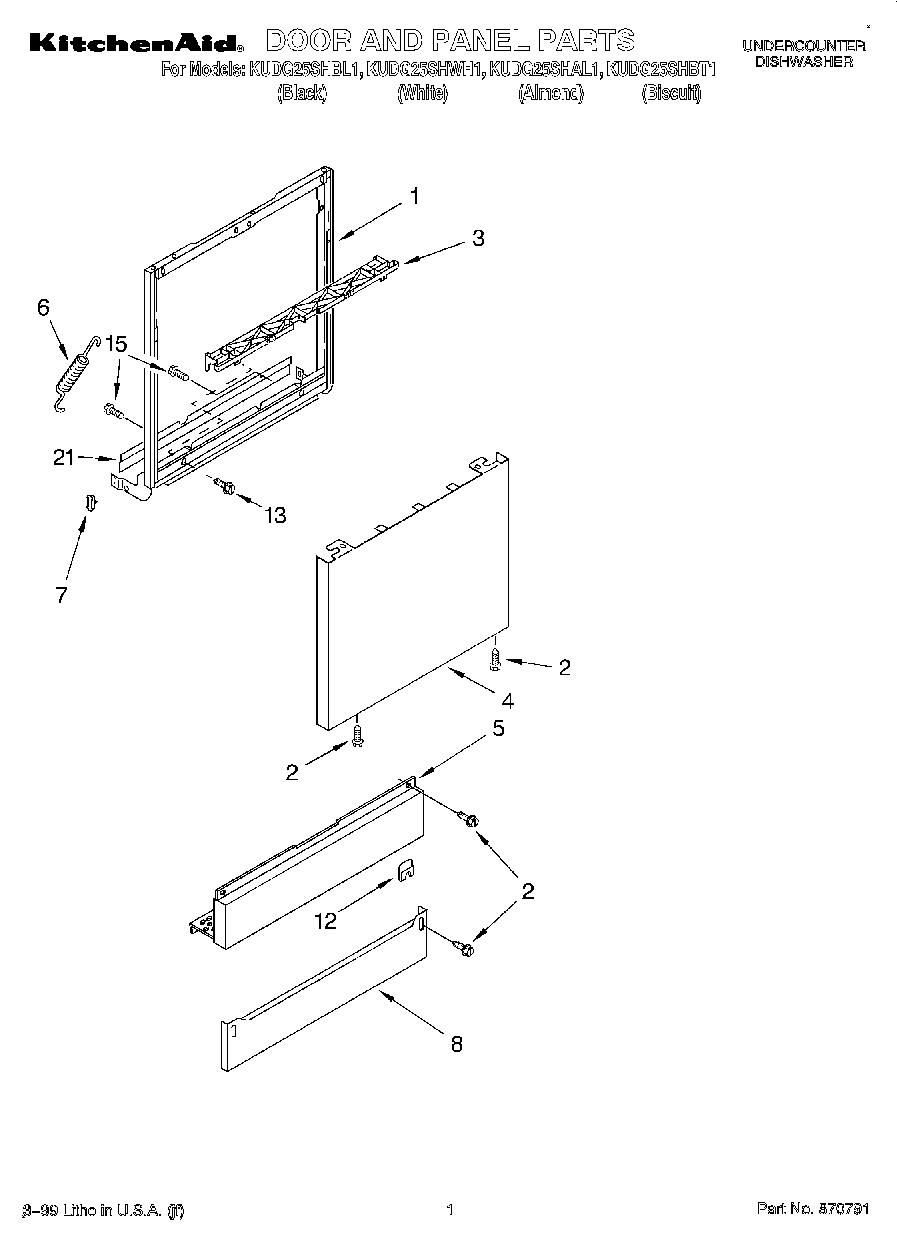

KUDG25SHBT1 01 – DOOR AND PANEL

Products

Position	Product
1	WP9743028 Whirlpool Dishwasher Frame
2	WP302868 Whirlpool Screw
3	Stiffener, Door
4	Panel Front (Almond Model)
4	Panel Front (Black Model)
4	Panel Front (White Model)
4	Panel, Front (Biscuit)
5	Access Panel & Clip Assembly (Includes Items 11 & 12) (Black Model)
5	Access Panel & Clip Assembly (Includes Items 11 & 12) (Almond Model)
5	Access Panel & Clip Assembly (Includes Items 11 & 12) (White Model)
5	Access Panel & Clip Assembly (Biscuit)
6	WP9743986 Whirlpool Spring
7	WP3373234 Whirlpool Dishwasher Bearing
8	Toe Panel (Includes Item 11) (Almond Model)
8	Toe Panel (Includes Item 11) (Biscuit)
8	WP3379921 Whirlpool Dishwasher Toe Panel
8	WP3379920 Whirlpool Dishwasher Toe Panel
12	Clip, Grounding
13	WP308685 Whirlpool Microwave Screw
15	WP488234 Whirlpool Air Conditioner Screw
21	Barrier, Lower vent
