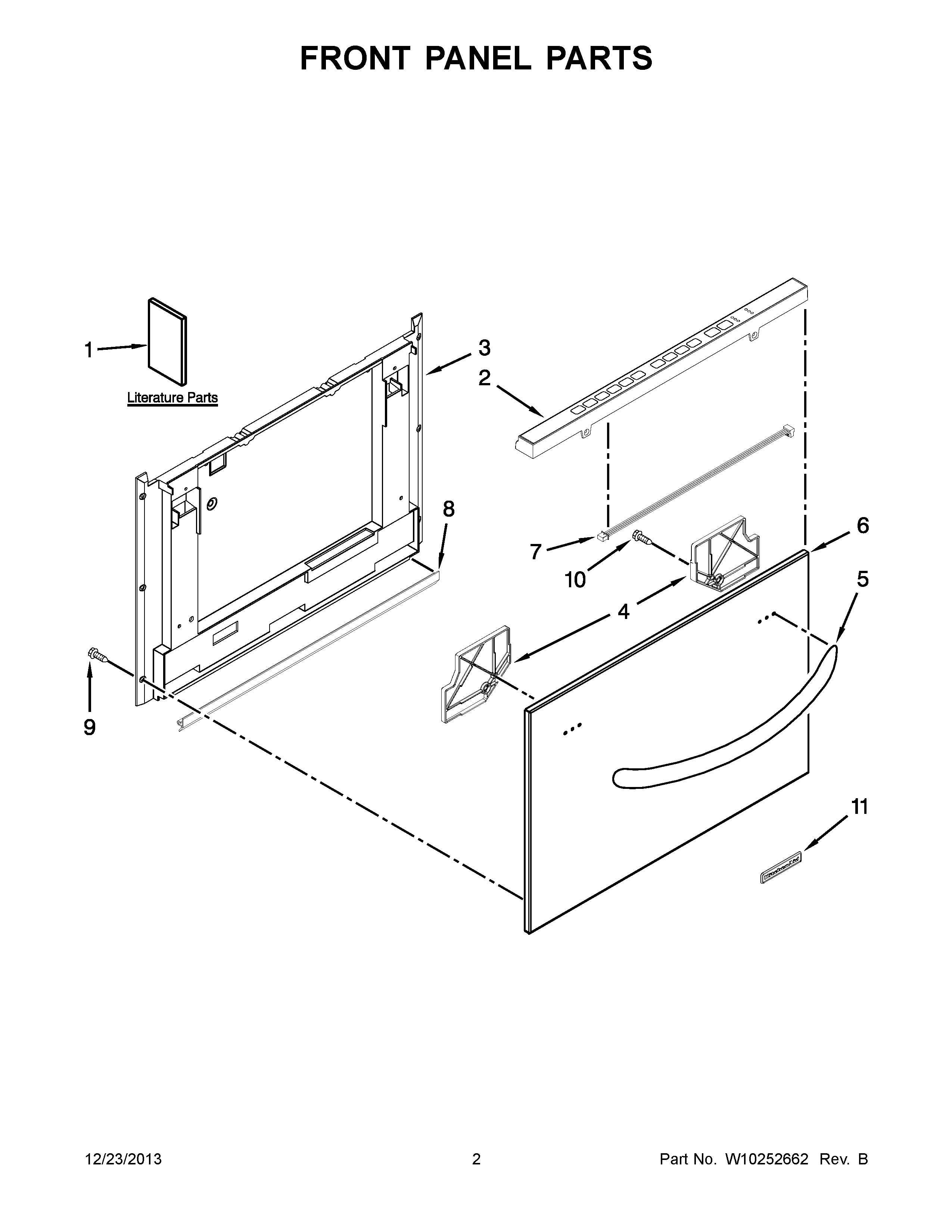

KUDH03DTBL0 02 – FRONT PANEL PARTS

KUDH03DTBL0 02 – FRONT PANEL PARTS

Written by

in

KUDH03DTBL0 02 – FRONT PANEL PARTS

Products

PositionProduct
1Instructions, Installation
1Energy Guide
2CONTROL PANEL (INCLUDES USER INTERFACE) (STAINLESS)
2CONTROL PANEL (INCLUDES USER INTERFACE) (BLACK)
399003750 Whirlpool Dishwasher Interior Panel
4Anchor Panel
5W10185045 Whirlpool Handle
5HANDLE (BLACK)
6PANEL, FRONT UPPER (BLACK)
6PANEL, FRONT UPPER (STAINLESS)
6PANEL, FRONT LOWER (ALSO ORDER ITEM 11) (STAINLESS)
6PANEL, FRONT LOWER (ALSO ORDER ITEM 11) (BLACK)
7W10117969 Whirlpool Dishwasher Wire Harness
8WPL 99003716
9WPY912620 Whirlpool Dishwasher Screw
10WPW10001180 Whirlpool Refrigerator Screw
11W10185040 Whirlpool Dishwasher Nameplate
