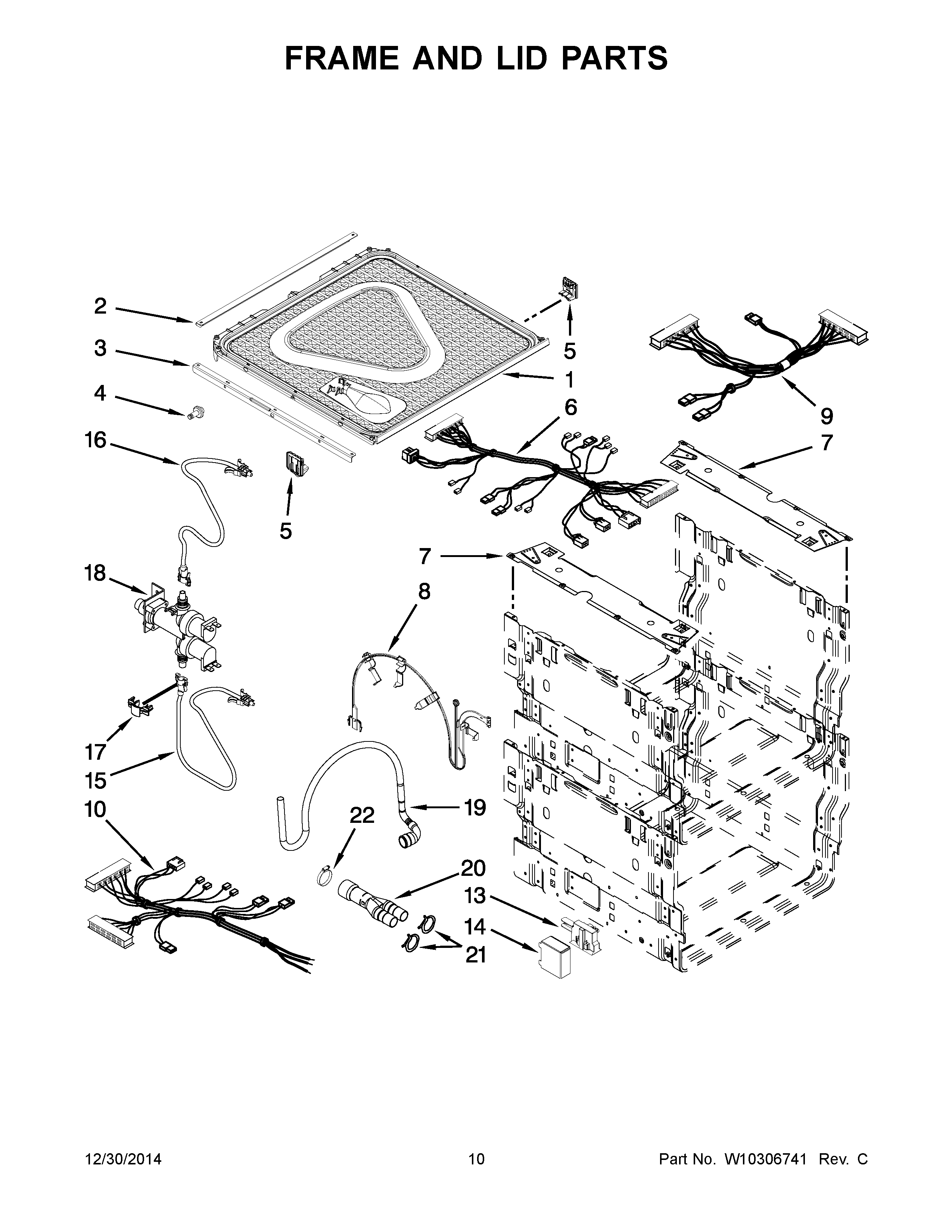

KUDH03DTBL2 06 – FRAME AND LID PARTS

KUDH03DTBL2 06 – FRAME AND LID PARTS

Written by

in

KUDH03DTBL2 06 – FRAME AND LID PARTS

Products

PositionProduct
1WP99003677 Whirlpool Dishwasher Lid
2WPY6920305 Whirlpool Dishwasher Bracket
399003722 Whirlpool Dishwasher Lid Bracket
499003724 Whirlpool Dishwasher Roller
5WPL 99003725
5AWPL 99003726
6WPL 99003706
7BRACE, TOP SIDE (UNDERCOUNTER MOUNTING BRACKET)
8WPW10166505 Whirlpool Dishwasher Retainer
999003710 Whirlpool Dishwasher Wire Harness
10WPL 99003709
13WPL 99003732
14COVER, UTILITY BOX
1599003766 Whirlpool Dishwasher Fill Hose
16WP99003765 Whirlpool Dishwasher Fill Hose
17W10189242 Whirlpool Dishwasher Retainer
18WPW10186746 Whirlpool Dishwasher Inlet Valve
19WPL 99003597
20WPL Y6919906
21WP616099 Whirlpool Clamp
22WP596669 Whirlpool Hose Clamp
