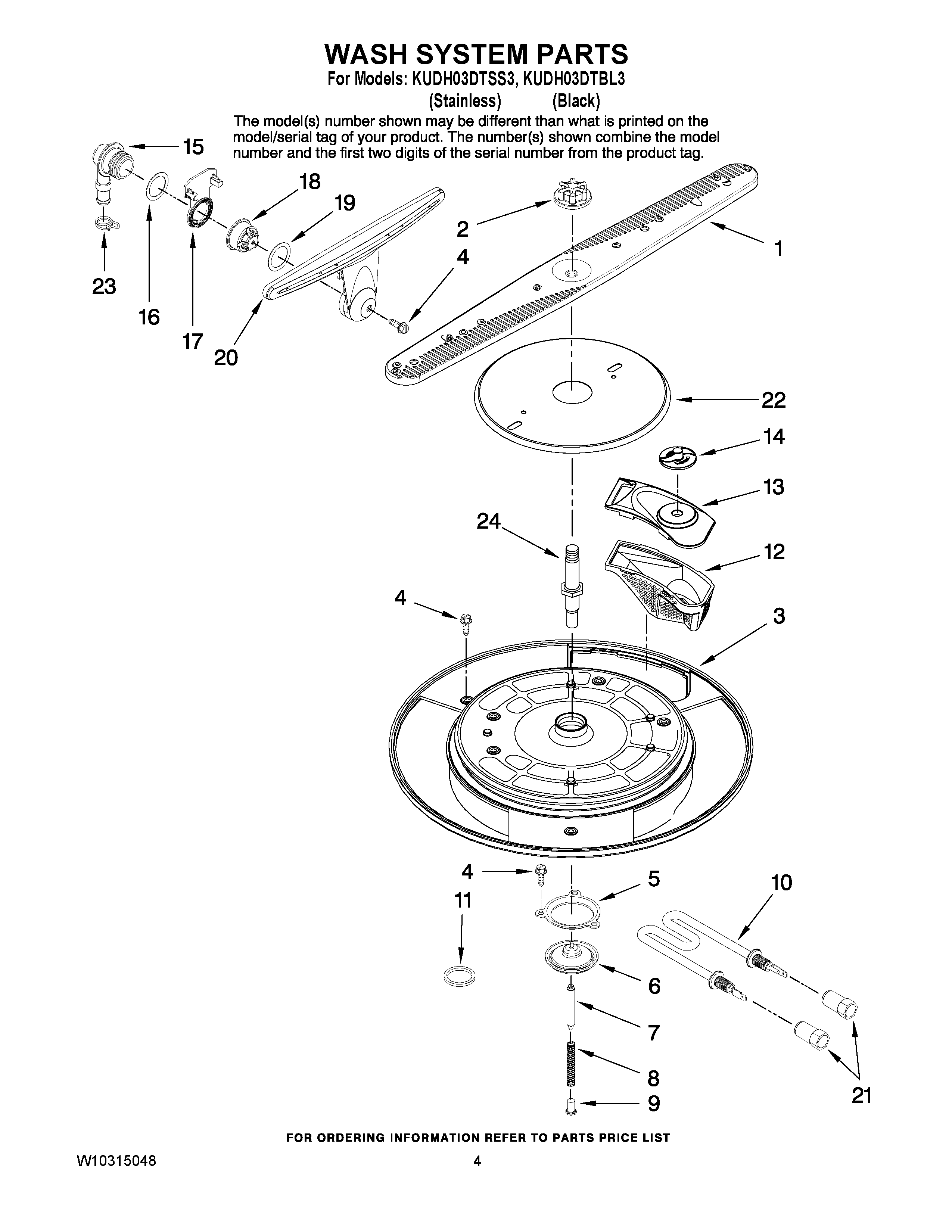

KUDH03DTBL3 03 – WASH SYSTEM PARTS

Products

Position	Product
1	W10118042 Whirlpool Dishwasher Spray Arm
3	FILTER FLOWPLATE ASSEMBLY
4	WPL Y6918536
5	WPL 99003720
6	WPL 99003692
7	WPL 99003772
8	WPL 99003774
9	6-920340 Whirlpool Dishwasher Filter
10	WPL 99003625
11	WPL Y6920320
12	WPL 99003777
13	99003776 Whirlpool Dishwasher Coarse Cup
14	WPL 99003778
15	Y6920170 Whirlpool Dishwasher Upper Manifold
16	WASHER
17	WPL Y6920354
18	WPL Y6920171
19	O-RING
20	W10162673 Whirlpool Dishwasher Manifold
21	WP6-920168 Whirlpool Dishwasher Heater Nut
22	WPL 99003704
23	WP596669 Whirlpool Hose Clamp
24	WPL 99003697
