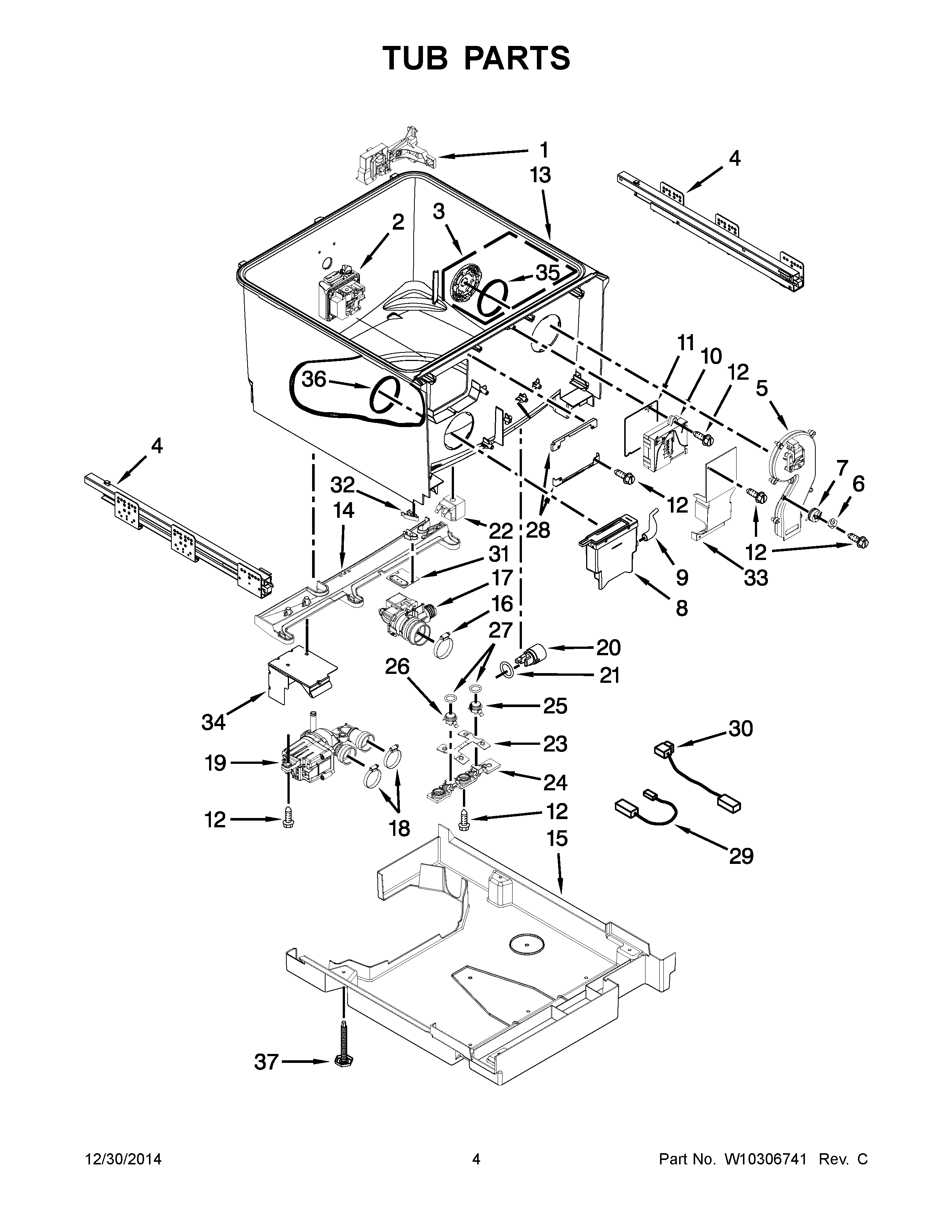

KUDH03DTSS2 03 – TUB PARTS

Products

Position	Product
1	WPW10162499 Whirlpool Dishwasher Latch Kit
2	DISPENSER
3	WP99003605 Whirlpool Inlet/Outlet Bezel
4	WP99003760 Whirlpool Dishwasher Right Hand Slide
4A	WP99003759 Whirlpool Dishwasher Left Hand Slide
5	WPW10155595 Whirlpool Dishwasher Fan Motor
6	99003696 Whirlpool Bracket
7	99003626 Whirlpool Dishwasher Power Switch
8	WP99003781 Whirlpool Dishwasher Air Inlet
9	99003694 Whirlpool Dishwasher Pressure Hose
10	WPW10252595 Whirlpool Dishwasher Electronic Control Board
11	PLATE, MCM ENCLOSURE
12	99003740 Whirlpool Screw Assembly
13	DRAWER, TUB
14	WPL Y6919650
15	WPL 99003714
16	WP616099 Whirlpool Clamp
17	WP6-920639 Whirlpool Dishwasher Drain Pump
19	WPL 99003730
20	WPW10120019 Whirlpool Dishwasher Sensor
21	99002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
22	WPL 99003773
23	WPL 99003727
24	WPL 99003701
25	99003624 Whirlpool Dishwasher Fuse
26	99003623 Whirlpool Dishwasher Thermostat
27	99001979 Whirlpool Dishwasher Pump Thermostat O-Ring
28	BRACKET, DISPENSER
29	99003705 Whirlpool Dishwasher Thermostat Wire
30	WPL 99003708
31	BRACKET, DRAIN PUMP
32	Catch, Drawer Release
33	WPL 99003758
34	SHIELD, MOTOR
35	WPL 99003715
36	WPW10286124 Whirlpool Dishwasher Seal
37	WPW10143258 Whirlpool Dishwasher Leg Leveler
