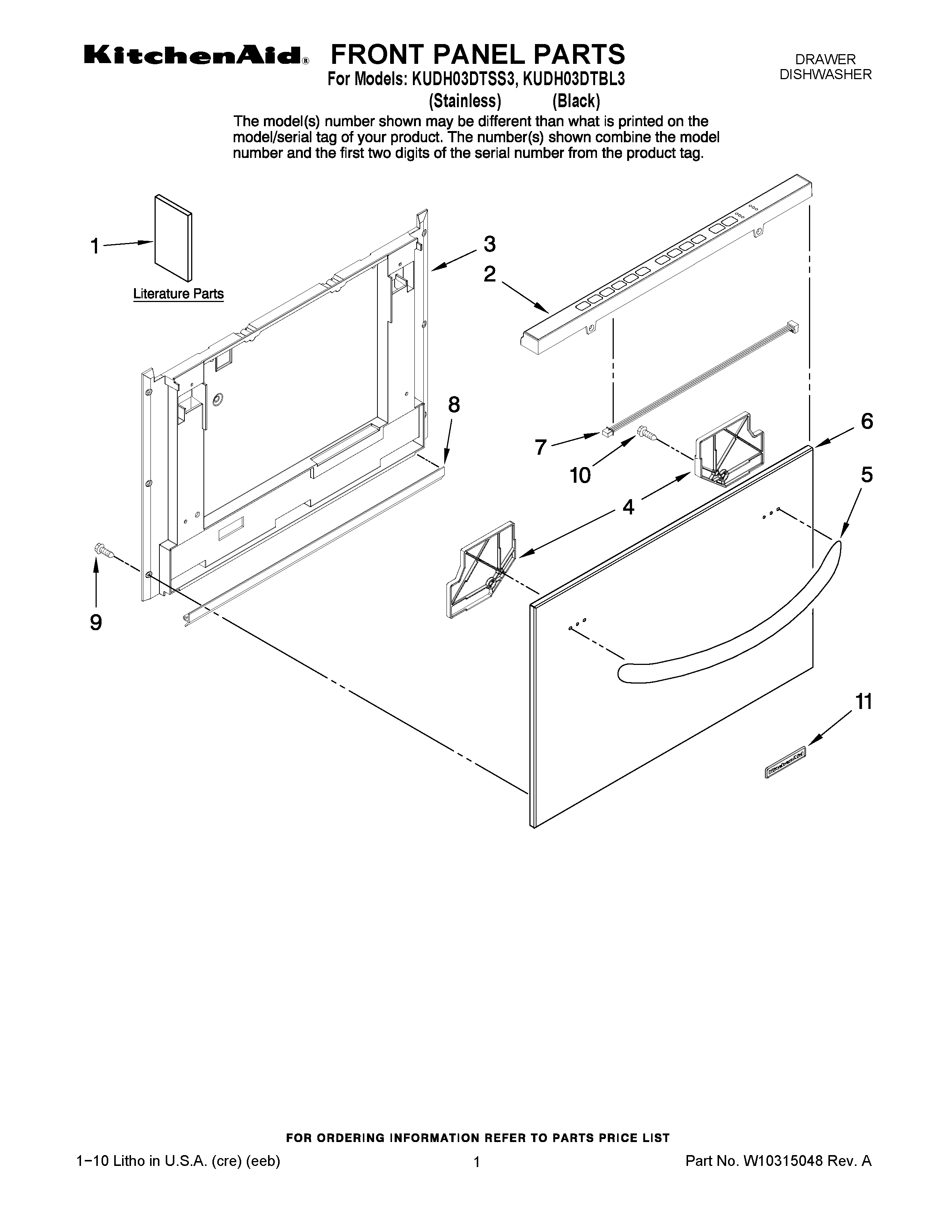

KUDH03DTSS3 01 – FRONT PANEL PARTS

KUDH03DTSS3 01 – FRONT PANEL PARTS

Written by

in

KUDH03DTSS3 01 – FRONT PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1INSTRUCTIONS, INSTALLATION
2WPL W10128552
2WPL W10128553
399003750 Whirlpool Dishwasher Interior Panel
4Anchor Panel
5W10185045 Whirlpool Handle
5HANDLE (BLACK)
6PANEL, FRONT LOWER (ALSO ORDER ITEM 11) (BLACK)
6PANEL, FRONT LOWER (ALSO ORDER ITEM 11) (STAINLESS)
6PANEL, FRONT UPPER (STAINLESS)
6PANEL, FRONT UPPER (BLACK)
7W10117969 Whirlpool Dishwasher Wire Harness
8WPL 99003716
9WPY912620 Whirlpool Dishwasher Screw
10WPW10001180 Whirlpool Refrigerator Screw
11NAMEPLATE (BLACK)
11NAMEPLATE (STAINLESS)
