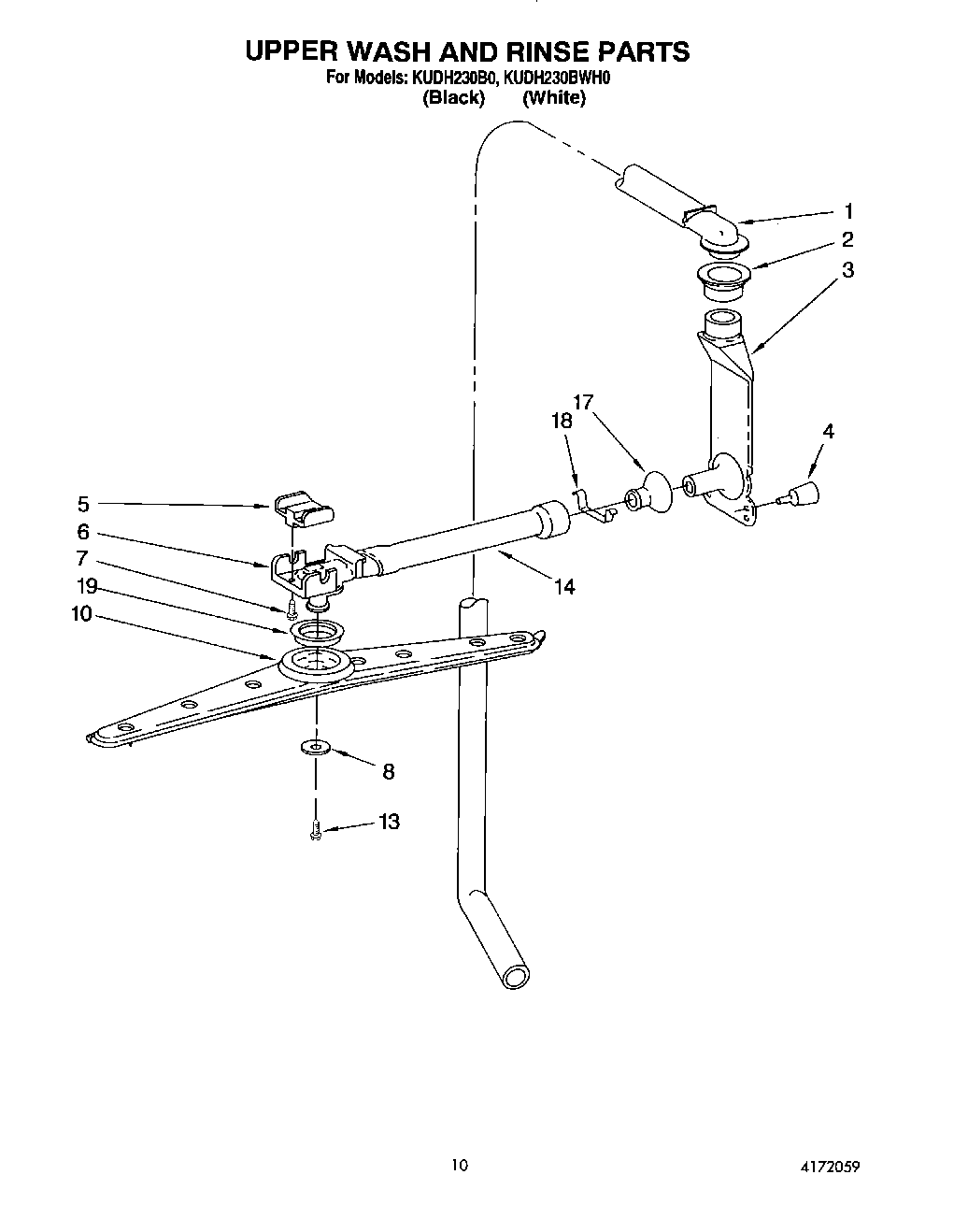

KUDH230BWH0 08 – UPPER WASH AND RINSE

Written by

Products

Position	Product
1	Tube & Connector Assembly
2	Connector, Vertical Conduit
3	Conduit, Vertical
4	Retainer, Conduit
5	Retainer, Manifold
6	Manifold, Upper Arm
8	Washer
10	Wash/Rinse Arm Assembly
13	Screw
14	Tube (Manifold to Receiver)
17	4171566 Whirlpool Dishwasher Receiver
18	Support, Receiver
19	Spacer, Upper Rack
