KUDH230BWH0 09 – FRAME AND TANK

KUDH230BWH0 09 – FRAME AND TANK

Written by

in

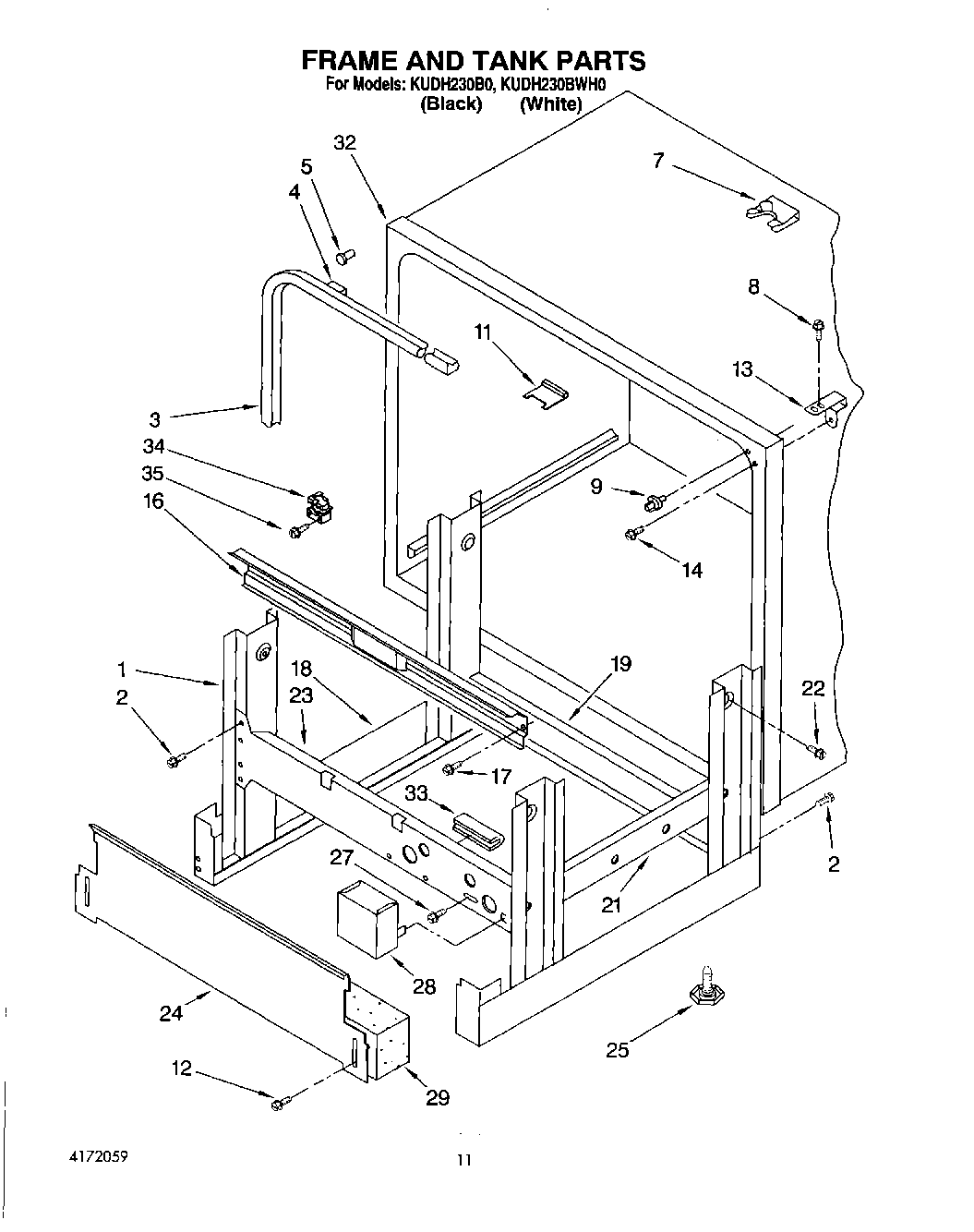

KUDH230BWH0 09 – FRAME AND TANK

Products

PositionProduct
1Short Frame Assembly (Includes Items 2, 18, 19, 21 & 23)
2Screw, 10-16 x 1/2
3Door Seal Assembly (Includes Item 4)
4Clip, Seal
5Bumper, Door
7Clip, Retainer
8WP308685 Whirlpool Microwave Screw
9Actuator, Interlock Switch
11Keeper, Latch
12Screw
13WP9741251 Whirlpool Mounting Bracket
14Screw, 7-19 x 1/2
16Support, Lower Panel
17Screw, 10-32 X 1/2
18Frame Assembly (L.H.)
19Cross Frame, Rear
21Frame Assembly (R.H.)
22Screw, 1/4-20 x 1/2
23Cross Frame, Front
24Kick Board ((Black))
24Kick Board ((White))
24Kick Board ((Almond))
25Foot, Leveling (4)
27Screw
28Enclosure, Elec. Supply
28SCREW
29Insulation
32Tank (Serviced Complete with Frame)
33Protector, Edge
34Relay, Start
35Screw, 8-18 x 1-1/4
