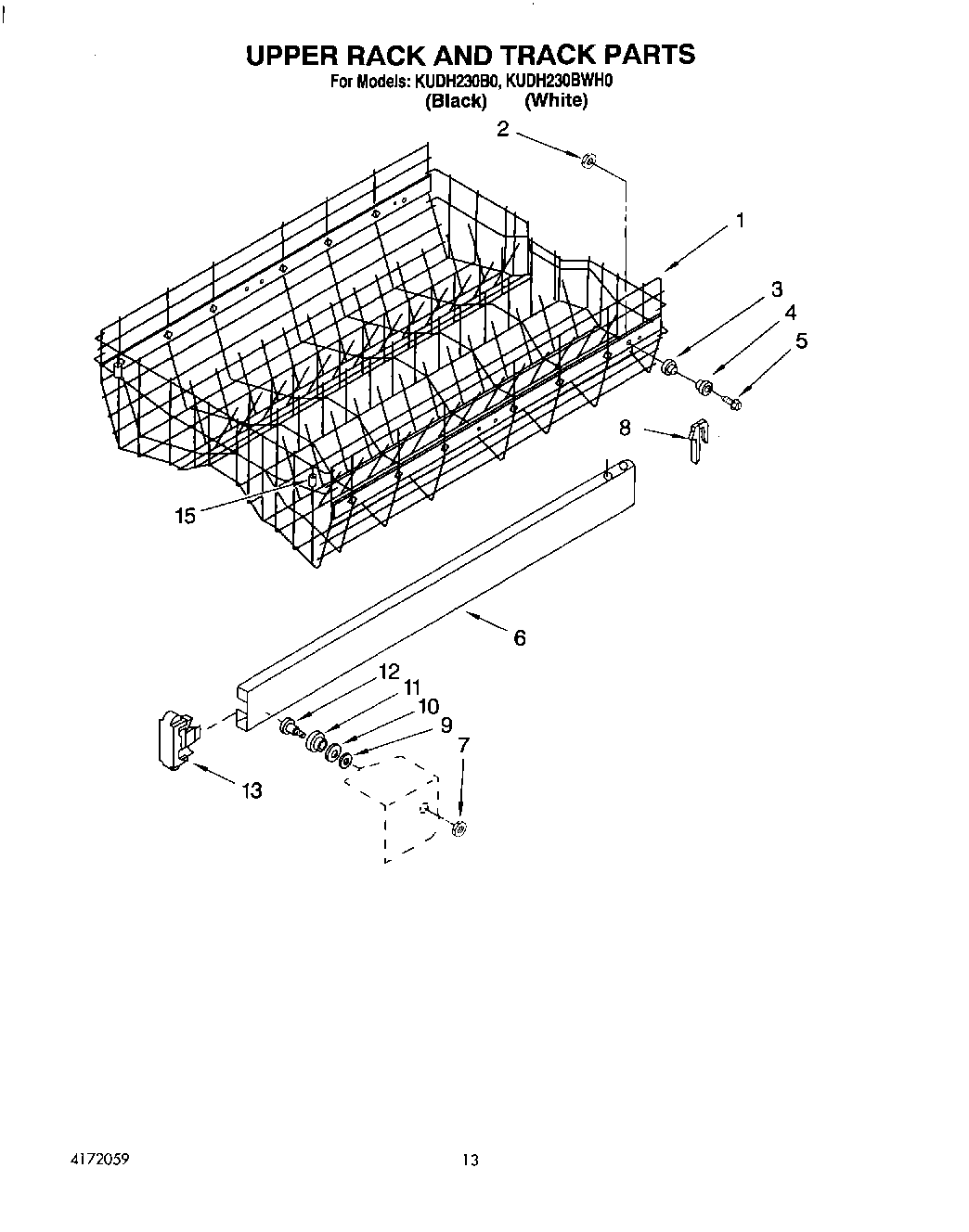

KUDH230BWH0 10 – UPPER RACK AND TRACK

Written by

Products

Position	Product
1	Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15)
2	Nut, Roller
3	Bearing & Spacer, Rack Roller
4	Roller, Upper Rack Track (4)
5	Screw
6	Track, Rack
7	Nut, Lock
8	Stop, Track (2)
9	Washer
10	Washer, Cup
11	Roller, Rack Track
12	Screw, Track Roller
13	Endcap, Front or Rear (2)
15	Bumper, Upper Rack
