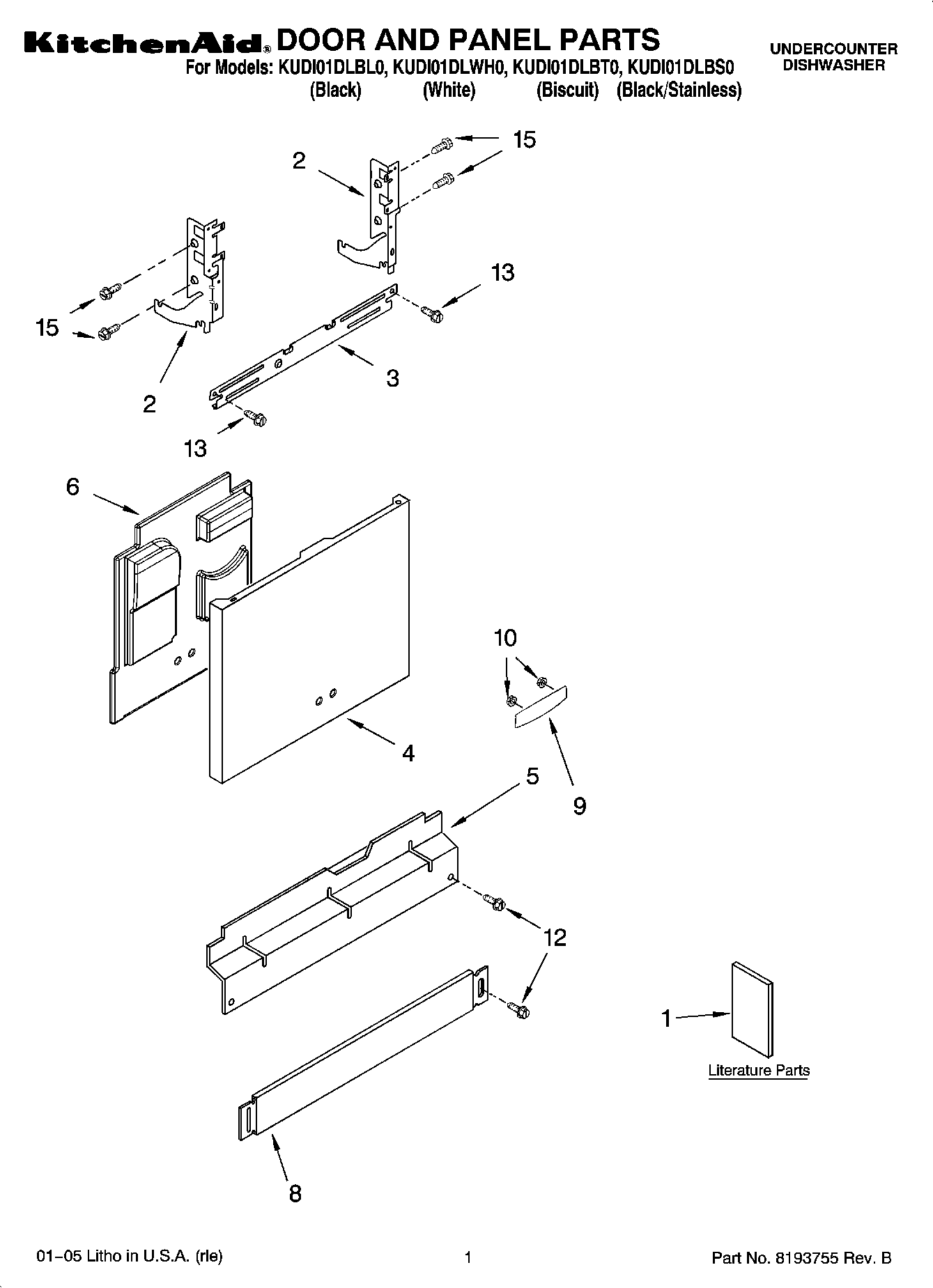

KUDI01DLBS0 01 – DOOR AND PANEL PARTSadmin2025-04-26T11:48:46+00:00KUDI01DLBS0 01 – DOOR AND PANEL PARTS ProductsPositionProduct1Literature Parts (Guide, Use & Care Tech Sheet)1Literature Parts (English/French)1Literature Parts (Guide, Energy)1Literature Parts (Instructions, Installation)2W11612302 Whirlpool Dishwasher Door Hinge2W11612303 Whirlpool Door Hinge3Stiffener, Door4Panel Front (Includes Item 6) (White)4Panel Front (Includes Item 6) (Black)4W10301577 Whirlpool Outer Door Panel4Panel Front (Includes Item 6) (Biscuit)5W10871198 Whirlpool Dishwasher Panel5W10909066 Whirlpool Dishwasher Panel5W10909064 Whirlpool Dishwasher Black Access Panel6Brace, Foam8Toe Panel (Biscuit)8WPW10586591 Whirlpool Dishwasher Toe Panel9Nameplate (White)9Nameplate (Black)9Nameplate (Biscuit)10WP2004333 Whirlpool Refrigerator Nut12WP302868 Whirlpool Screw12WPW10503549 Whirlpool Dishwasher Retainer Clip12WPW10503550 Whirlpool Dishwasher Retainer13WP489069 Whirlpool Compactor Screw15WP3400071 Whirlpool Screw
