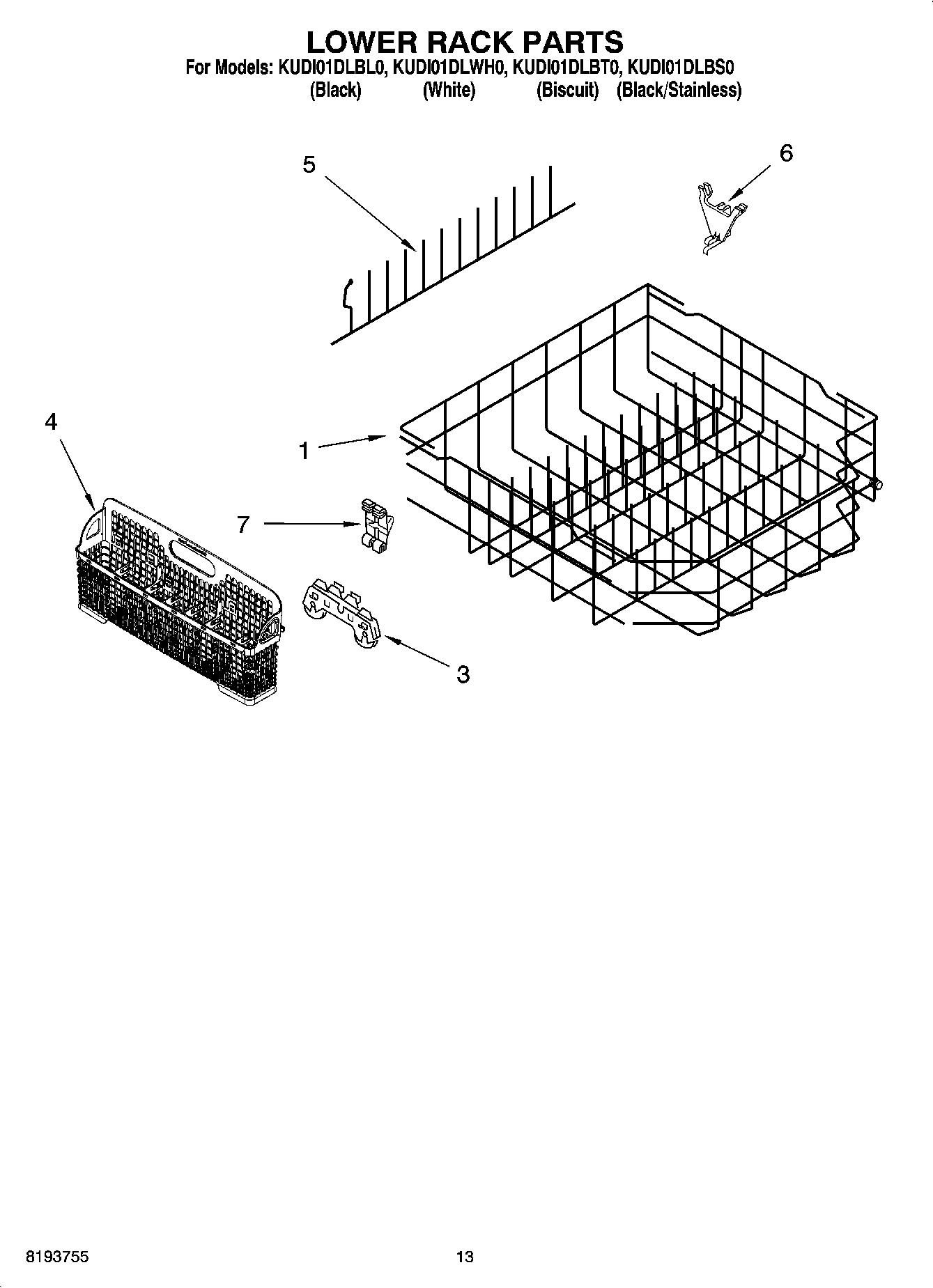

KUDI01DLBS0 11 – LOWER RACK PARTS

Written by

Products

Position	Product
1	W10728159 Whirlpool Dishwasher Lower Dishrack Assembly
3	WP8268713 Whirlpool Dishwasher Wheel
4	WP8531288 Whirlpool Silverware Basket
5	W10728160 Whirlpool Tine Assembly
6	WP8268523 Whirlpool Dishwasher Pivot Tine
7	WP8531314 Whirlpool Dishwasher Retainer
