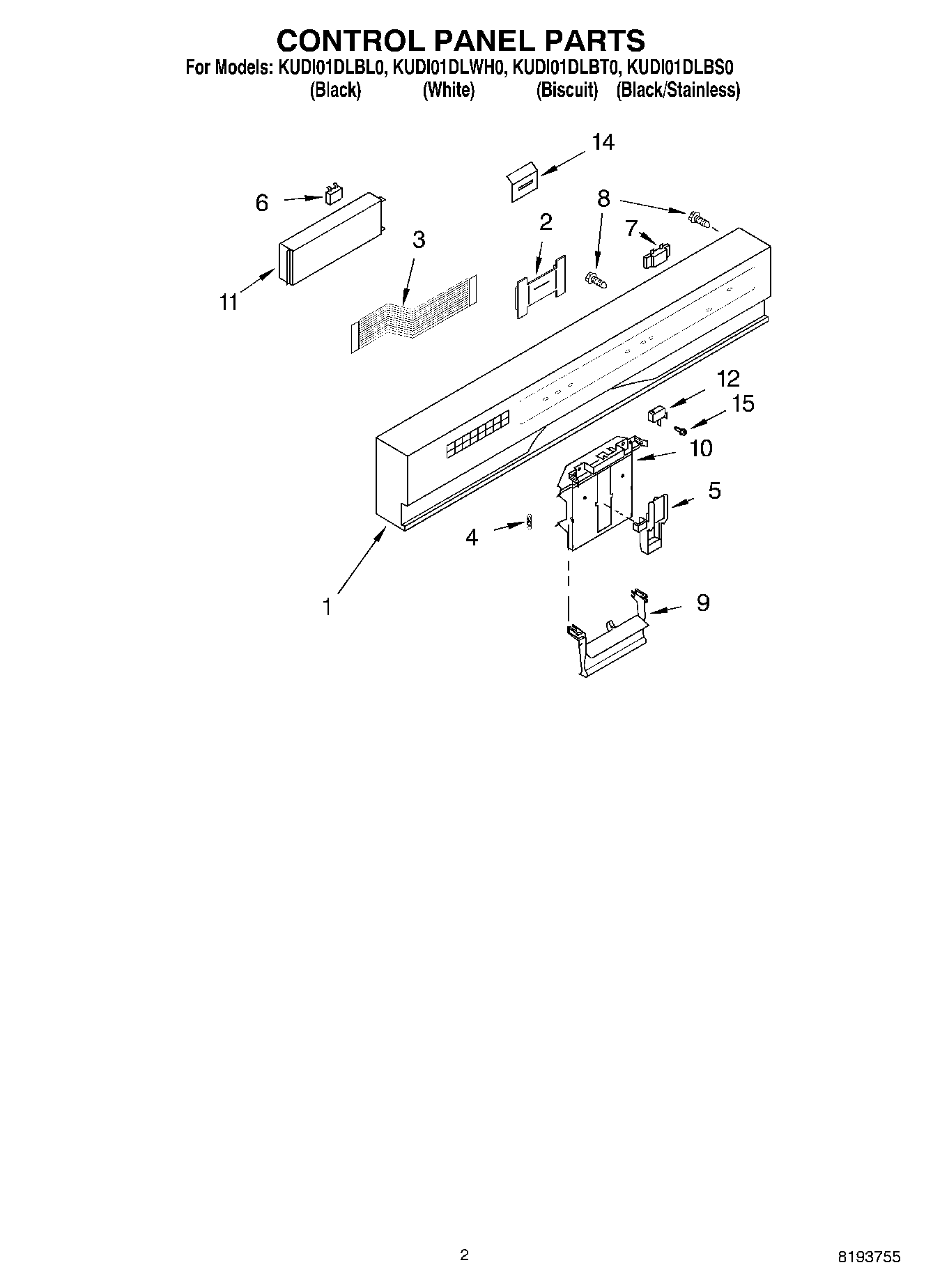

KUDI01DLSS0 02 – CONTROL PANEL

KUDI01DLSS0 02 – CONTROL PANEL

Written by

in

KUDI01DLSS0 02 – CONTROL PANEL

Products

PositionProduct
1Console Asm. Includes Active Overlay & Insert (Biscuit)
1Console Asm. Includes Active Overlay & Insert (White)
1Console Asm. Includes Active Overlay & Insert (Black)
2Interconnect
3Tail – Active Overlay
4WP8268540 Whirlpool Door Handle Spring
5WP8524471 Whirlpool Dishwasher Actuator
68193762 Whirlpool Fuse Kit
7WP8269206 Whirlpool Dishwasher Display
8WPW10348409 Whirlpool Screw
9WP8269117 Whirlpool Dishwasher Handle
108193882 Whirlpool Dishwasher Primary Latch Bolt
11Control, Electronic
12WP8269209 Whirlpool Door Switch
14Shield
15Screw
