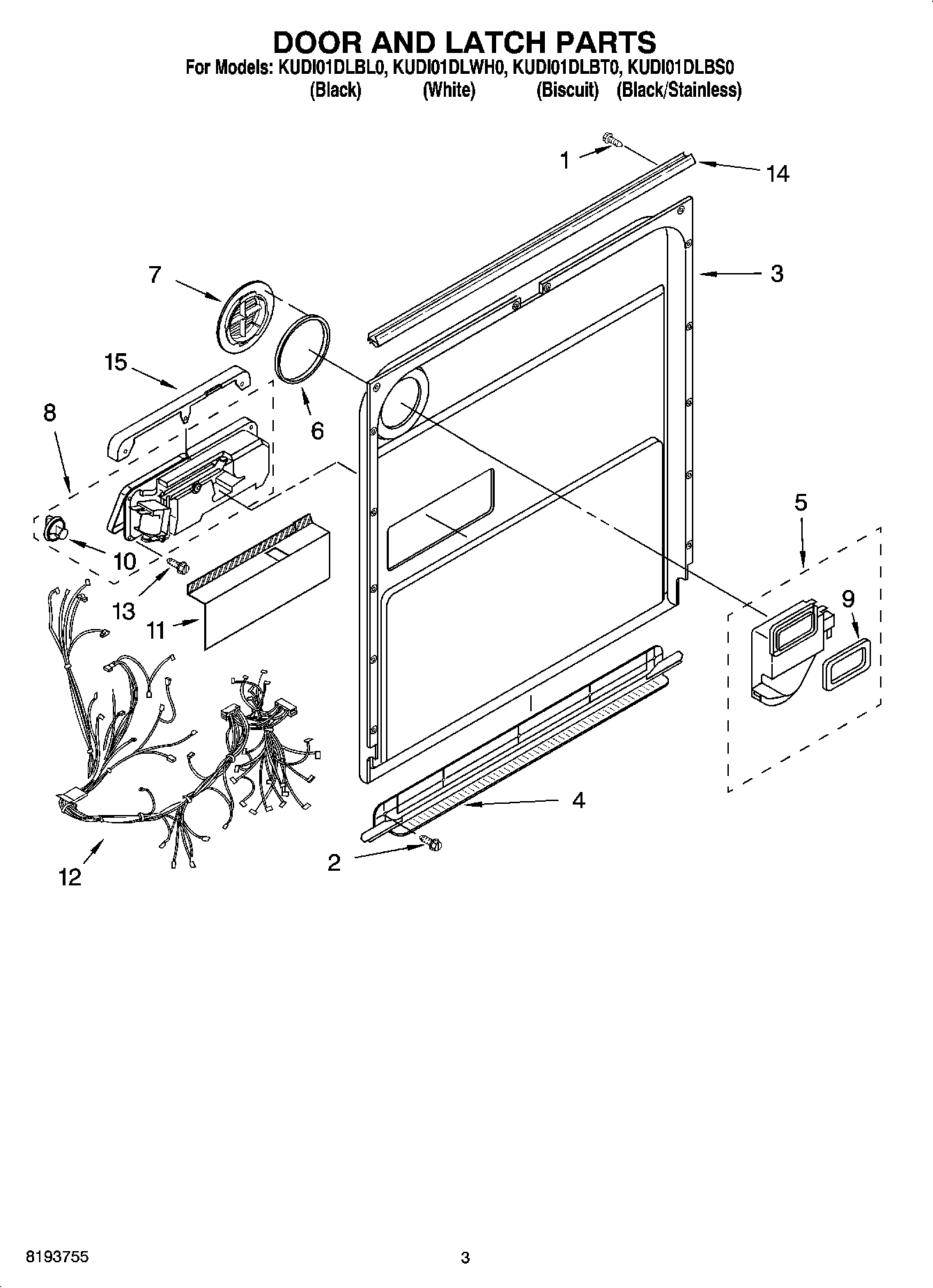

KUDI01DLWH0 03 – DOOR AND LATCH PARTS

KUDI01DLWH0 03 – DOOR AND LATCH PARTS

Written by

in

KUDI01DLWH0 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3Inner Door Mastic Assembly (Also Order Item 6)
4WP8268937 Whirlpool Dishwasher Air Inlet
5WP8545533 Whirlpool Dishwasher Vent
6WP8269259 Whirlpool Air Vent Gasket
7WP8545536 Whirlpool Dishwasher Deflector
8WP8558129 Whirlpool Dishwasher Detergent Dispenser
9WP8269258 Whirlpool Dishwasher Gasket
10WP8533380 Whirlpool Dishwasher Cap
11Shield, Dispenser
12Wiring Harness Main
13WPW10177098 Whirlpool Dishwasher Screw
14WP8535660 Whirlpool Dishwasher Seal
15WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
