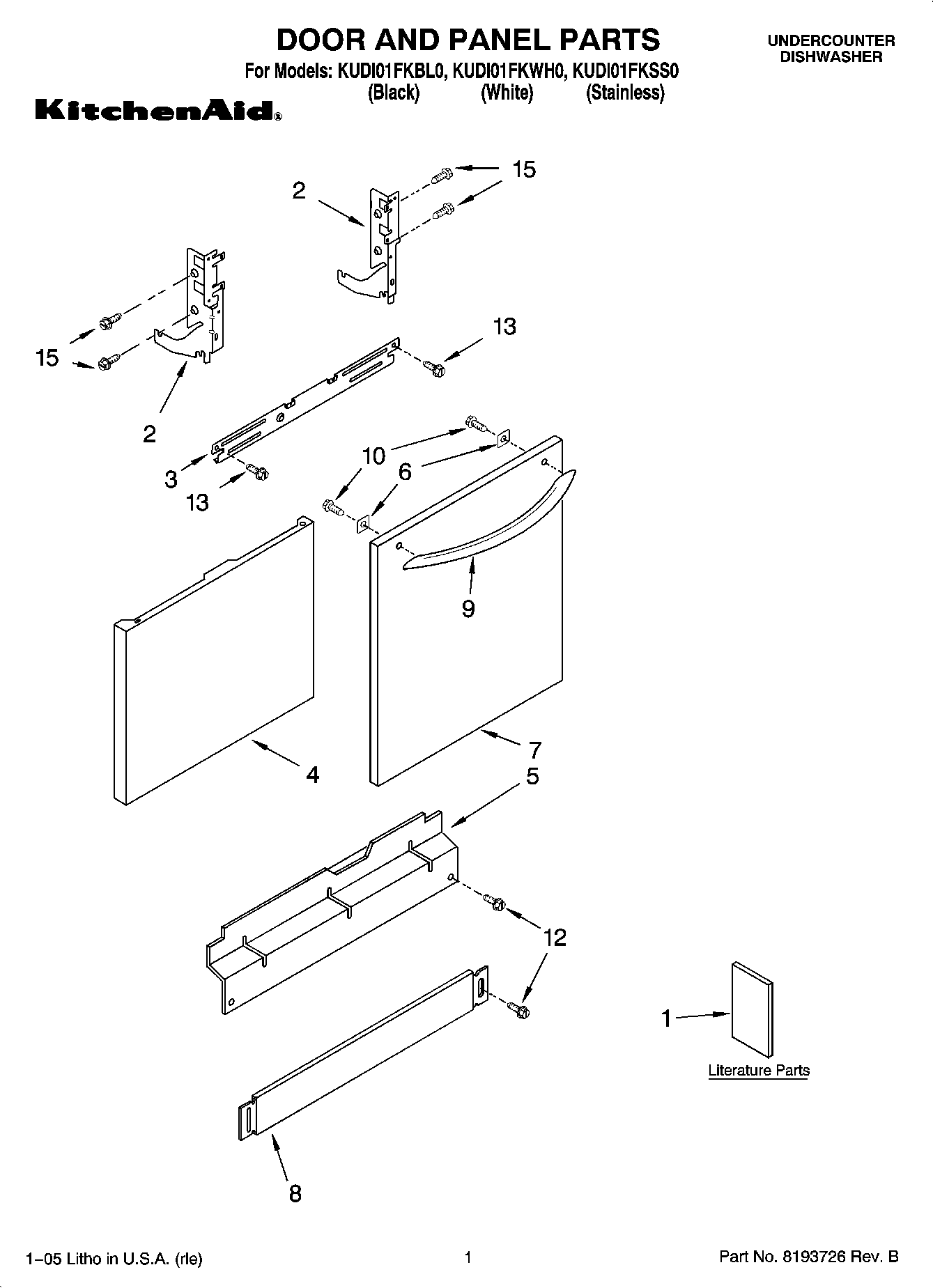

KUDI01FKBL0 01 – DOOR AND PANEL PARTSadmin2025-04-26T11:50:54+00:00KUDI01FKBL0 01 – DOOR AND PANEL PARTS
Products
| Position | Product |
|---|
| 1 | LITERATURE PARTS |
| 1 | Literature Parts (Instructions, Installation) |
| 1 | Literature Parts (Energy Guide) |
| 1 | Literature Parts (Guide, Use & Care) |
| 1 | Literature Parts (English) |
| 1 | Literature Parts (French) |
| 2 | W11612303 Whirlpool Door Hinge |
| 2 | W11612302 Whirlpool Dishwasher Door Hinge |
| 3 | Stiffener, Door |
| 4 | W11113792 Whirlpool Dishwasher Panel |
| 5 | W10909064 Whirlpool Dishwasher Black Access Panel |
| 5 | W10909066 Whirlpool Dishwasher Panel |
| 6 | Plate, Backing |
| 7 | Panel, Full Front (Black) |
| 7 | Panel, Full Front (White) |
| 7 | Panel, Full Front (Stainless) |
| 8 | WPW10586591 Whirlpool Dishwasher Toe Panel |
| 9 | Handle, Door (Black) |
| 9 | Handle, Door (White) |
| 9 | Handle, Door (Stainless) |
| 10 | Screw |
| 12 | WPW10503549 Whirlpool Dishwasher Retainer Clip |
| 12 | WP302868 Whirlpool Screw |
| 13 | WP489069 Whirlpool Compactor Screw |
| 15 | WP3400071 Whirlpool Screw |
