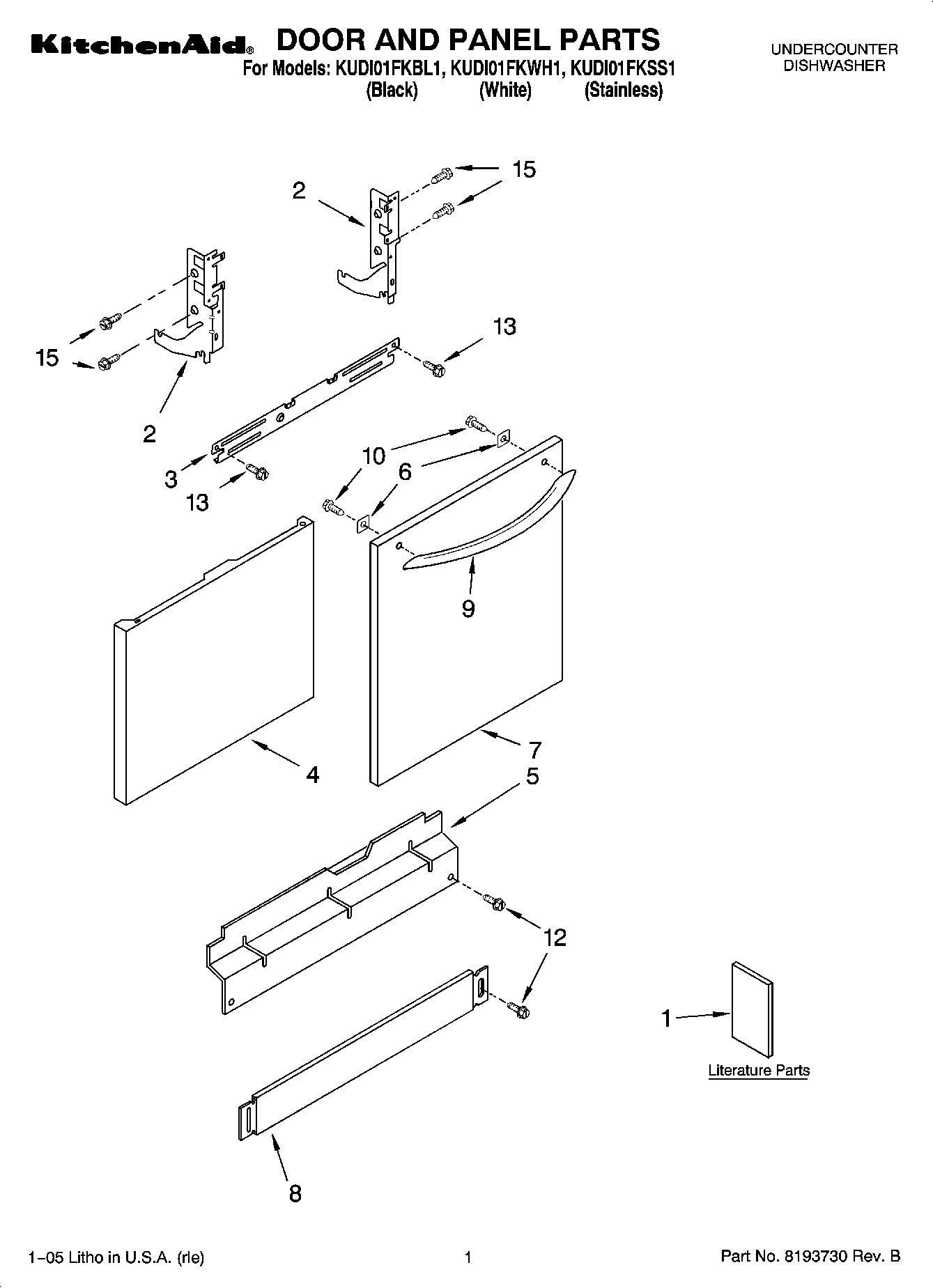

KUDI01FKWH1 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Literature Parts (Guide, Use & Care Tech Sheet)
1	Literature Parts (Energy Guide)
1	Literature Parts (English/French)
1	Literature Parts (Instructions, Installation)
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	Stiffener, Door
4	W11113792 Whirlpool Dishwasher Panel
5	W10909064 Whirlpool Dishwasher Black Access Panel
5	W10909066 Whirlpool Dishwasher Panel
6	Plate, Backing
7	Panel, Full Front (White)
7	Panel, Full Front (Stainless)
7	Panel, Full Front (Black)
8	WPW10586591 Whirlpool Dishwasher Toe Panel
9	Handle (Stainless)
9	Handle (White)
9	Handle (Black)
10	Screw
12	WP302868 Whirlpool Screw
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
13	WP489069 Whirlpool Compactor Screw
15	WP3400071 Whirlpool Screw
